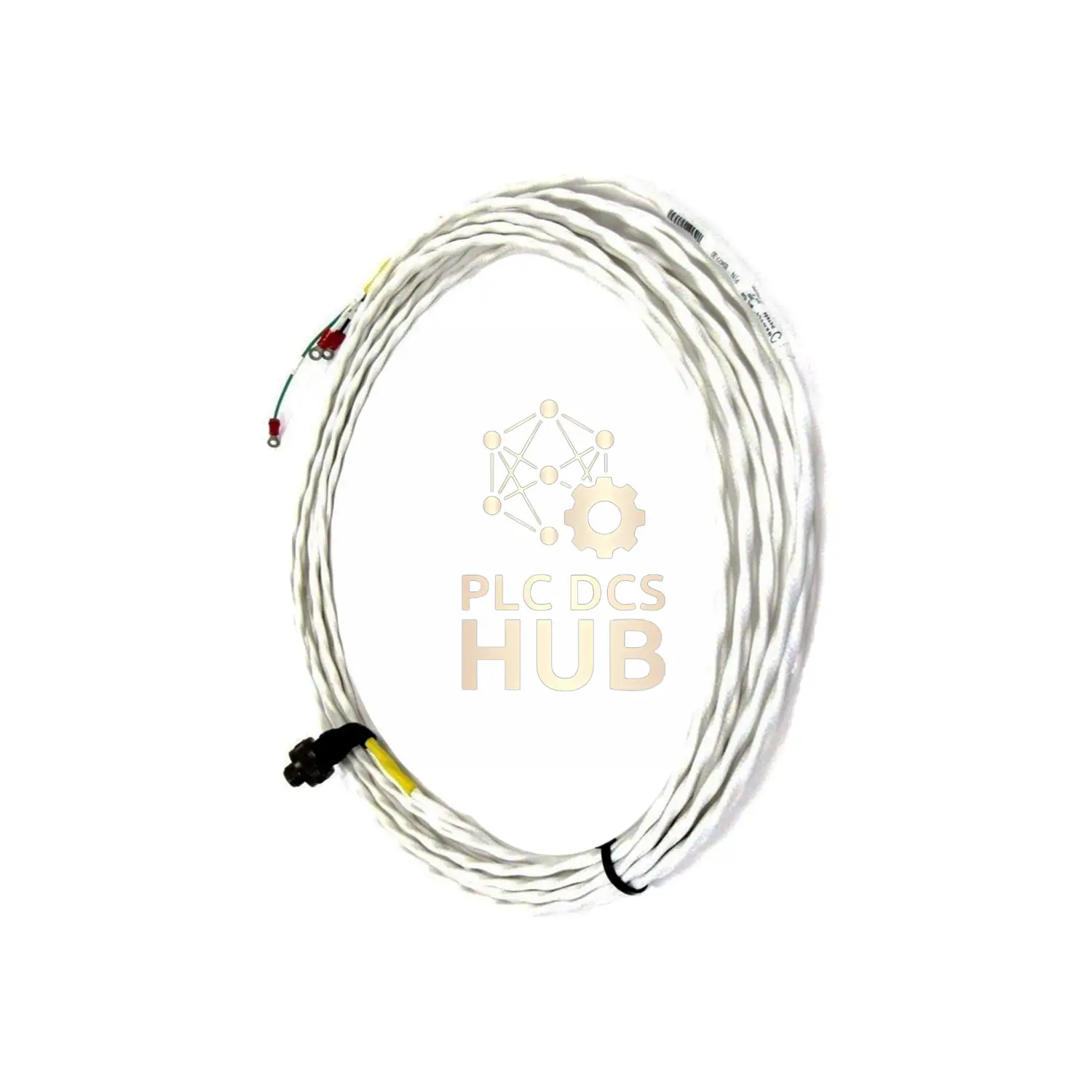

Bently Nevada 89477-33: 33ft Shielded Sensor Interconnect Cable
Product Description
Factory-new 33ft interconnect cable for industrial monitoring systems. Features EMI-shielded twisted pair conductors with right-angle plug and terminal connections. Perfect for medium-range equipment wiring in critical applications.
Key Specifications
- Brand: Bently Nevada
- Part No: 89477-33
- Length: 33 feet (10.1 meters)
- Conductor: 2×18 AWG twisted pair
- Shielding: 85% coverage braided copper
- Connector A: Right-angle dual-socket plug
- Connector B: Insulated ring terminals
- Voltage Rating: 250V AC/DC
- Temp Range: -30°C to 100°C
- Insulation: PVC jacket
Electrical Characteristics
- Max Current: 5A per conductor
- Insulation Resistance: >100 MΩ at 500V DC
- Capacitance: 18 pF/ft conductor-conductor
- Propagation Delay: 1.5 ns/ft
Installation Requirements
- Minimum bend radius: 2 inches
- Maximum pull tension: 25 lbs
- Ground shield at monitoring equipment end
- Maintain 6 inch separation from power cables
Environmental Ratings
- Ingress Protection: IP65 when connectors mated
- UV Resistance: 500+ hours sunlight exposure
- Oil Resistance: UL Oil Res I
- Flame Rating: UL VW-1
Packaging & Warranty
- Factory-sealed plastic reel packaging
- Terminal protectors included
- 12-month warranty
Shipping Information
- FedEx International Priority
- UPS Worldwide Expedited
- DHL Express
- Tracking provided for all shipments
Application Scenarios
- Pump vibration monitoring in refineries
- Conveyor bearing temperature sensors
- HVAC compressor monitoring
- Press motor speed detection
Frequently Asked Questions
Q: Can this cable be used outdoors?
A: Yes, when connectors are properly sealed against moisture
Q: What’s the difference between 89477-33 and 89477-35?
A: Only length – both have identical electrical specs
Q: Is the right-angle plug removable?
A: No, it’s permanently molded to the cable
Q: Compatible with 3500/42M systems?
A: Yes, designed for all Bently Nevada 3300/3500 series
