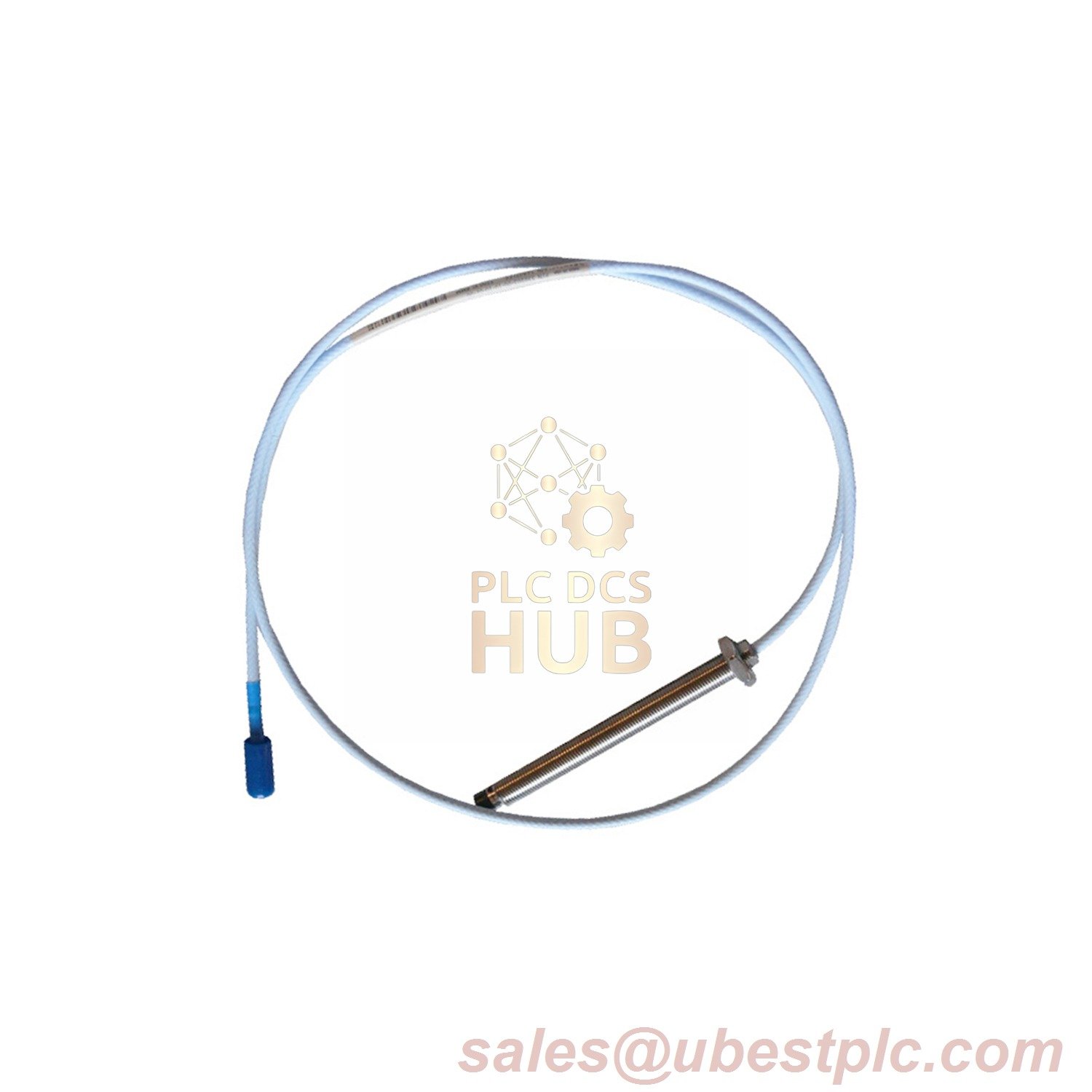

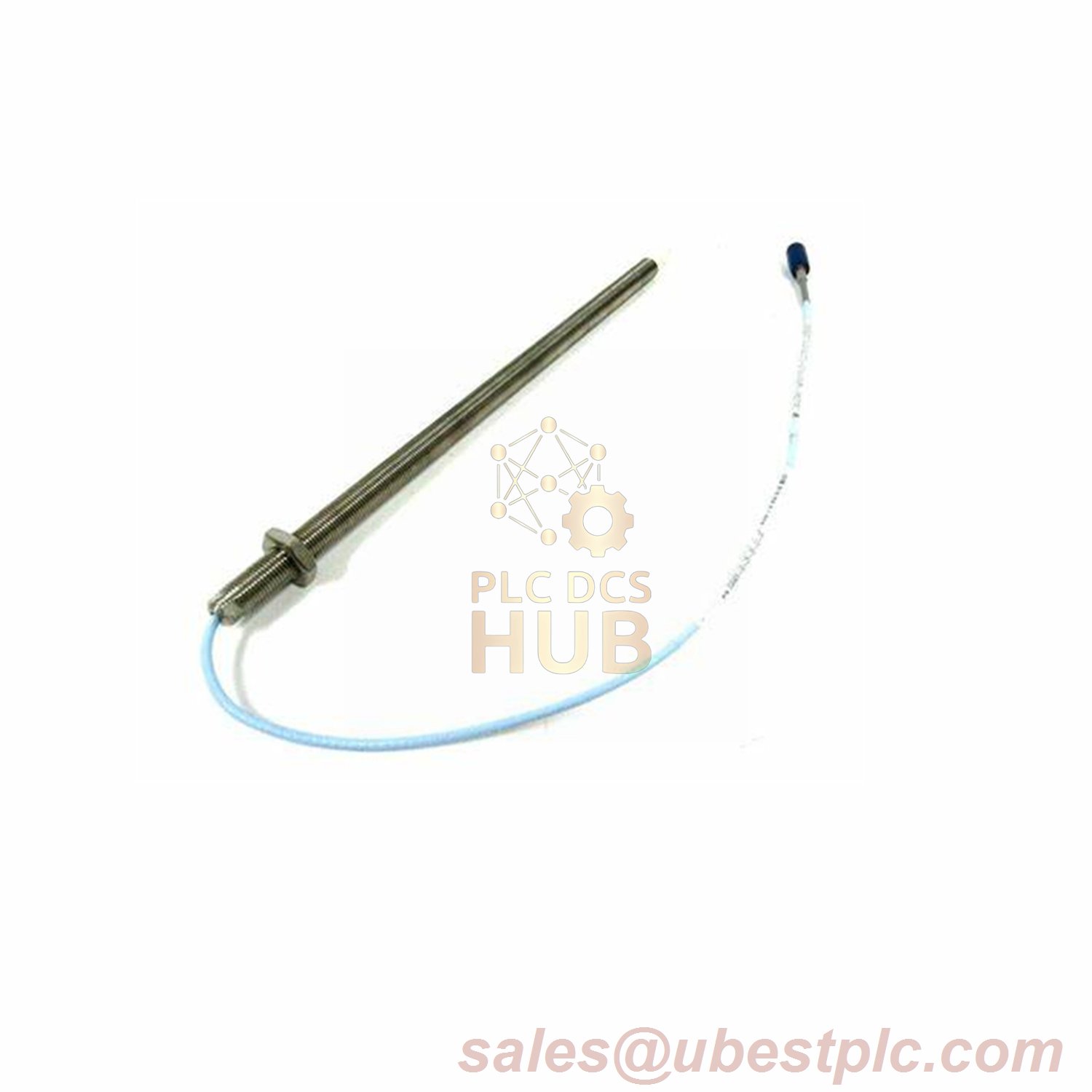

Bently Nevada NSv Proximity Probe 330905-00-02-10-02-05

Bently Nevada-logo
Categories: , , , , , , , , SKU: 330905-00-02-10-02-05 Tag:

$241.00 $526.00

0 reviews

Reviews Summary by AI:

12 in stock

Description

Bently Nevada 3300 NSv Proximity Probe

New & Original with 12-month factory warranty. 330905-00-02-10-02-05 features a 20mm ultra-compact case, 1.0-meter armored cable, and Viton® O-ring sealing. Engineered for precision vibration monitoring in hazardous environments, it replaces legacy 3300 RAM probes with enhanced chemical resistance and side-view performance.

Technical Specifications

ParameterDetails
Part Number330905-00-02-10-02-05
Suffix Code Breakdown
  • 00: 0mm unthreaded (full M10X1 threads)
  • 02: 20mm case length
  • 10: 1.0m FEP-insulated triaxial cable
  • 02: ClickLoc™ connector
  • 05: CSA/ATEX/IECEx certifications
Electrical
  • DC Resistance: 4.2Ω ±0.5 (1.0m cable)
  • Scale Factor: 7.87 V/mm (+12.5%/-20% tolerance)
  • Frequency Response: 0–10 kHz (±3dB)
Mechanical
  • Tip Material: PPS polymer (chemically inert)
  • Case: AISI 304 SST with M10X1 armored threads
  • Max Torque: 33.9 N·m (300 in·lb)
  • Bend Radius: ≥25.4mm (1.0″)
Environmental
  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton® O-ring (avoid sustained < -34°C)
  • Min Target Size: 8.9mm diameter (13mm recommended)

Compliance & Installation

  • Field Wiring: Max 305m (1,000 ft) shielded triad cable (16–24 AWG).
  • Gap Setting: 1.0mm (40 mils) for linear output (-1 to -13 Vdc).
  • Pressure Testing: Available on request for critical applications.

Contact Us: For COO or technical support, email sales@ubestplc.com.

Additional information

Weight0.15 kg
Dimensions300 × 330 × 60 mm
