Description

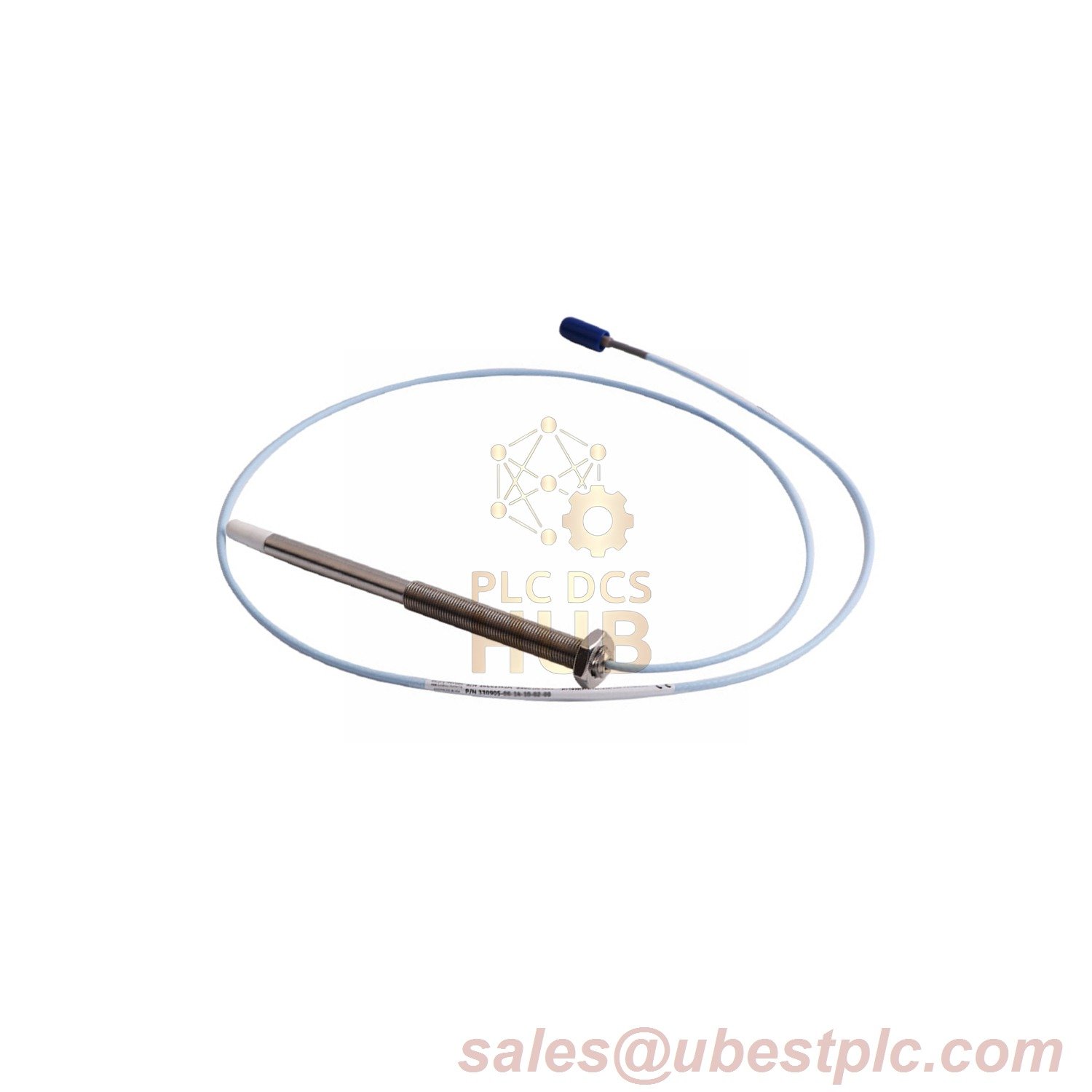

Bently Nevada 3300 NSv Proximity Probe (Model: 330905-00-15-05-02-05)
Product Overview
The 330905-00-15-05-02-05 is a multi-certified industrial probe with 150mm stainless steel case and 0.5m armored cable. Certified for ATEX/CSA/IECEx standards, it operates in extreme conditions from -52°C to +177°C, delivering precise vibration monitoring for compressors and turbines in hazardous areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number Code | 00(Full Thread)-15(150mm Case)-05(0.5m)-02(ClickLoc)-05(Multi-Cert) |
| DC Resistance | 4.0Ω ±0.5 @ 0.5m |
| Linear Range | 0.25–1.75mm (±0.06mm) |
| Frequency Response | 0-10 kHz (±3dB) |
| Case Material | AISI 304 Stainless Steel |
| Pressure Rating | 10 bar (Viton® O-ring) |
Key Features
- 50% deeper installation capability vs standard probes
- Gold-plated ClickLoc connectors with anti-vibration lock
- PPS tip resists H₂S corrosion up to 15,000 ppm
Industrial Applications
- Offshore gas compressors (Zone 1)
- Power plant steam turbines
- Chemical processing reactors
Contact Support
For certification documents and lead times:
