Product Overview

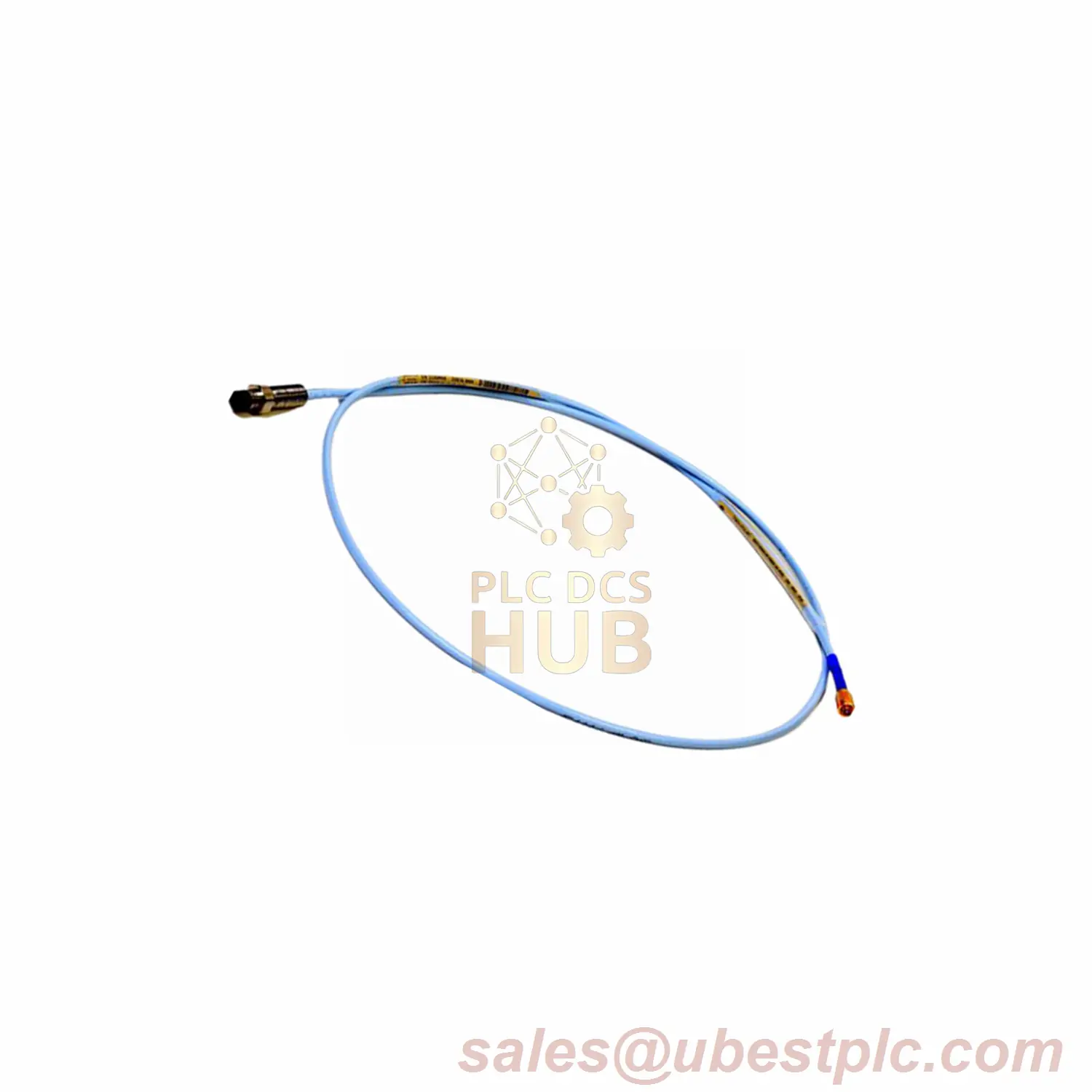

The Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330104-00-12-05-02-CN) delivers reliable vibration and position sensing for industrial automation. Built with a stainless steel case and PPS tip, it withstands harsh conditions. Features country-specific approvals (CN) for compliance.
Key Specifications
- Brand/Model:
- Bently Nevada 330104-00-12-05-02-CN
- Suffix Breakdown:
- Unthreaded Length: 00mm | Case Length: 12mm | Cable: 0.5m | Connector: ClickLoc | Approval: CN
- Electrical:
- Voltage: -17.5 to -26 Vdc | Output Resistance: 50Ω | Sensitivity: <2mV/V
- Mechanical:
- Probe Resistance: 7.45Ω ±0.50 (0.5m) | Temp Range: +18°C to +27°C
- Certifications:
- Meets country-specific safety standards (CN option)
Industrial Applications
- Steam turbine health monitoring in power plants
- Bearing condition tracking in mining conveyor systems
- Shaft alignment verification for water treatment pumps
Installation Notes
Use M10x1 threaded mounts for secure attachment. Works with 3300 XL 8mm Proximitor systems. For best results, pair with AISI 4140 steel targets at 1.27mm gap.
Package Includes
- 8mm proximity probe
- 0.5m standard cable
- ClickLoc connector
- Viton® O-ring seals
Warranty:
1-year limited warranty against defects
Automation Keywords
Industrial vibration sensors, predictive maintenance systems, rotating machinery monitoring, process control instrumentation, oil and gas pipeline monitoring
Contact: sales@ubestplc.com for technical support
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
