Description

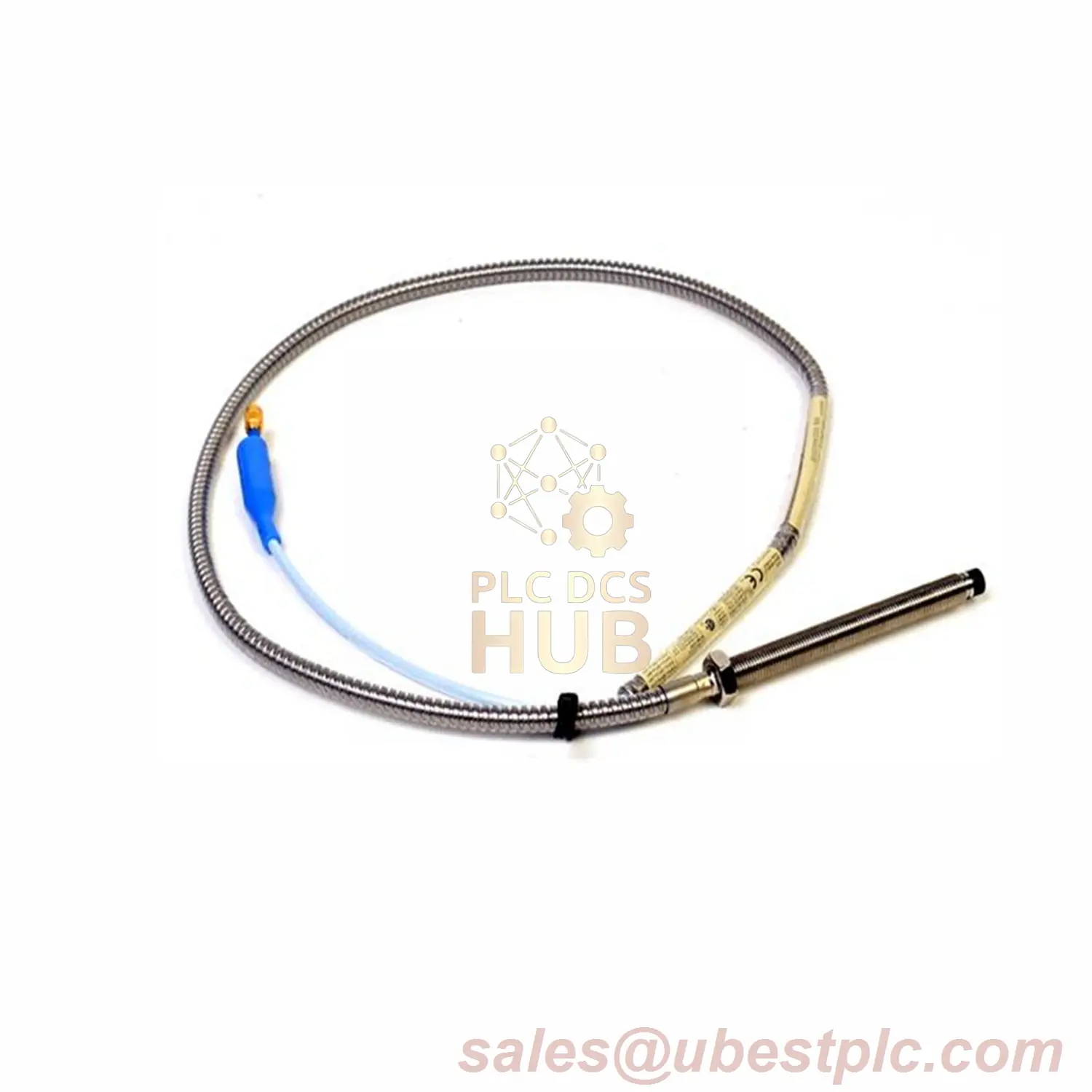

Bently Nevada 3300 XL 8 mm Proximity Probe 330103-00-09-05-02-00
Model: 330103-00-09-05-02-00
Configuration Key
- 330103: 8 mm Probe, M10x1 Thread (No Armor)
- 00: Unthreaded Length = 0 mm
- 09: Case Length = 90 mm
- 05: Cable = 0.5 m (1.6 ft)
- 02: ClickLoc Miniature Connector
- 00: No Agency Approval Required
Core Specifications
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Output Signal: Linear -1 to -17 Vdc
- DC Resistance: 7.45 Ω ±0.50 @ 0.5 m
- Temperature Limits:
- Standard: -52°C to +177°C
- Extended: +260°C (Cable)
Mechanical & Environmental
- Thread: M10x1 (15 mm Max Engagement)
- Weight: 323 g/m (11.4 oz)
- Humidity Resistance: <3% ASF drift @ 93% RH (IEC 68-2-3)
- Pressure Seal: Viton® O-ring (custom testing available)
Industrial Use Cases
- Hydraulic Power Units: Monitors pump shaft vibration in high-pressure oil systems (0.5 m cable for tight spaces).
- Paper Mill Dryers: Operates in steam-filled environments up to +150°C with 90 mm case stability.
Compatibility Notes
- Wiring: 16–24 AWG shielded triad cable (max 305 m)
- Safety: Compatible with non-incendive (nA/ec) systems per local standards.
Contact: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
