Core Product Details

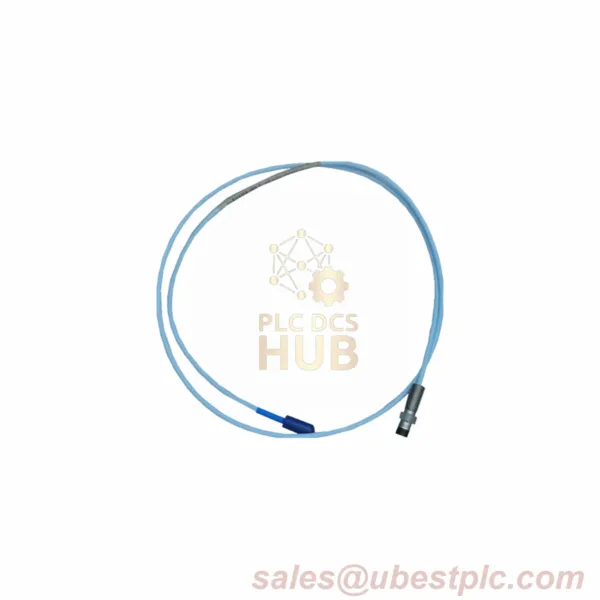

Bently Nevada 3300 NSv Proximity Probe 330905-00-03-10-02-05 – Brand New, Factory-Sealed with 12-Month Warranty. Optimized for industrial applications requiring enhanced chemical resistance and 30 mm compact case length.
Configuration Breakdown
- Part Number: 330905-00-03-10-02-05
- Case Design: M10X1 Thread | 30 mm Overall Length | 15 mm Thread Engagement
- Electrical Profile: 4.2Ω ±0.5 Resistance | 0.220 Ω/m Center Conductor
- Dynamic Range: 1.5 mm Linear (±0.06 mm DSL) | 7.87 V/mm ISF
Critical Performance Metrics
| Mechanical Limits | 0.56 N•m Max Torque | 25.4 mm Bend Radius |
| Environmental | -52°C to +177°C Operation | Viton O-Ring Pressure Seal |
| Compatibility | Direct Replacement for 3300 RAM Probes |
Extended Technical Specifications
▪ Field Wiring: 305 m Max Length | 0.2-1.5 mm² Triad Shielded
▪ Target Optimization: 13 mm Min Diameter | 1.0 mm Gap Recommended
▪ Frequency Response: 0-10 kHz (±3 dB) with Full 305 m Wiring
▪ Material Integrity: PPS Probe Tip | 304 SST Housing | FEP Insulation
Certifications & Support
▪ Global Approvals: Multiple Agency Certifications (-05 Suffix)
▪ Custom Testing: Pressure Seal Validation Available on Request
