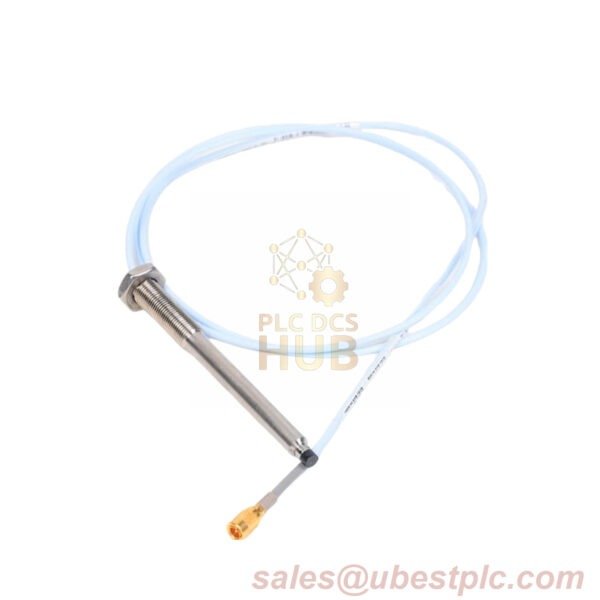

The Bently Nevada 330905-00-08-10-01-00 is a 3300 NSv Proximity Probe designed for compact installations requiring connector protection. Featuring an 80 mm (3.15″) stainless steel case and 1.0 m (39″) armored cable, this probe delivers reliable vibration monitoring in general industrial environments. Its ClickLoc™ connector with protective boot ensures durability in high-vibration applications while maintaining backward compatibility with legacy 3300 RAM systems.
Technical Specifications
- Model: 330905-00-08-10-01-00
- Suffix Code Breakdown:
- -00: 0 mm unthreaded length (fully threaded)
- -08: 80 mm (3.15″) case length
- -10: 1.0 m (39″) cable length
- -01: ClickLoc™ connector with protective boot
- -00: No agency certifications required
- Electrical:
- DC Resistance: 4.0 Ω ±0.5 (0.5m length*)
- Linear Range: 1.5 mm (60 mils) | Gap: 1.0 mm (40 mils)
- Scale Factor: 7.87 V/mm (±12.5%)
- Frequency Response: 0-10 kHz (±3 dB)
- Mechanical:
- Case Material: AISI 304 SST (corrosion-resistant)
- Tip Material: PPS (chemical-resistant)
- Connector: ClickLoc™ with IP67-rated protective boot
- Torque Settings:
- Full Threads: 33.9 N·m max / 11.3 N·m recommended
- First 3 Threads: 22.6 N·m max / 7.5 N·m recommended
- Environmental:
- Operating Temp: -52°C to +177°C (-62°F to +351°F)
- Pressure Seal: Viton® O-ring (500 psi differential)
Core Advantages
- Connector Protection: IP67-rated boot prevents dust/moisture ingress
- Legacy Compatibility: Direct replacement for 3300 RAM probes
- Space-Saving: 80 mm case for tight installations
