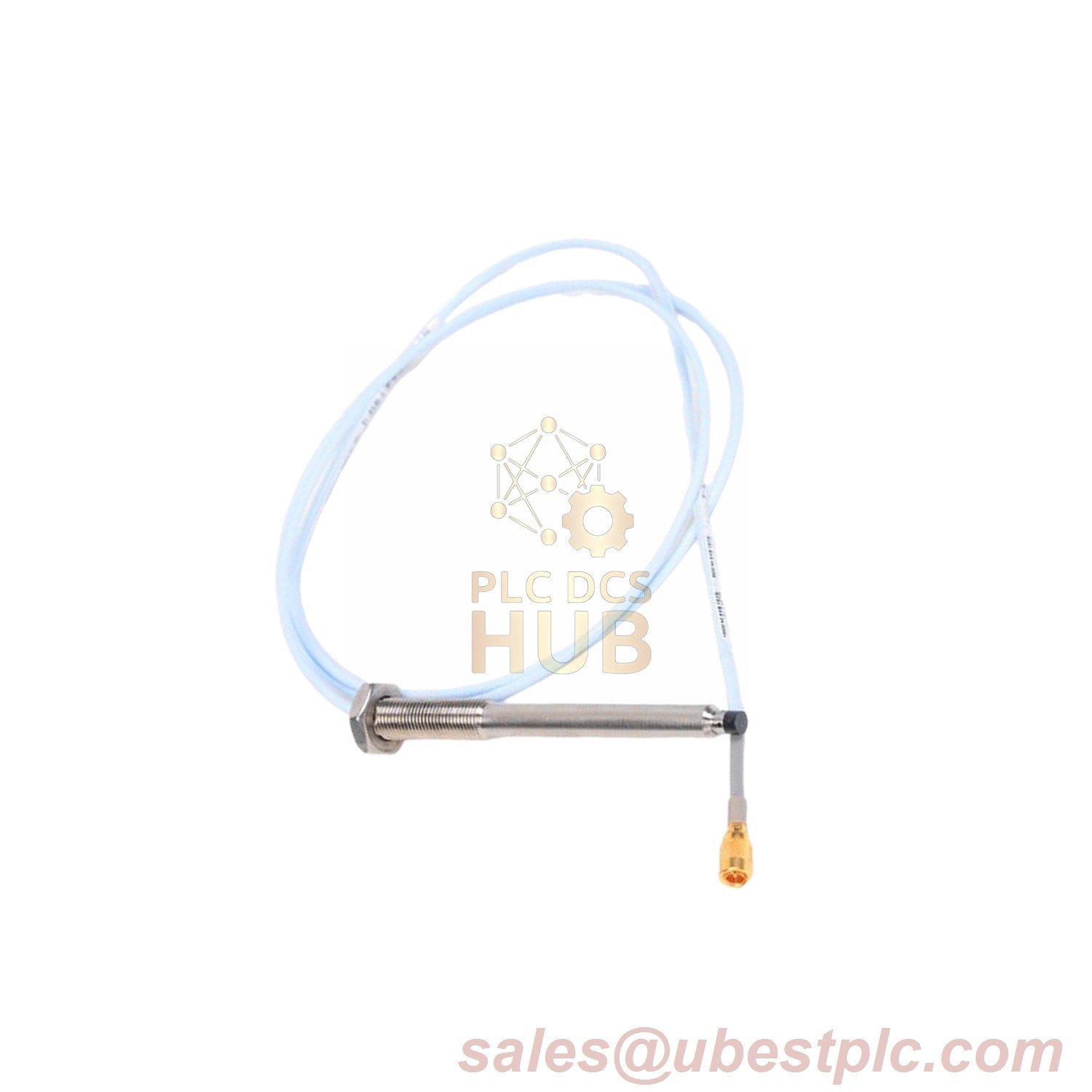

Bently Nevada Proximity Probe 330905-00-12-10-02-00

Bently Nevada-logo
Categories: , , , , , , , , , SKU: 330905-00-12-10-02-00 Tag:

$35.00 $78.00

0 reviews

Reviews Summary by AI:

25 in stock

Description

Bently Nevada 3300 NSv Proximity Probe

New & Original with 12-month factory warranty. Engineered for precision vibration monitoring, 330905-00-12-10-02-00 features a 120mm compact case and 1.0-meter armored cable. Designed for process compressors, it combines Viton® O-ring sealing and M10X1 threading for industrial reliability.

Technical Specifications

ParameterDetails
Part Number330905-00-12-10-02-00
Suffix Code Breakdown
000mm unthreaded (full M10X1 threads)
12120mm case length
101.0m FEP-insulated triaxial cable
02ClickLoc™ miniature coaxial connector
00No certifications required
Electrical
  • DC Resistance (1.0m): 4.2Ω ±0.5
  • Linear Range: 0.25–1.75 mm (10–70 mils)
  • Scale Factor: 7.87 V/mm (+12.5%/-20% tolerance)
Mechanical
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Case: AISI 304 SST with M10X1 threads
  • Max Torque: 33.9 N·m (300 in·lb)
  • Bend Radius: ≥25.4mm (1.0″)
Environmental
  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton® O-ring (avoid sustained < -34°C)
  • Min Target Size: 8.9mm diameter (13mm recommended)

Contact Us: For COO or technical support, email sales@ubestplc.com.

Additional information

Weight0.15 kg
