Product Overview & Suffix Decoding

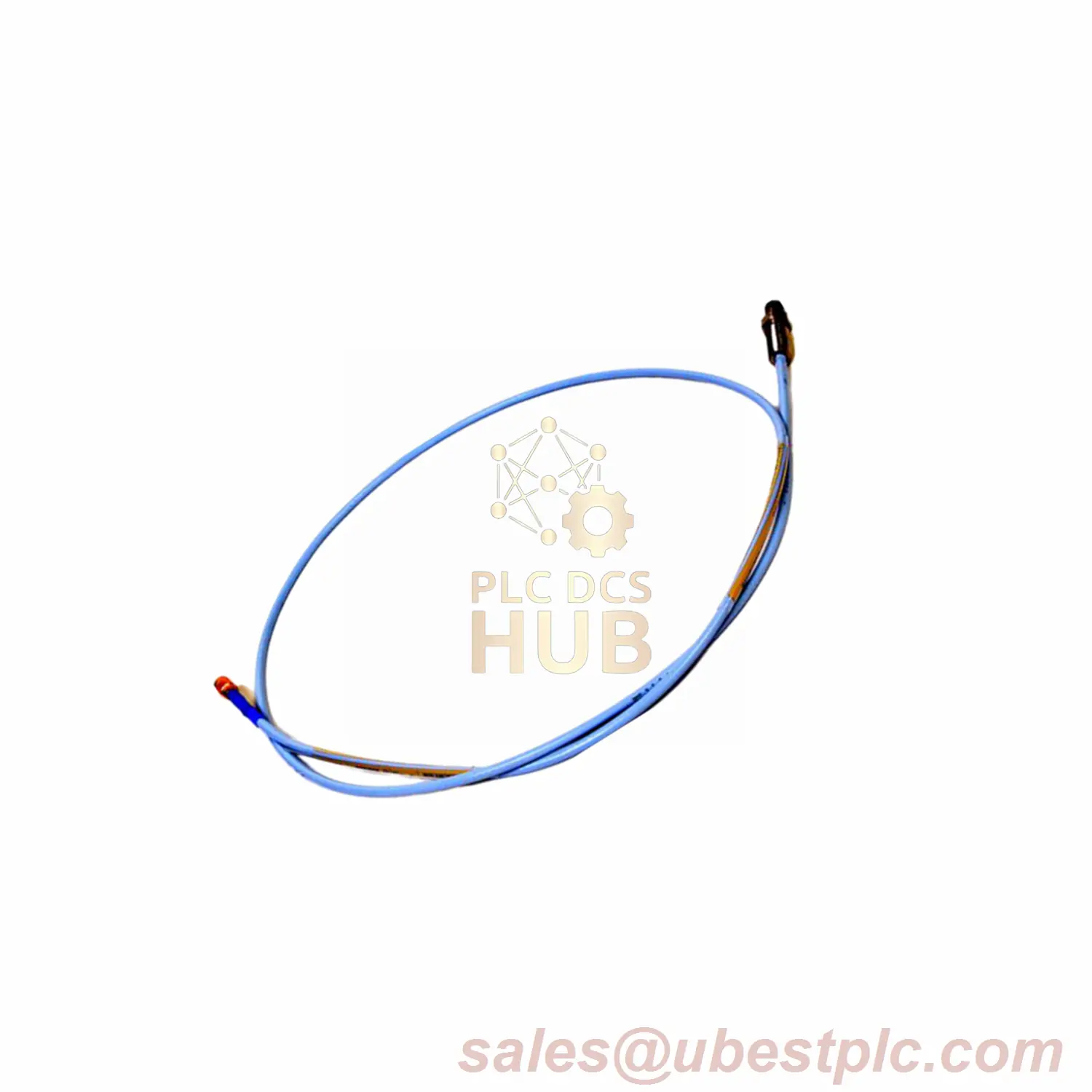

Bently Nevada 330905-00-13-10-02-00 is a brand-new 3300 NSv Proximity Probe with 12-month factory warranty. Features M10X1 threads, 1.0m unarmored cable, and 130mm case length. Full suffix breakdown: -00- (0mm unthreaded), -13- (130mm case), -10- (1.0m length), -02- (standard ClickLoc connector), -00 (no approvals).
Core Specifications & Metrics
- Electrical: Probe DC resistance 4.2Ω±0.5 (1.0m), shield resistance 0.066Ω/m, capacitance 69.9pF/m.
- Durability: Operates at -52°C to +177°C, 25.4mm bend radius, Viton O-ring for pressure sealing.
- Installation: Max thread torque 22.6N·m, engagement 15mm, gap setting 1.0mm (40 mils).
Performance Highlights for 330905-00-13-10-02-00
Outperforms 3000-series 190 probes with 7.87V/mm sensitivity (±12.5% tolerance) and ±0.06mm linearity error. Compatible with 3300 RAM systems. Includes PPS tip, 304 SST case, and supports 305m field wiring.
Technical Compliance
Meets 0-10kHz frequency response (-3dB @305m). Minimum target 8.9mm diameter (13mm recommended). Thread torque range: 7.5-22.6N·m. Sealed to IP67-equivalent (untested).
