Product Overview

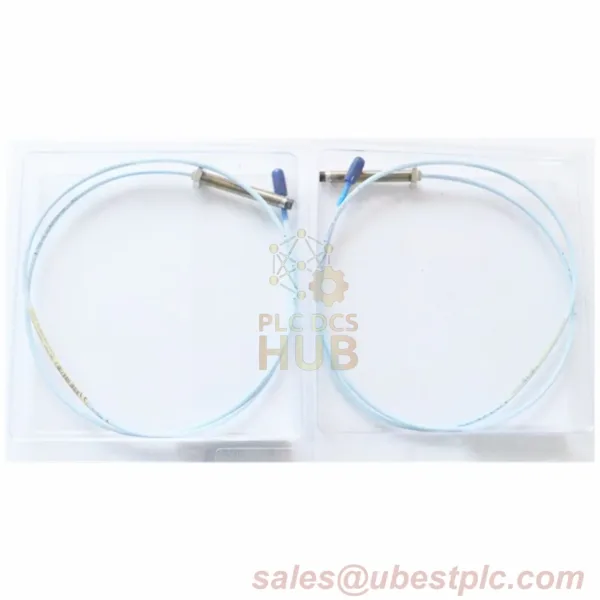

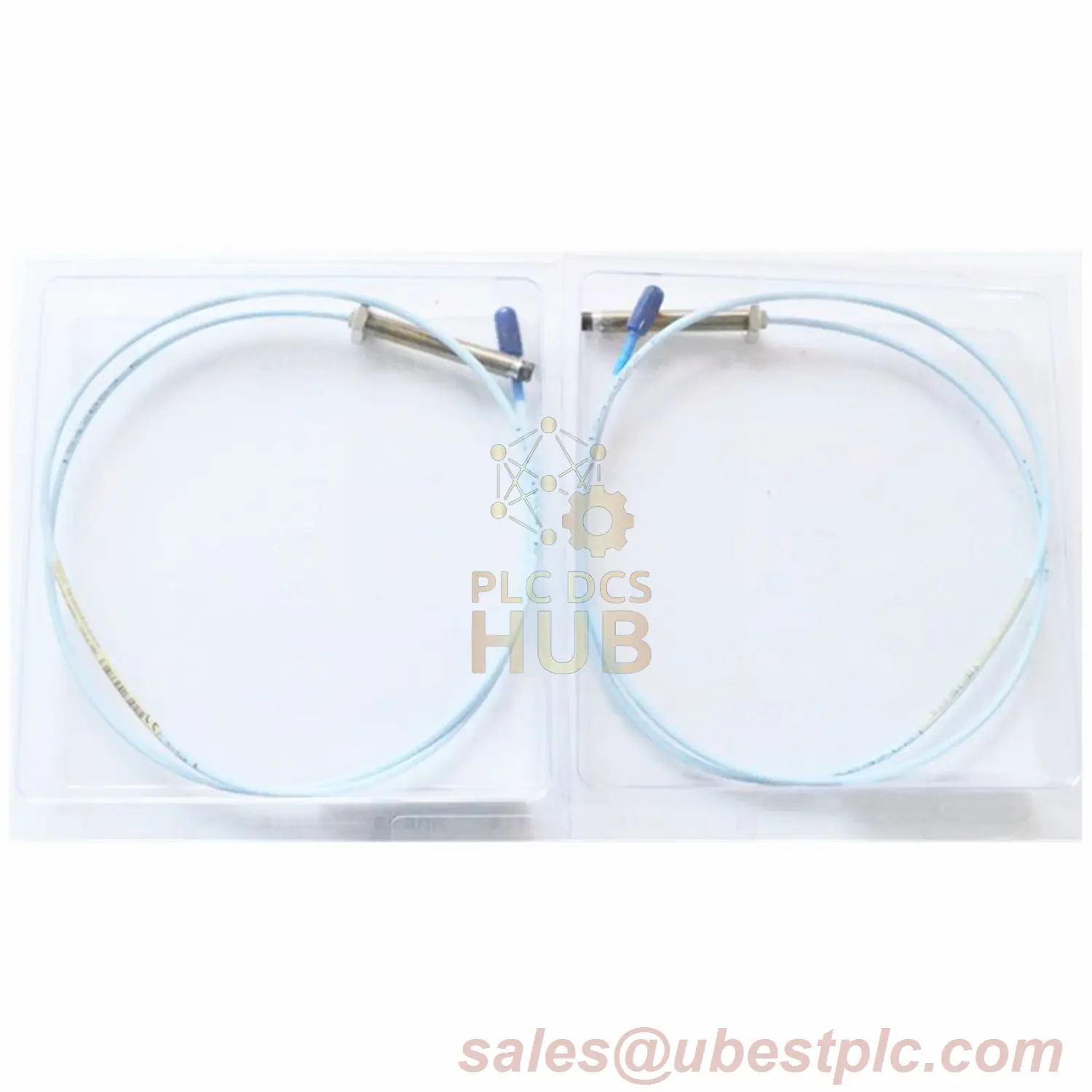

Bently Nevada 330905-00-18-05-02-CN 3300 NSv Proximity Probe is a new & original sensor with 12-month factory warranty. Designed for industrial monitoring, it offers superior chemical resistance, compatibility with legacy 3300 RAM probes, and enhanced side-view performance. Ideal for process compressors and critical machinery.
Key Specifications & Features
- • Model: 330905-00-18-05-02-CN
- • Thread: M10X1 (unarmored)
- • Length: 180 mm case / 0.5 meter (20 in) cable
- • Connector: Miniature coaxial ClickLoc
- • DC Resistance: 4.0 ± 0.5 Ω (0.5m probe)
- • Frequency Response: 0–10 kHz (±3 dB)
- • Linear Range: 0.25–1.75 mm (-1 to -13 Vdc)
- • ISF: 7.87 V/mm (±12.5%/-20%)
- • Torque Limit: 0.56 N•m (5 in•lb)
Advanced Technical Details
Materials & Durability:
Probe Tip: Polyphenylene sulfide (PPS)
Case: AISI 304 stainless steel
Seal: Viton O-ring (untested, max 15 mm thread engagement)
Temperature Range: -52°C to +177°C
Cable & Wiring:
Extension Cable Resistance: 0.220 Ω/m (center) / 0.066 Ω/m (shield)
Capacitance: 69.9 pF/m
Field Wiring: Up to 305 meters (24 AWG triad shielded)
Installation Guidelines:
Gap Setting: 1.0 mm (40 mils)
Target Size: Min 8.9 mm / Recommended 13 mm
Bend Radius: 25.4 mm (non-negotiable)
Why Choose This Probe?
This probe delivers interchangeability with 3300 RAM systems while offering 20% better chemical resistance. Its 69.9 pF/m low capacitance ensures signal integrity, and the 7.87 V/mm ISF guarantees precision across a 1.5 mm linear range. Backed by a 1-year warranty, it’s built for reliability in harsh environments.
