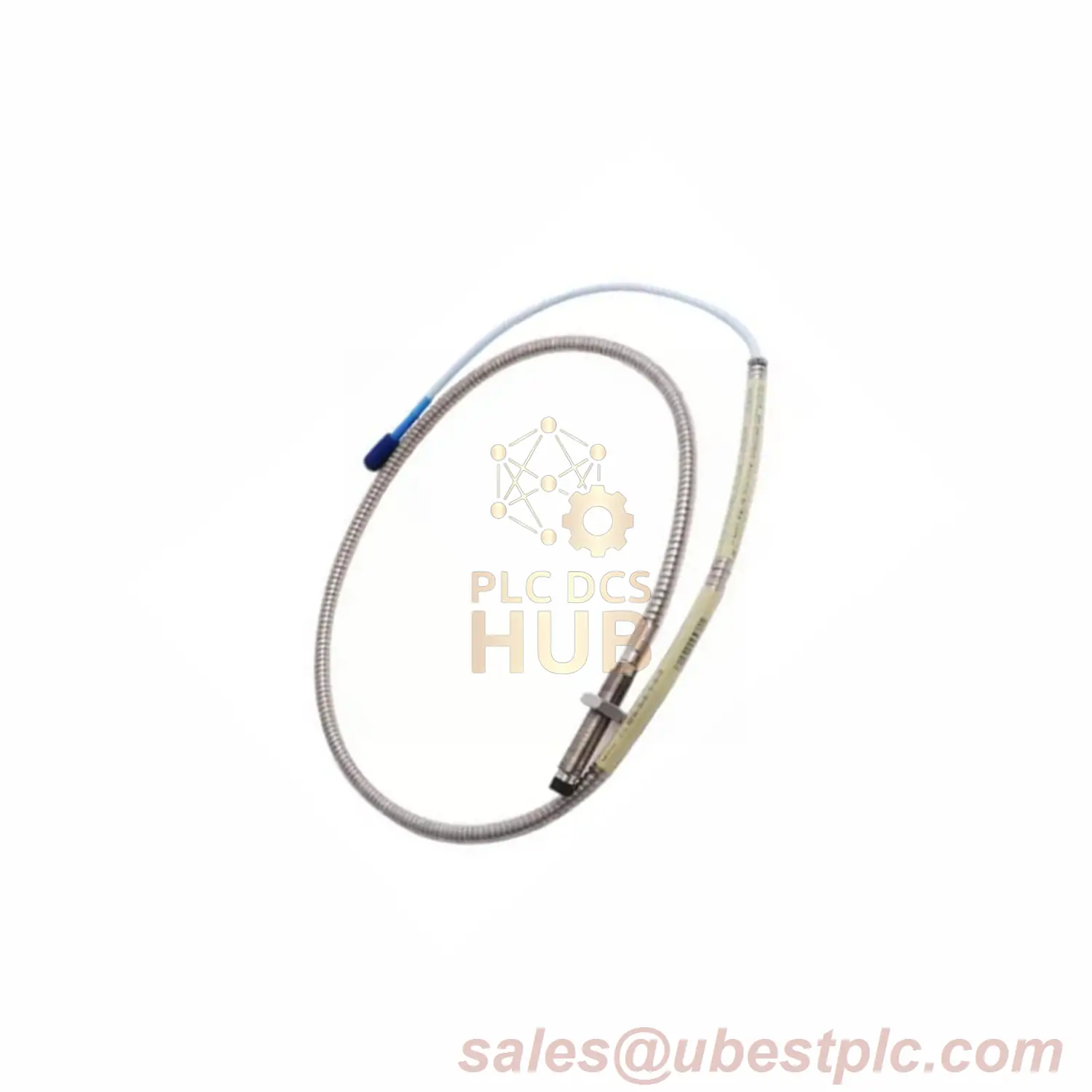

???? Industrial Precision: 3300 NSv Probe
330905-00-20-10-02-05 Manufacturer: Bently Nevada | Condition: Factory New | Coverage: 12-Month Warranty
???? Build Specifications for 330905-00-20-10-02-05
- Core Model: 330905 (M10X1 Thread, Unarmored)
- Suffix Details:
- -00-: Zero Unthreaded Shank
- -20-: 200 mm Extended Case
- 10: 1.0 Meter Cable (39″)
- 02: ClickLoc Connector + Standard Cable
- -05: Multi-Region Certifications
???? Performance Data
| Probe Resistance: | 4.2 Ω ±0.5 Ω @1.0m |
| Cable Loss: | 0.220 Ω/m (Core) | 0.066 Ω/m (Shield) |
| Detection Window: | 0.25–1.75 mm | -1V to -13V Output |
| Thread Lock: | M10x1 | 15 mm Engagement Depth |
| Torque Limits: | 0.56 N·m Max | 7.5 N·m Recommended |
???? Heavy-Duty Construction
- Tip Material: PPS Polymer (Chemical-Resistant)
- Housing: 304 SST | Viton® O-Ring Seal
- Bend Radius: 25.4 mm (Flex-Tested)
- Temp Resilience: -52°C to +177°C
???? Seamless Integration
- Backward-Compatible with 3300 RAM Systems
- Enhanced Side-View Accuracy vs 190 Series
- 305m Field Wiring Support | 69.9 pF/m Capacitance
???? Global Availability
???? sales@ubestplc.com | ???? +86 180 3000 5825
OEM Direct | 24H Quote Response
