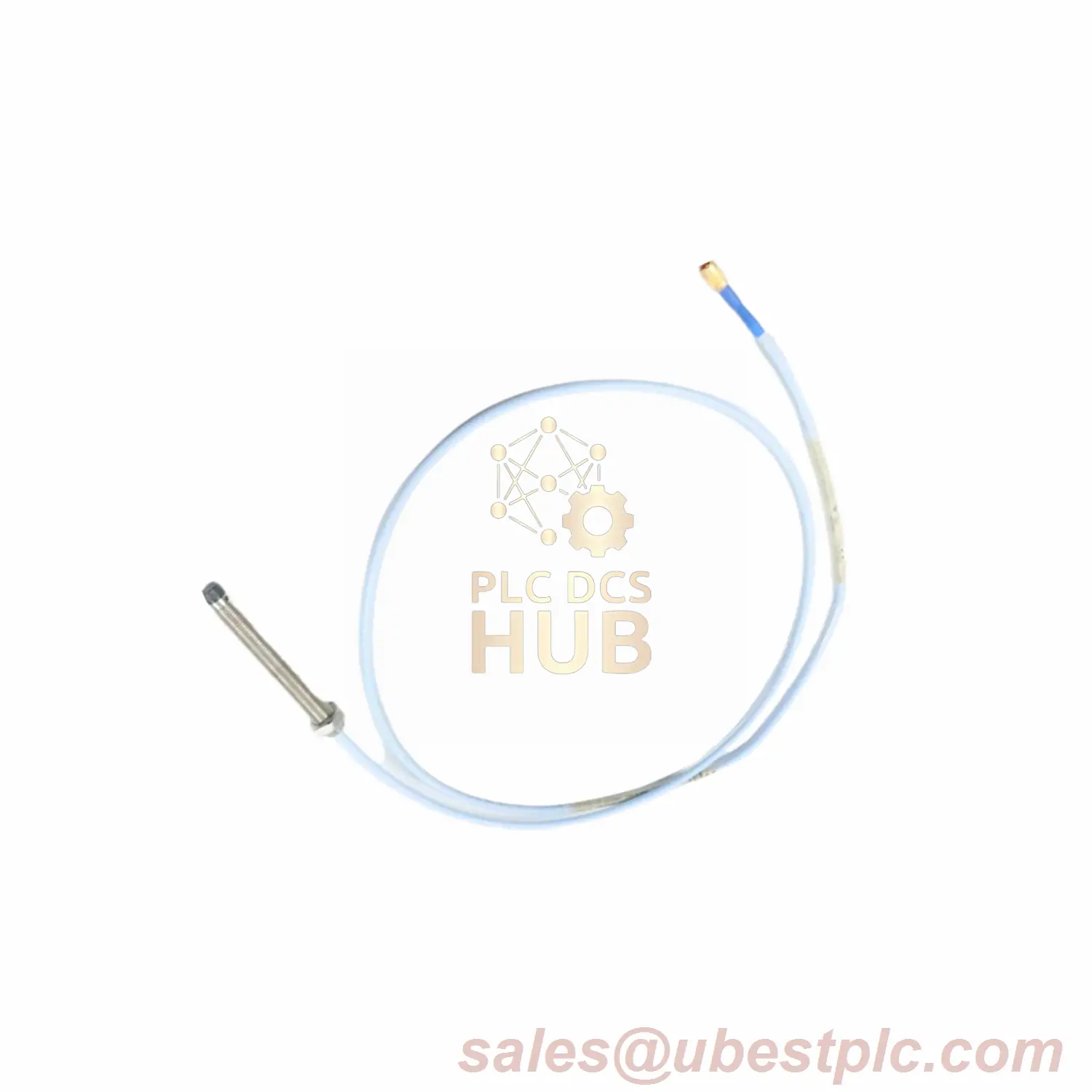

???? Product Overview: 330905-00-23-10-02-05 3300 NSv Proximity Probe
330905-00-23-10-02-05 Brand: Bently Nevada | Condition: New & Original | Warranty: 12 Months
???? Ordering Details
- Model: 330905 – 3300 NSv Probe (M10X1 thread, no armor)
- Suffix Codes:
- -00-: Unthreaded Length = 00 mm
- -23-: Overall Case Length = 230 mm
- 10: Total Length = 1.0 meter (39 in)
- 02: Miniature Coaxial ClickLoc Connector + Standard Cable
- -05: Multiple Agency Approvals
⚙️ Key Specifications
| DC Resistance (Probe): | 4.2 ± 0.5 Ω |
| Extension Cable Resistance: | 0.220 Ω/m (Center), 0.066 Ω/m (Shield) |
| Linear Range: | 1.5 mm (60 mils) | Gap Setting: 1.0 mm (40 mils) |
| ISF (Scale Factor): | 7.87 V/mm ±12.5%/-20% |
| Frequency Response: | 0-10 kHz (±3 dB) with 305m Field Wiring |
| Temperature Range: | -52°C to +177°C | Max Torque: 0.56 N•m |
???? Advanced Features
- Material: PPS Probe Tip + AISI 304 SST Case
- Pressure Seal: Viton O-Ring (Differential Pressure)
- Compatibility: Fully interchangeable with 3300 RAM Probes
- Field Wiring: Supports 305m Triad Cable | Capacitance: 69.9 pF/m
