Description
Core Features

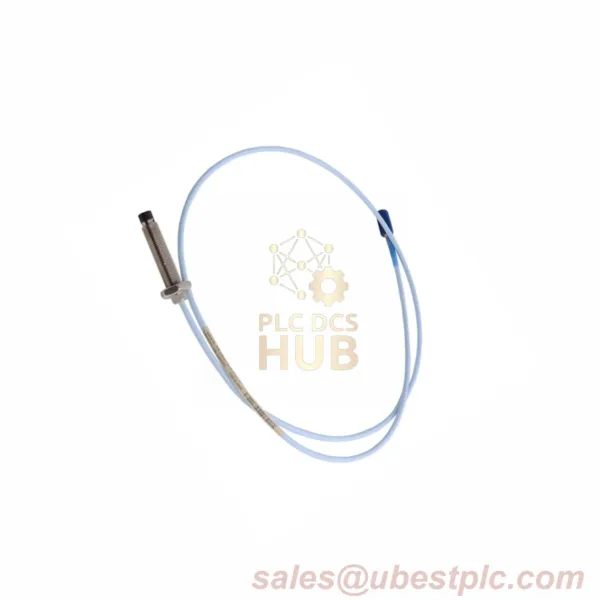

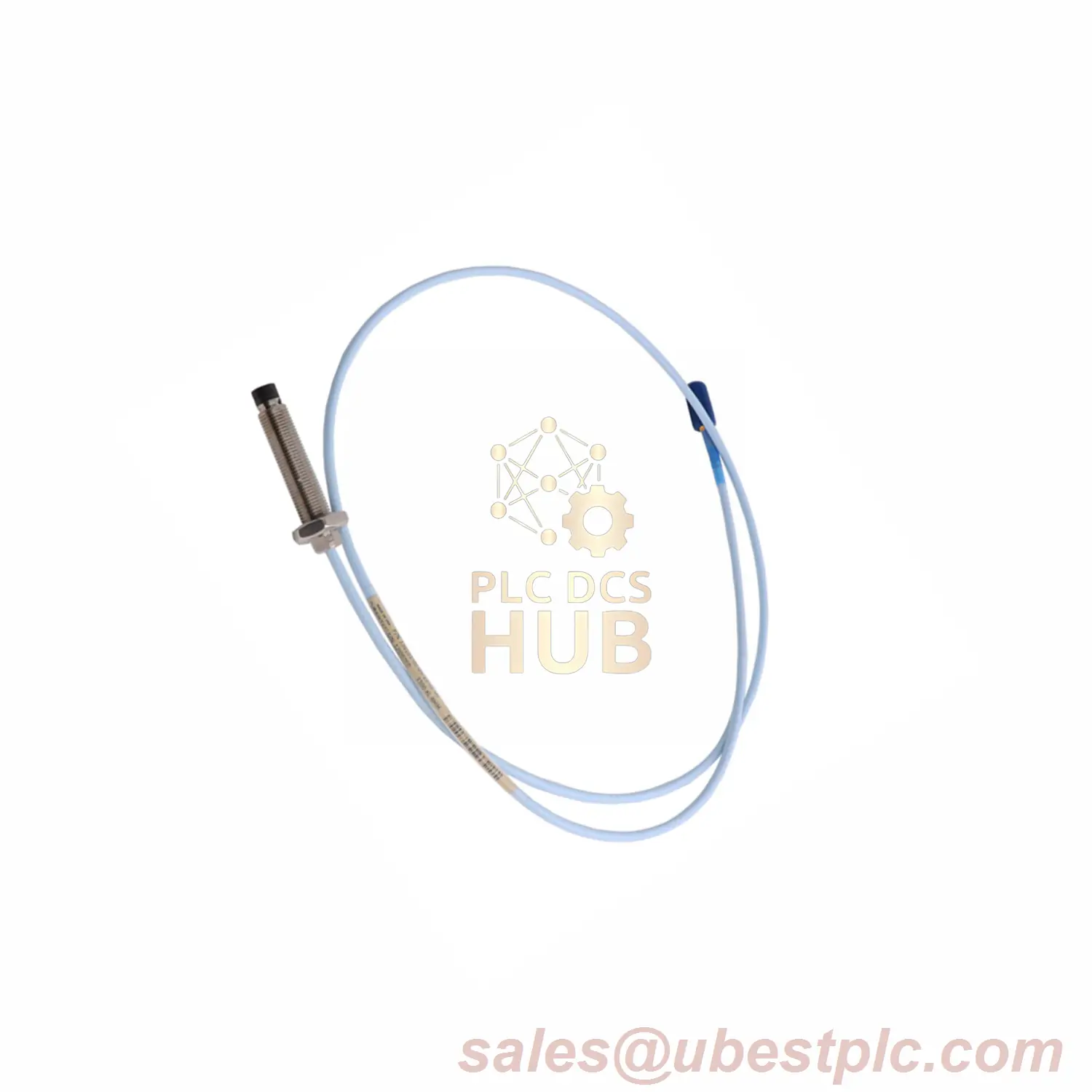

The 330905-05-08-10-02-00 is a Bently Nevada 3300 NSv Probe for industrial vibration analysis. New & original, backed by a 12-month warranty. Features 1.0m standard cable and M10X1 threading.
Critical Specifications for 330905-05-08-10-02-00
- Case Length: 80mm | Resistance: 4.2Ω ±0.5
- Voltage Output: -1V to -13V | Accuracy: ±0.06mm
- Frequency Range: 0–10kHz (±3dB)
Installation & Use
- Max Torque: 7.5N·m | Thread Depth: 15mm max
- Gap Setting: 1.0mm (40 mils) | Cable Type: 75Ω FEP coaxial
- Wiring: Use 16–24 AWG shielded triad cable (305m max)
Durability & Compatibility
- Materials: PPS sensor tip | 304 stainless steel body
- Temperature Range: -52°C to +177°C
- Seal: Viton O-ring (pressure testing available on request)
Support Details
1-year manufacturer warranty included. For technical assistance:
