Description
Core Features

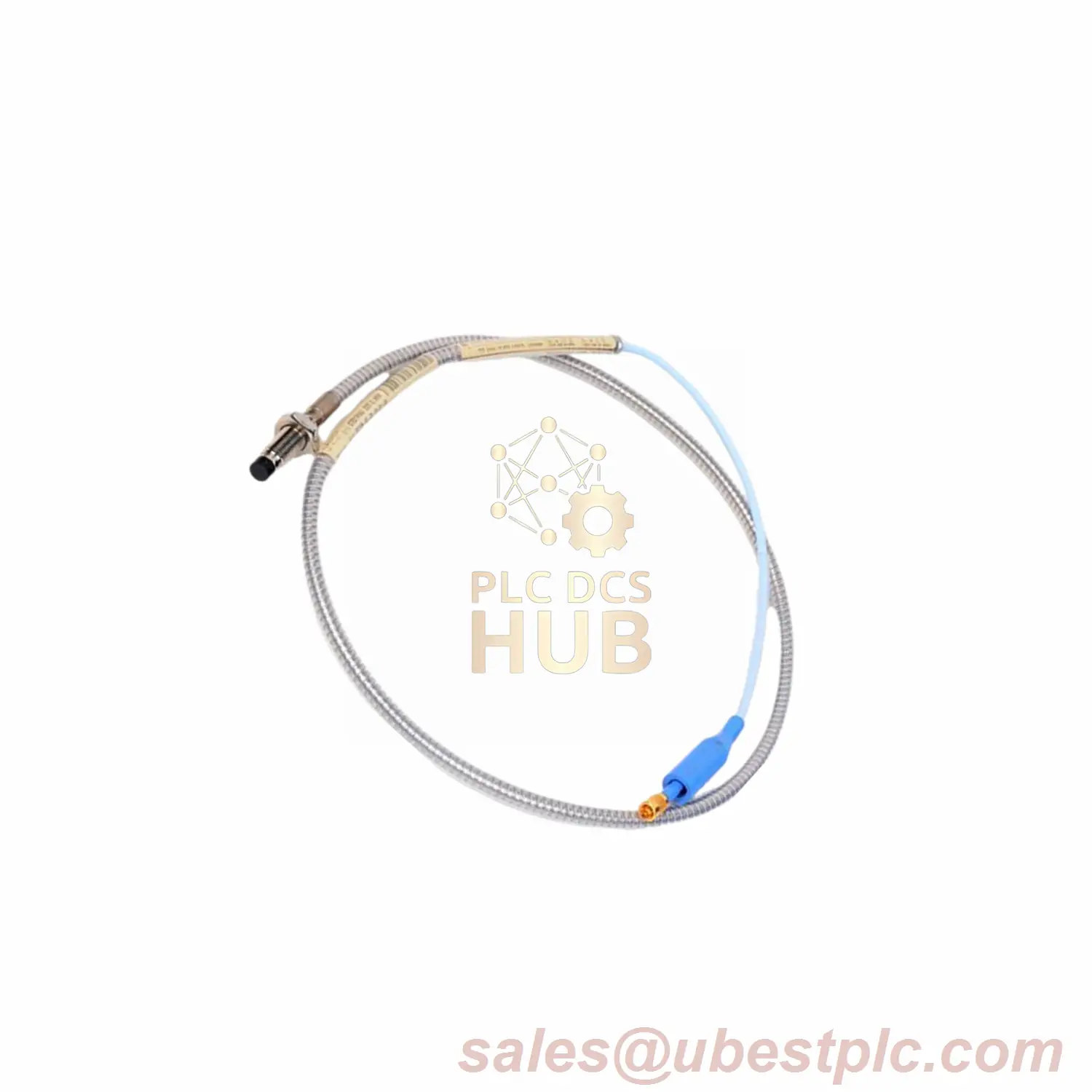

The 330905-05-10-05-01-00 is a Bently Nevada 3300 NSv Proximity Probe for precision vibration monitoring. New & original with 12-month warranty. Features 0.5m standard cable, M10X1 thread, and ClickLoc connector protector.
Key Specifications for 330905-05-10-05-01-00
- Case Length: 100mm | Resistance: 4.0Ω ±0.5
- Voltage Range: -1V to -13V | Gap Setting: 1.0mm (40 mils)
- Frequency Response: 0–10kHz (±3dB) | Accuracy: ±0.06mm
Installation Guide
- Max Torque: 7.5N·m | Thread Depth: 15mm max
- Wiring: Use 16–24 AWG shielded cable (305m max)
- Bend Radius: >25.4mm | Cable Type: 75Ω FEP coaxial
Durability & Design
- Materials: PPS sensor tip | 304 stainless steel body
- Temperature Range: -52°C to +177°C
- Seal: Viton O-ring (pressure testing available on request)
Support & Warranty
1-year factory warranty included. For technical assistance or custom testing:
Email sales@ubestplc.com
