???? Product Overview: 330905-05-10-10-01-00

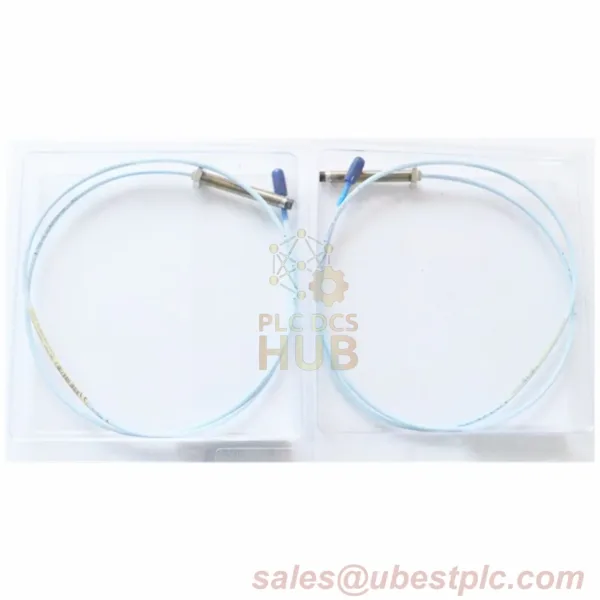

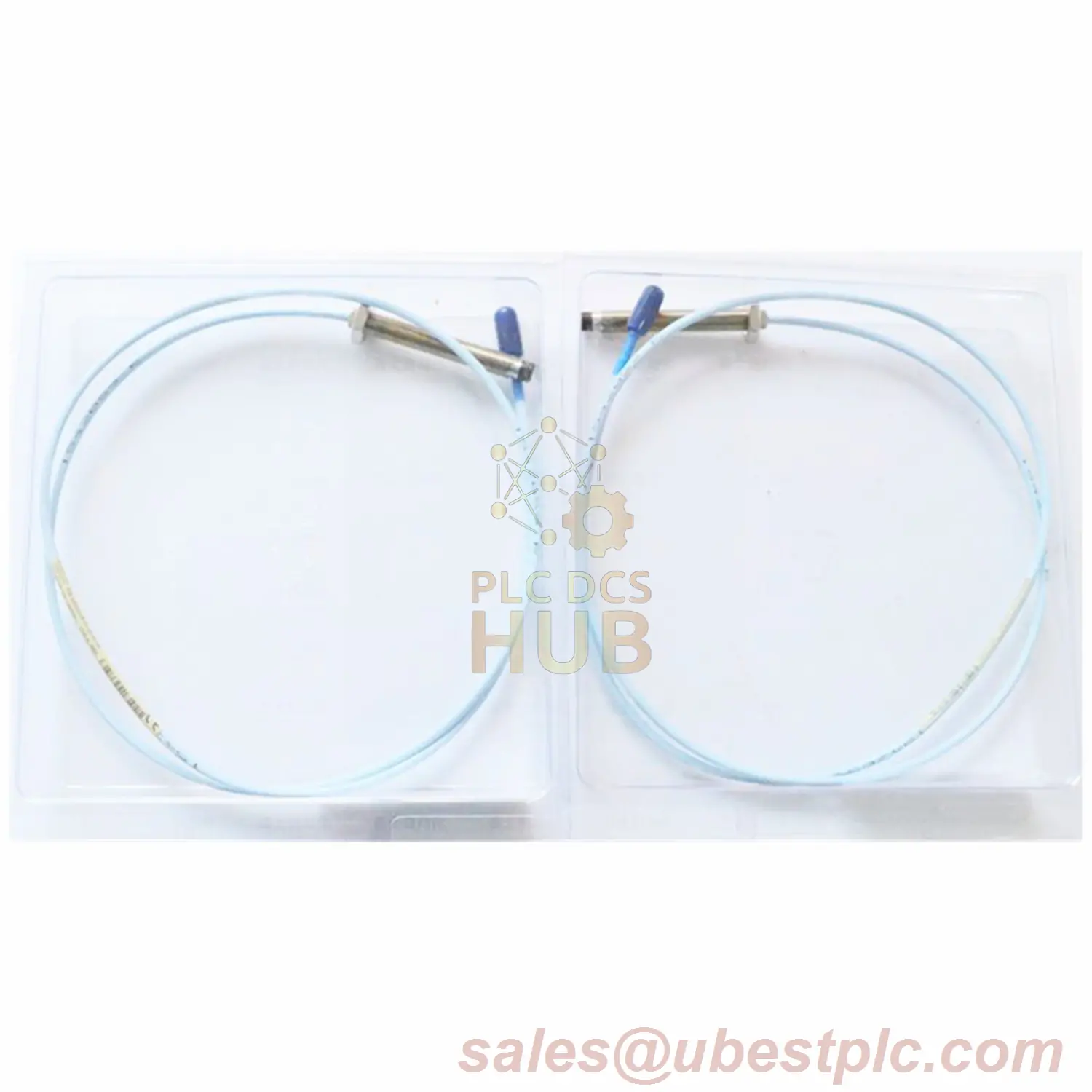

New & Original Bently Nevada 3300 NSv Proximity Probe with 12-month warranty. Features M10x1 thread, 1.0m cable, and backward compatibility with 3300 RAM systems. Ideal for non-certified industrial environments.
???? Suffix Decoded for 330905-05-10-10-01-00
- 330905: Base model
- -05: 50mm unthreaded length
- -10: 100mm overall case length
- -10: 1.0m standard cable
- -01: ClickLoc connector with protector
- -00: No agency approvals required
???? Key Specifications
| Thread Engagement | 15mm max |
| Field Wiring | Up to 305m (24 AWG) |
| Bend Radius | 25.4mm (rigid) |
| Connector Type | IP65-rated ClickLoc |
| Seal Material | Viton O-ring (150°C) |
⚡ Performance Highlights
- Scale Factor: 7.87V/mm ±12.5%
- Linearity: <±0.06mm error
- Frequency Range: 0-10kHz (±3dB)
- Temp Resilience: -52°C to +177°C
- Probe Tip: PPS polymer (chemical-resistant)
???? Installation Guide
- Max Torque: 22.6N·m (do not exceed)
- Optimal Gap: 1.0mm (40 mils)
- Cable Shielding: Triad configuration mandatory
- Thread Lubrication: Dry installation only
