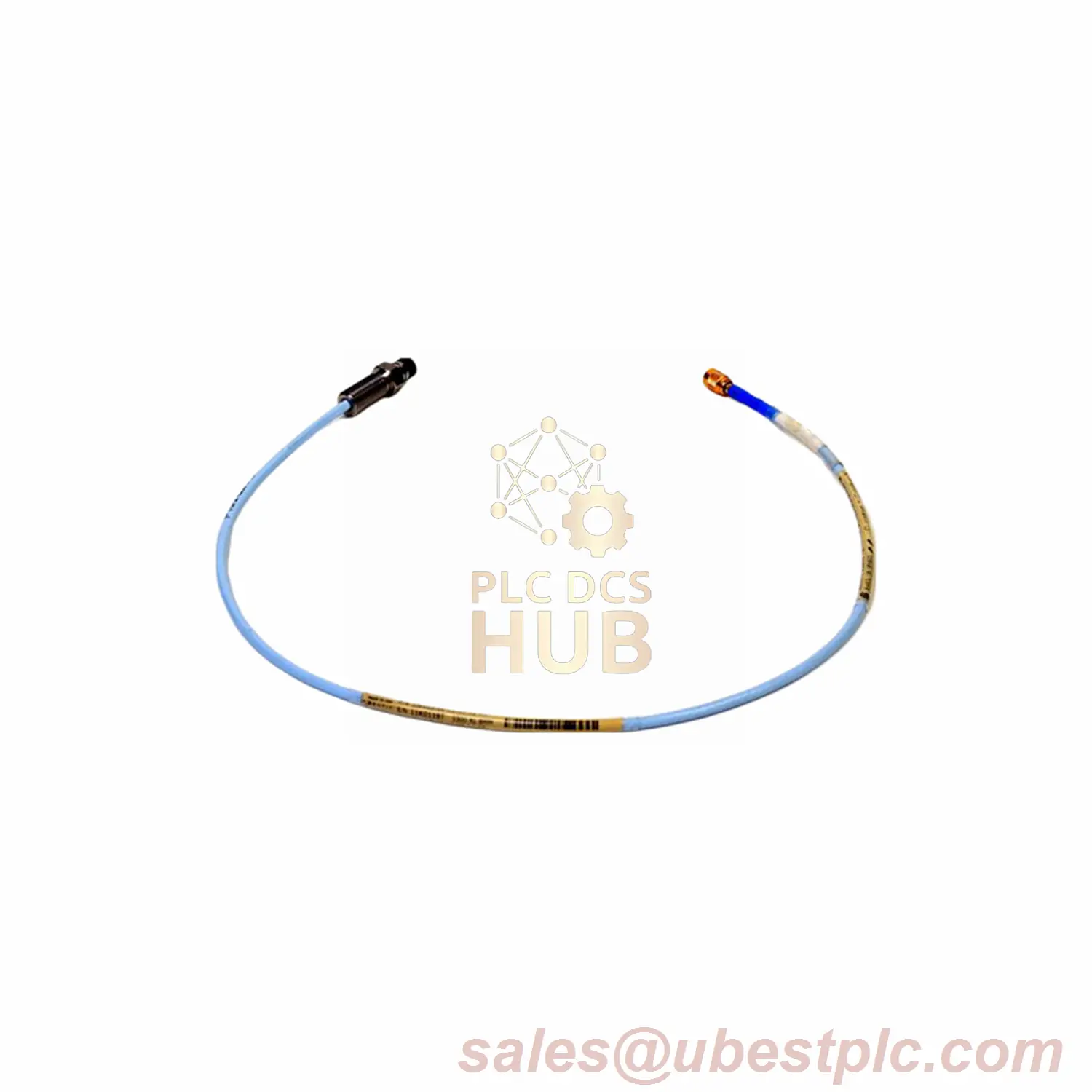

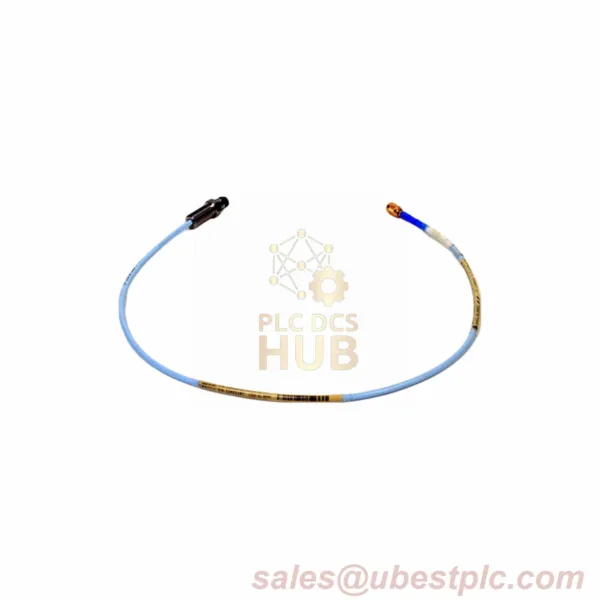

Bently Nevada – Proximity Probe 330905-05-13-05-12-05 Without Armor

Description

Product Overview

The Bently Nevada 330905-05-13-05-12-05 is a factory-new proximity probe with a 1-year warranty. Features M10X1 threading, 130 mm case length, and a 0.5-meter FluidLoc cable for harsh environments. Built to work in -52°C to +177°C extremes.

Key Details for 330905-05-13-05-12-05

• Part Code: -05-13-05-12-05 = 50 mm unthreaded, 130 mm case, 0.5m cable, FluidLoc connector, multi-agency approved.
• Probe Resistance: 4.0Ω ±0.5Ω (0.5m cable).
• Cable Specs: 0.220Ω/m (center), 0.066Ω/m (shield).
• Max Wiring: 305 meters (shielded triad cable).

Performance Highlights

• Measure Range: 1.5 mm (0.25–1.75 mm from target).
• Output Accuracy: 7.87V/mm ±12.5%, ±0.06mm error.
• Fast Response: 0–10,000 Hz with long cables.
• Small Shafts: Works on shafts ≥8.9 mm (best ≥13 mm).

Durability Features

• FluidLoc Cable: Resists chemicals/moisture.
• Materials: PPS tip, stainless steel case.
• Installation: Tighten to 7.5 N·m (max 22.6 N·m).
• Bend Safety: Min 25.4 mm radius.

Support & Warranty

Includes 12-month warranty. Need help? Email sales@ubestplc.com

Document Download here: 3300 XL NSv Proximity Transducer System Datasheet
