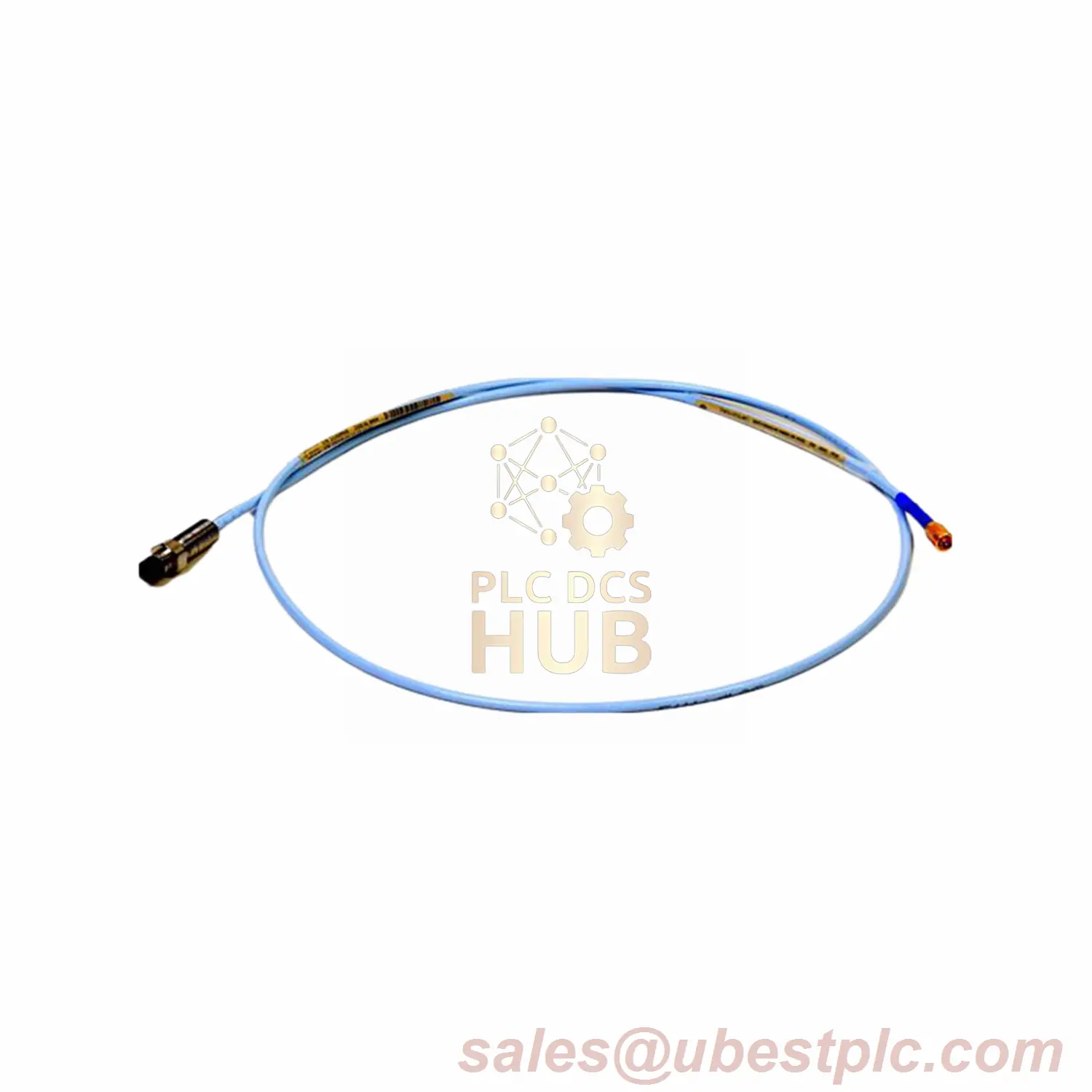

Bently Nevada Proximity Probe 330905-05-25-10-02-05 Without Armor

Description

Product Overview

The Bently Nevada 330905-05-25-10-02-05 is a new industrial proximity probe with a 12-month warranty. Features M10X1 threading, 250 mm case length, and a 1.0-meter cable with mini ClickLoc connector. Works in extreme temperatures (-52°C to +177°C).

Key Details for 330905-05-25-10-02-05

• Part Number Codes: -05-25-10-02-05 = 50 mm unthreaded, 250 mm case, 1.0m cable, ClickLoc connector, multiple approvals.
• Probe Resistance: 4.2Ω ±0.5Ω (1.0m cable).
• Field Wiring: Supports up to 305 meters (shielded triad cable).
• Works With: All 3300 RAM probe systems.

Performance

• Measure Range: 1.5 mm (0.25–1.75 mm from target).
• Output Accuracy: 7.87V/mm ±12.5%, ±0.06mm error.
• Fast Response: 0–10,000 Hz (even with long cables).
• Small Shafts: Works on shafts ≥8.9 mm (best for ≥13 mm).

Durability & Safety

• Materials: PPS plastic tip, stainless steel case.
• Bend Radius: Min 25.4 mm (prevents cable damage).
• Installation: Tighten to 7.5 N·m (max 22.6 N·m).
• Pressure Seal: Viton O-ring (untested).

Order Support

Includes 1-year warranty. Need help? Email sales@ubestplc.com

Document Download here: 3300 XL NSv Proximity Transducer System Datasheet
