Description

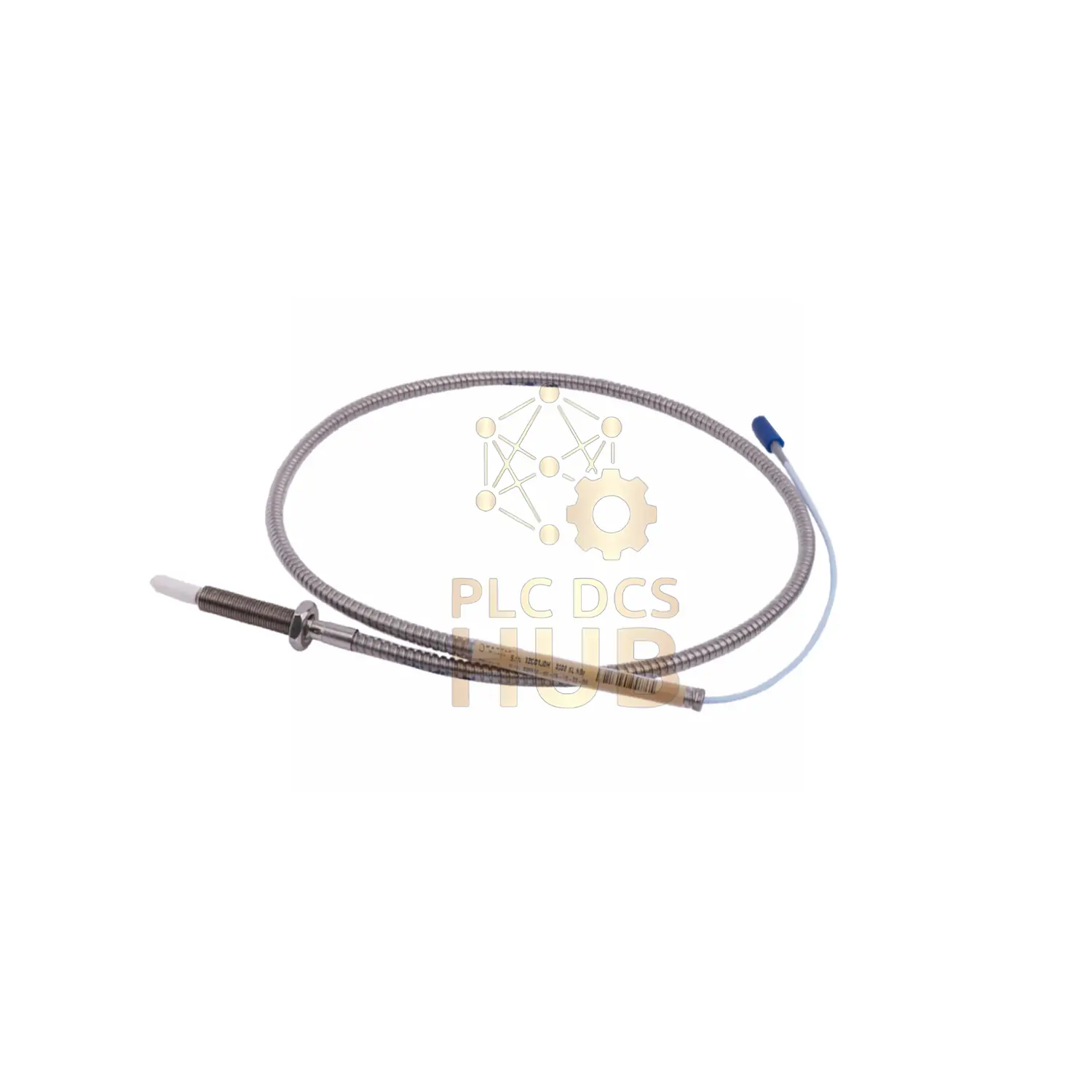

Bently Nevada 3300 NSv Probe: Certified Industrial Monitoring
Core Features
- Product No: 330908-12-36-10-02-05
- 3.6″ stainless steel case with PPS sensing tip
- Certified for global industrial use (Multiple Approvals)
- 1.0m FEP cable withstands -52°C to +177°C
- Viton O-ring pressure sealing
Technical Specifications
- Suffix Breakdown:
- 330908: Base model
- 12: 1.2″ unthreaded section
- 36: 3.6″ case length
- 10: 1.0m cable
- 02: ClickLoc connector
- 05: Multiple agency approvals
- Electrical: 75Ω impedance | 4.2Ω ±0.5Ω DC resistance
- Thread: 3/8-24 UNF with 0.563″ max engagement
- Seal: Viton O-ring (not pressure tested)
Installation Guide
- Max torque: 300 in-lb (33.9 N•m)
- Critical: Avoid below -34°C for long periods
- Use thread lock for high-vibration areas
Shipping & Support
- Delivery: FedEx/UPS/DHL (2-5 business days)
- Package: Protective casing + spec sheet
- Warranty: 12-month coverage
FAQ
- Q: What approvals does this have?
A: Multiple global certifications (Option 05) - Q: Can I use this in explosive areas?
A: Yes, certified for hazardous locations - Q: Is calibration included?
A: Factory calibrated, no field calibration needed
Model Comparison
| Feature | Current Model 330908-12-36-10-02-05 | Shorter Model 330908-00-31-05-02-00 | Compact Model 330908-00-20-05-02-00 |
|---|---|---|---|
| Case Length | 3.6in | 3.1in | 2.0in |
| Unthreaded Section | 1.2in | None | None |
| Cable Length | 1.0m | 5.0m | 5.0m |
| Certifications | Multiple | None | None |
