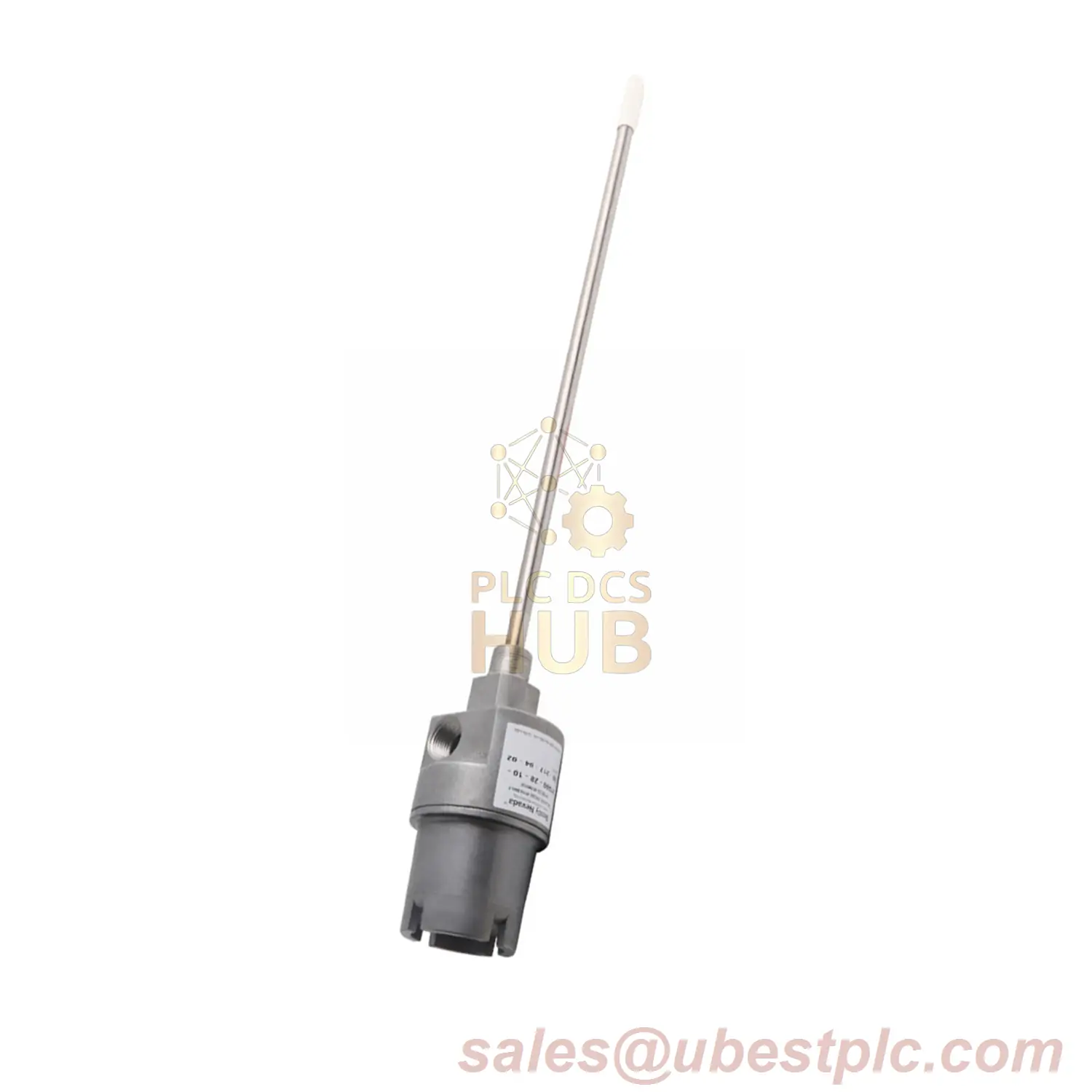

Bently Nevada Proximity Probe – Housing Assembly 21000-16-05-15-114-03-02

Description

Bently Nevada Short-Penetration Monitoring Kit

21000-16-05-15-114-03-02: Optimized for tight-clearance hazardous locations, this 1.4″ penetration assembly features CSA Type 4 approval and API 670 compliance. Ideal for confined-space machinery with Class I/II/III certifications.

Key Technical Parameters

• Manufacturer: Bently Nevada
• Part No.: 21000-16-05-15-114-03-02
• Measurement Accuracy: ±1% FS (±0.01″)
• Frequency Bandwidth: 0-10 kHz (±3dB)
• Cable Rating: 300V RMS, 90°C max
• Housing Material: 6061-T6 Aluminum + 316SS

Suffix Code Hierarchy

• ├─ 16: 8mm 3300XL Probe (IP69K-rated)
• ├─ 05: 0.5m High-Flex Cable
• ├─ 15: 1.5″ Standoff Adapter
• ├─ 114: 1.4″ (35.6mm) Penetration
• ├─ 03: NPT Fitting Kit
• └─ 02: 3/4-14 NPT Thread

Performance Highlights

• ▪︎ 0.05-0.8mm (2-32 mil) Linear Range
• ▪︎ <20ms Warm-up Time
• ▪︎ 500V AC Isolation (Probe to Ground)

Industry Applications

• ▶ CNC Machine Tools: Spindle runout monitoring in oil-mist environments
• ▶ Automotive Robotics: Armature vibration detection in paint booths
• ▶ Packaging Lines: Sealing head alignment in Class II dust zones

Certifications & Approvals

• ✓ CSA: Class III Div 1 Fibers/Flyings
• ✓ UL 1203: Explosion-Proof Enclosure
• ✓ EN 61326-1: EMC Industrial Immunity

Package Includes

• • Reverse-Mount Probe Assembly
• • 3/4″ NPT Stainless Plug
• • Fluorosilicone O-Ring Set
• 12-Month Defect Warranty

Technical Consultation: Contact sales@ubestplc.com for installation drawings or hazardous area certifications.

Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
