Description

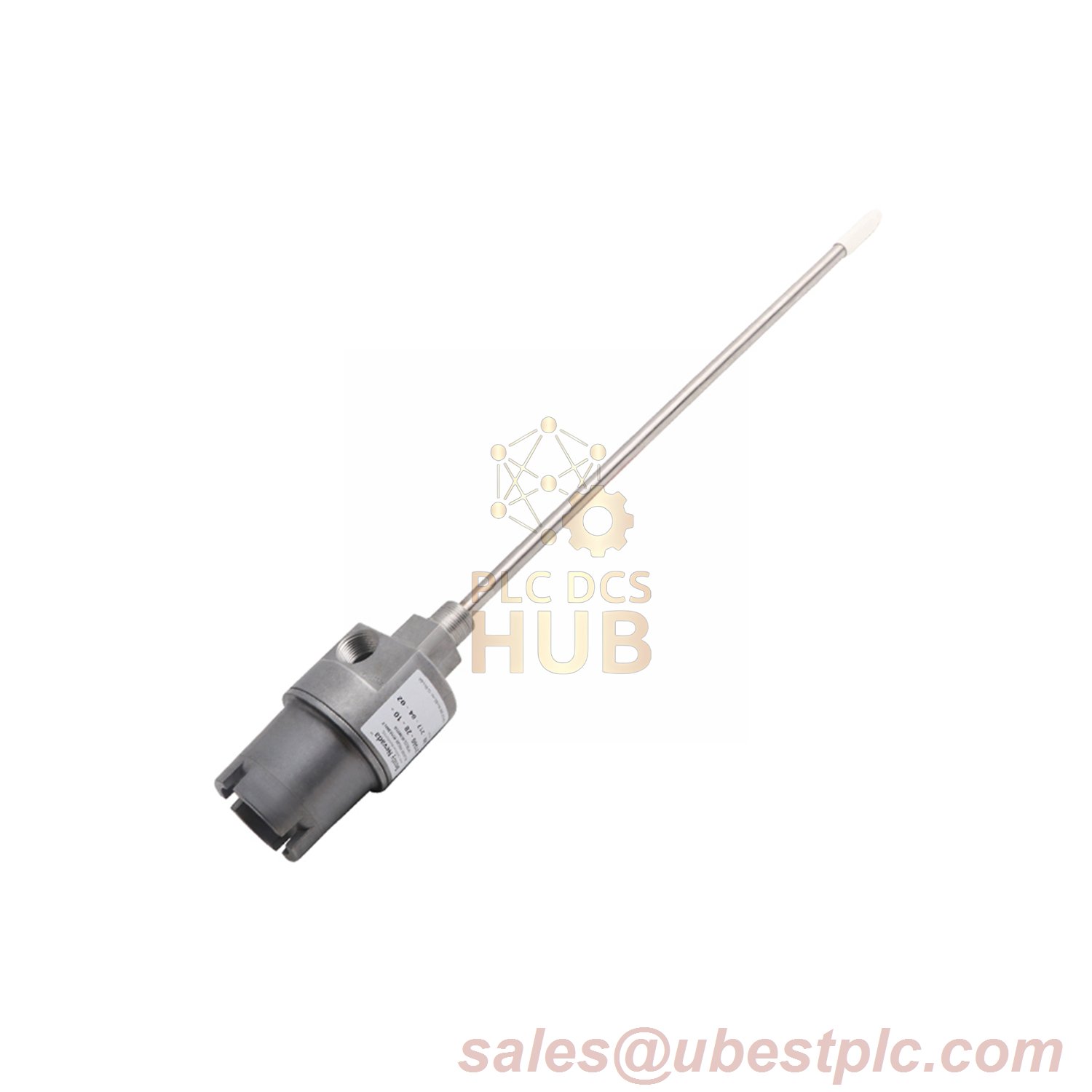

Bently Nevada Proximity Probe Housing Assembly
The 21000 Series Housing Assembly 21000-28-05-15-050-03-02 by Bently Nevada is a CSA-certified, explosion-proof solution designed for hazardous areas. This new & original assembly includes a reverse-mount 3300 XL 8 mm probe, aluminum body, and 304 stainless steel sleeve, ensuring compliance with API 670 standards for machinery protection.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 21000-28-05-15-050-03-02 |
| Suffix Codes | 28: 3300 XL 8 mm Probe (Hazardous Area) 05: 0.5 m (20 in) Probe Cable 15: 1.5 in Standoff Adapter 050: 5 in Probe Penetration 03: 3/4-14 NPT Fittings + Cable Seals 02: 3/4-14 NPT Mounting Thread |
| Material | Aluminum Body, 304 Stainless Steel Sleeve |
| Weight | 1.1 kg (2.4 lb) without fittings |
| Compliance | CSA Type 4, API 670 Standard |
| Fittings Included | • One 3/4-14 NPT Plug • One 3/4-14 to 1/2-14 NPT Reducer • Cable Seal Grips (1/8″–3/8″ sizes) |
| Installation Note | Counterbore machine case for penetration lengths >1.0 in. |
Contact Us: For quotes or technical support, email sales@ubestplc.com.
