Description

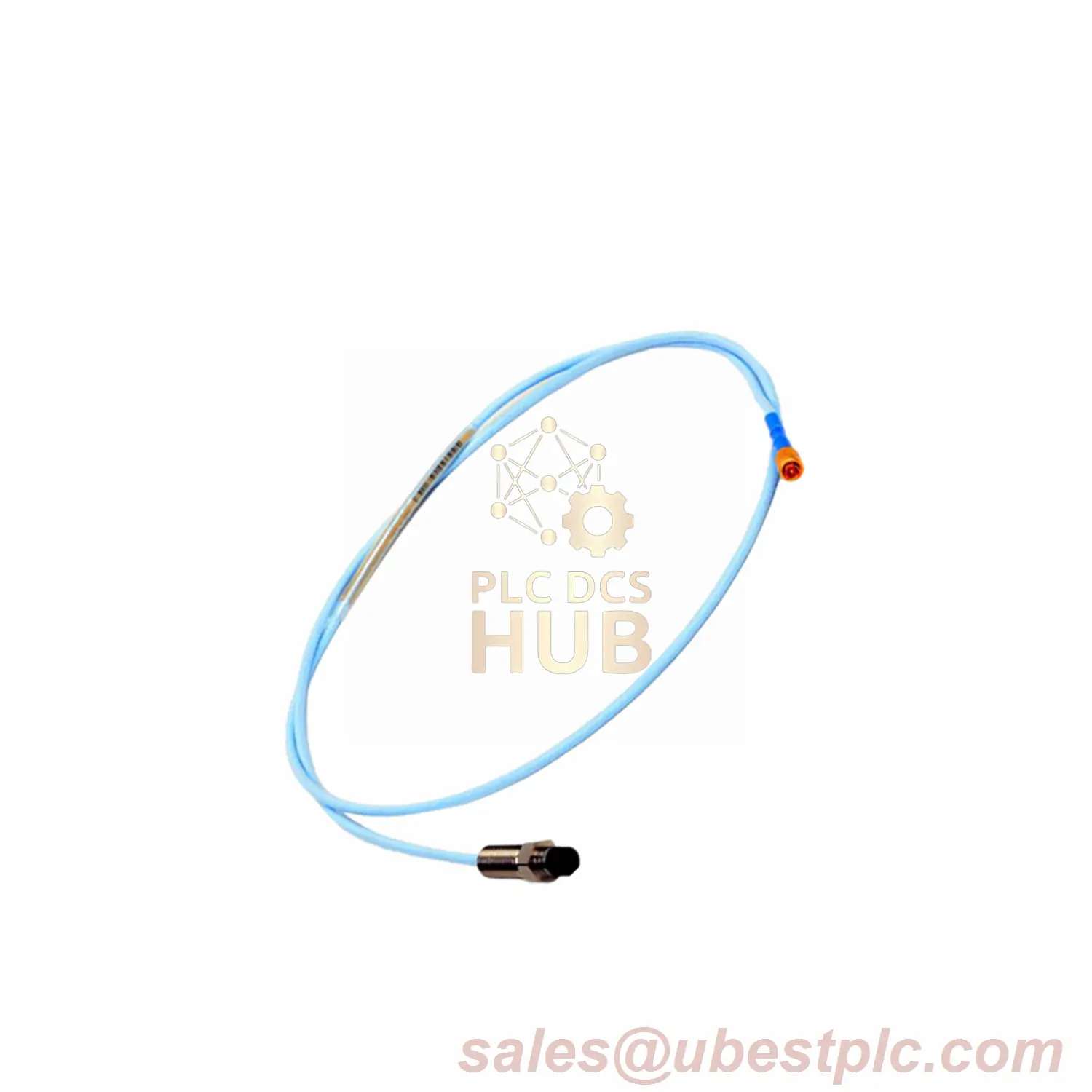

Bently Nevada 3300 XL 8mm Sensor
Model 330103-00-04-10-02-05
Key Advantages
- ✅ 40mm compact stainless housing
- ✅ Triple-certified (CSA/ATEX/IECEx)
- ✅ Military-grade humidity resistance
- ✅ -52°C cryogenic capability
Suffix Breakdown for 330103-00-04-10-02-05
00 – 0mm Unthreaded
04 – 40mm Case
10 – 1.0m Cable
02 – ClickLoc® Connector
05 – Full Certifications
Critical Specifications
▸ Linear range: 0.25-2.3mm (-1 to -17V)
▸ 7.59Ω ±0.5 DC resistance
▸ 323g/m weight density
▸ 15mm thread engagement limit
▸ IP67 ingress protection
▸ 93% humidity tolerance
▸ Viton® pressure seal
▸ 3ms response time
Certification Matrix
| ATEX | Zone 0/1 Ex ia IIC T4 |
| IECEx | Ex ia IIC T4 Ga |
| CSA | Class I Div 1 Groups A-D |
Mission-Critical Applications
⚙️ Aerospace actuators
???? Nuclear coolant pumps
???? Radar rotation systems
???? Nuclear coolant pumps
???? Radar rotation systems
⚡ Power turbine monitoring
???? Semiconductor robotics
???? Marine thrust bearings
???? Semiconductor robotics
???? Marine thrust bearings
Warranty: 12 months |
Technical Support
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
