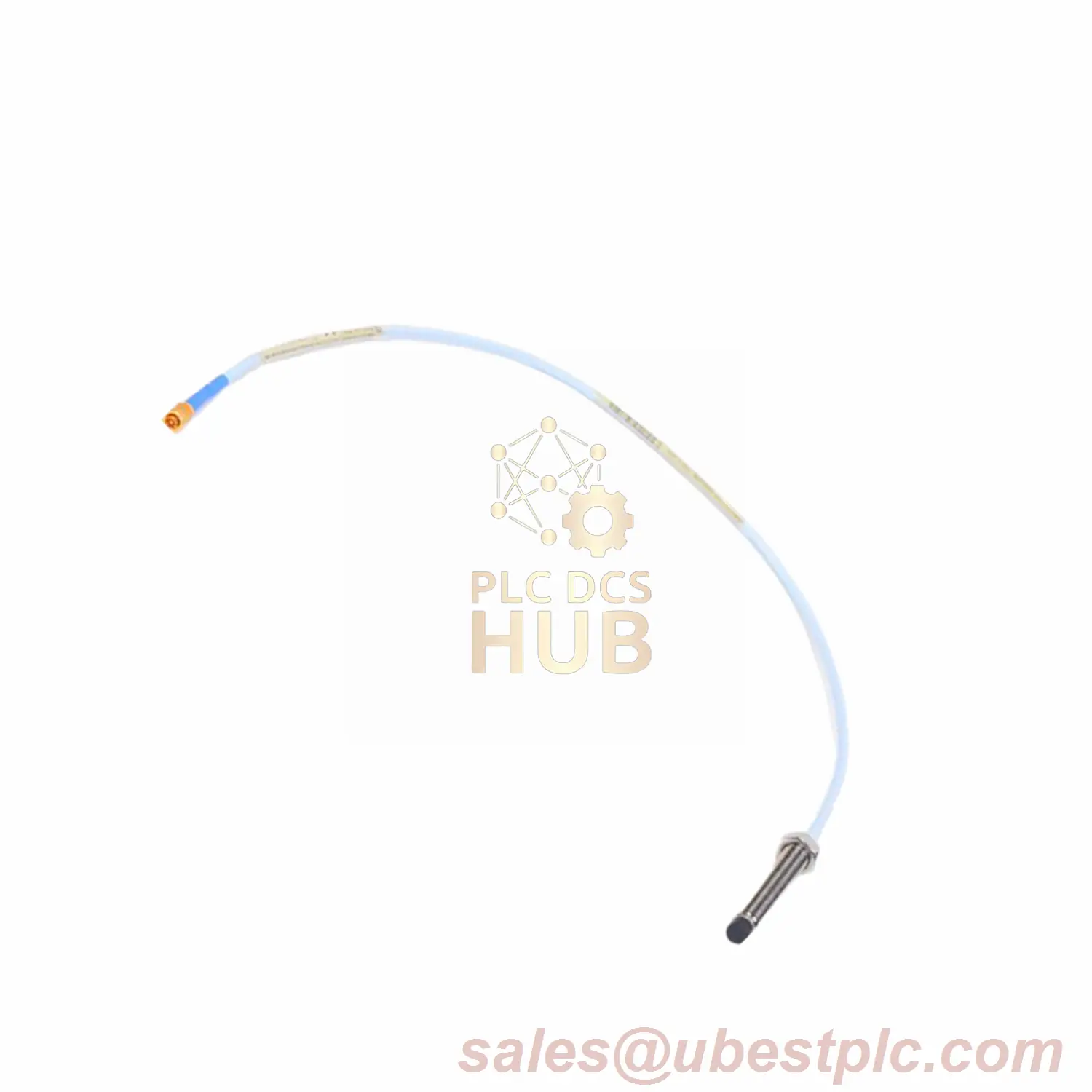

Bently Nevada 3300 XL Proximity Probe (330103-00-04-10-02-CN)
330103-00-04-10-02-CN: High-precision 8mm sensor with country-specific compliance, engineered for critical industrial vibration monitoring in regulated environments.
▲ Key Specifications
Model Suffix Decoding:
– 00: 0mm unthreaded section
– 04: 40mm stainless steel case
– 10: 1.0m (3.3 ft) cable length
– 02: ClickLoc connector + standard cable
– CN: Local regulatory certification
Electrical Performance:
- Output Impedance: 50Ω nominal
- Frequency Bandwidth: 0.5-12 kHz (±5%)
- Current Consumption: 4-20mA loop powered
Environmental Tolerance:
- Shock Resistance: 100g peak (11ms duration)
- EMI Protection: 150V/m field immunity (10kHz-1GHz)
- Cable Flex Life: >1 million cycles @ 25mm radius
▲ Operational Parameters
Target Requirements:
Minimum Conductivity: 1.4 MS/m (Carbon steel)
Surface Speed Limit: 80m/s (262 ft/s) continuous
Radial Clearance: 0.5-3.0mm (20-118 mils)
Dynamic Characteristics:
Phase Shift: <5° @ 10kHz
Linearity Error: ±1.5% FSO
Hysteresis: <0.3% of full scale
▲ Compliance & Safety
Explosive Atmosphere Ratings:
China Ex: Ex ia IIC T4 Gb (GB3836-2010)
SIL 2 Certified: IEC 61508/61511
Marine Approval: ABS Type Approval
Mechanical Safety:
Vibration Testing: 10-2000Hz @ 20g (3 axes)
Impact Test: IK08 protection level
Corrosion Resistance: 500hr salt spray (ASTM B117)
▲ Application Scenario
Deployed in nuclear plant coolant pumps for real-time shaft concentricity monitoring, maintaining ±0.1mm resolution under 150°C steam environments with full CNEA compliance.
Technical Support: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
