Description

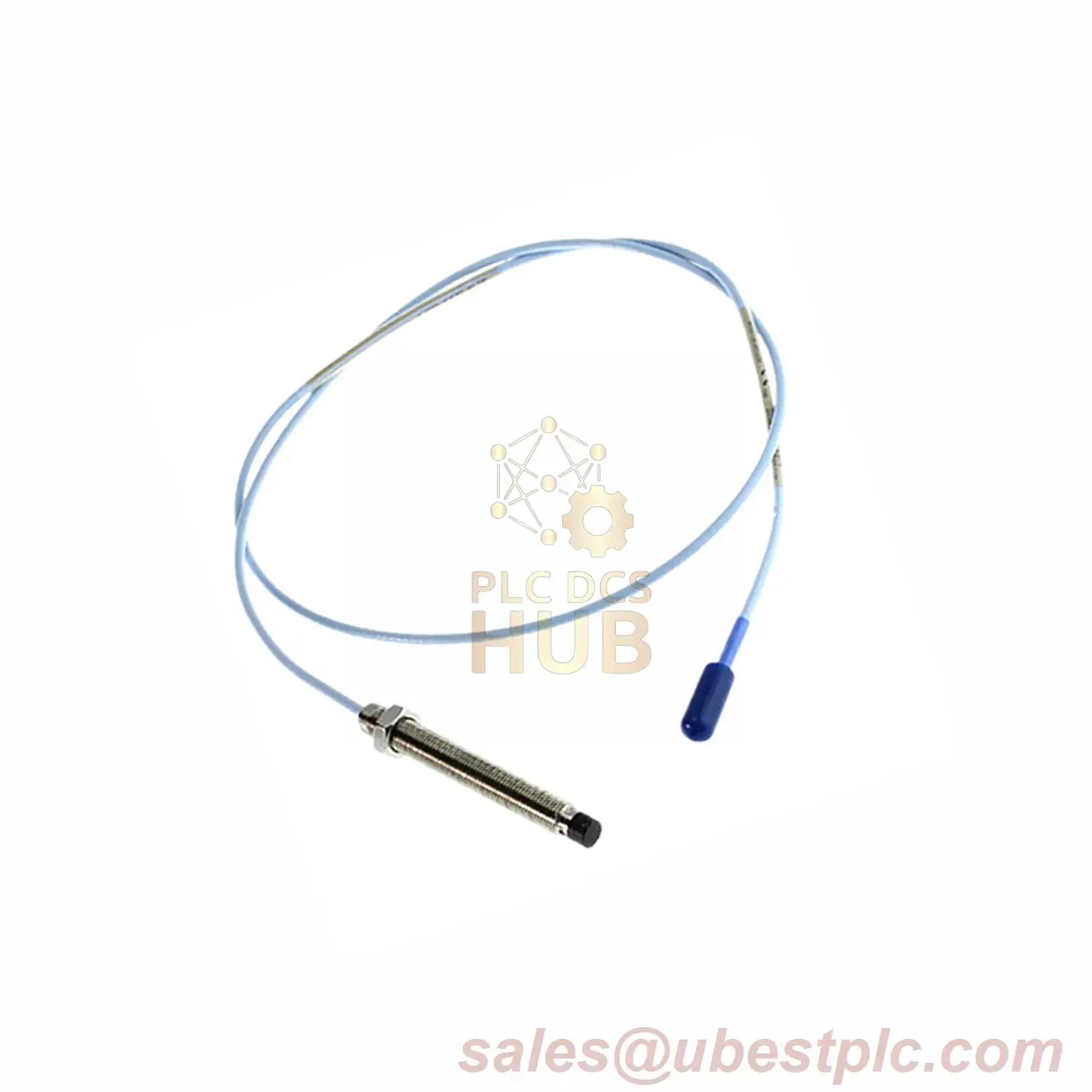

Bently Nevada 3300 XL Proximity Probe
Industrial-grade protected connector variant with 50mm compact housing. 330103-00-05-05-01-05 is designed for vibration monitoring in corrosive environments.
Model Configuration
- 00: 000mm Unthreaded
- 05: 50mm Case Length
- 05: 0.5m Cable
- 01: ClickLoc+Protector
- 05: Triple Certification
Core Performance
- 7.45Ω ±0.5 DC resistance stability
- 0.25-2.3mm linear detection range
- IP67 equivalent environmental sealing
Certification Details
- CSA: C22.2 No. 0-10
- ATEX: EN IEC 60079-0:2018
- IECEx: IEC 60079-11:2020
Enhanced Features
- Connector protector for chemical exposure
- 316L SST optional tip material
- 50g vibration resistance (10-2000Hz)
Installation Parameters
- Optimal mounting torque: 4.5-5.5 Nm
- Radial clearance tolerance: ±0.1mm
- Cable bend radius: >25mm
Industrial Implementations
- Marine engine thrust bearing monitoring
- Chemical processing agitators
- Food production conveyor systems
Special Configuration: Available with custom pressure testing (up to 10 bar)
Contact sales@ubestplc.com for hazardous area certification documents
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
