Bently Nevada – Proximity Probe Without Armor 330103-00-05-90-02-00

Description

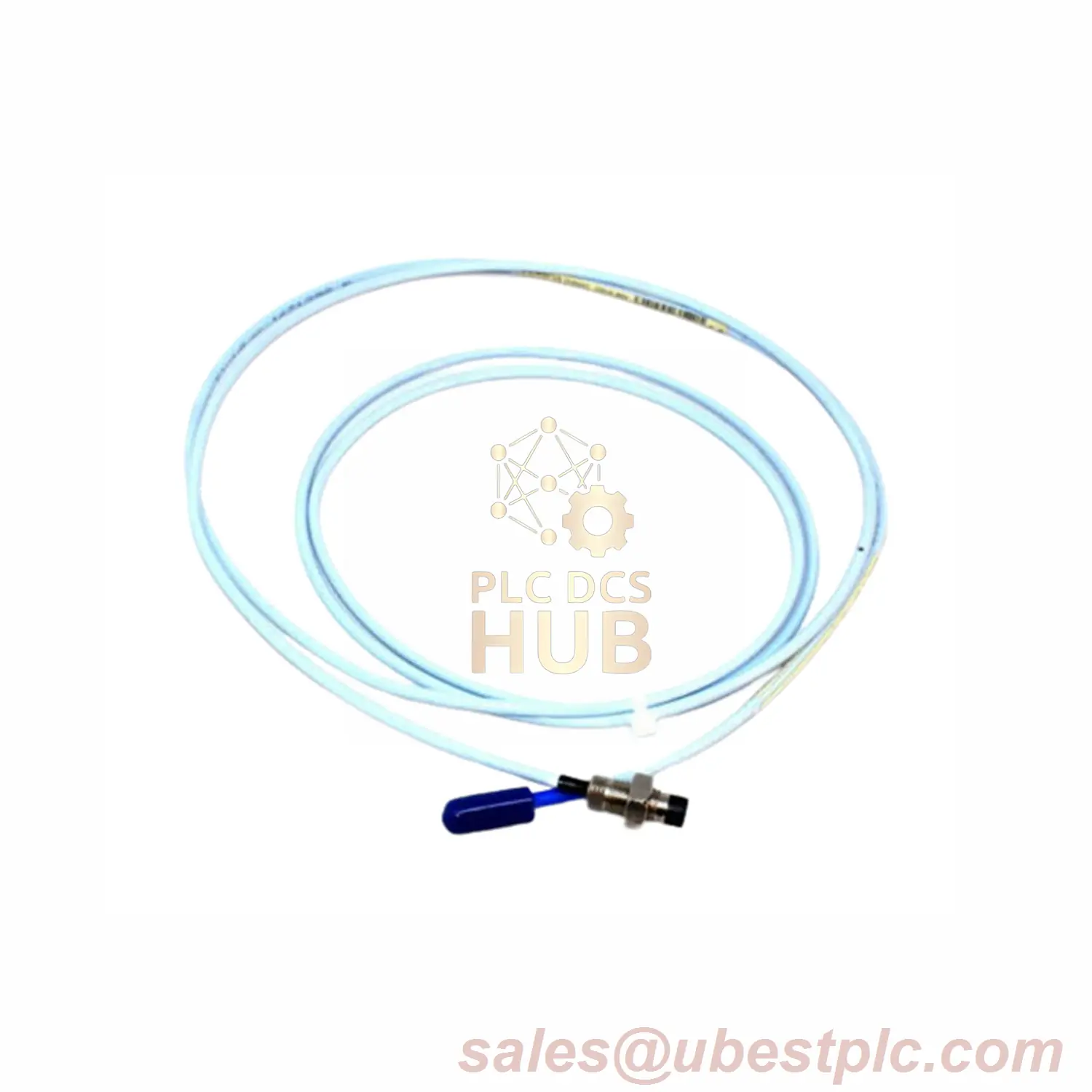

Bently Nevada 3300 XL 8mm Proximity Probe (PN: 330103-00-05-90-02-00)

330103-00-05-90-02-00: 9-meter industrial vibration sensor with standard coaxial cable, engineered for long-distance machinery monitoring in non-hazardous environments. Features M10x1 threading and corrosion-resistant PPS tip.

Technical Configuration

• Brand/Series: Bently Nevada 3300 XL
• Suffix Analysis:
  • 00: 0mm unthreaded segment
  • 05: 50mm stainless steel casing
  • 90: 9.0m (29.5ft) cable length
  • 02: ClickLoc connector (standard)
  • 00: No agency approvals required

Operational Parameters

• Electrical Profile:
  • DC Resistance: 9.87Ω ±0.5Ω @9m
  • Output Linearity: ±2% across 0.25–2.3mm range
  • Frequency Bandwidth: 0–10kHz (-3dB @25m)
• Mechanical Design:
  • Thread Lock Torque: 5.8 N·m maximum
  • Cable Tensile Strength: 45N axial load rating
  • Vibration Immunity: 15g peak (10–2000Hz)

Environmental Durability

• Thermal Performance:
  • Active Tip Range: -52°C to +218°C
  • Cable Flexibility: Maintains pliability at -40°C
• Chemical Resilience:
  • PPS Tip: Resists alkalis and solvents
  • Stainless Steel: Passivatable per ASTM A967

Installation Requirements

• Compatible Systems: 3300 XL monitors with 9m-range capability
• Shielding Protocol: Double-layer braided shield termination
• Grounding: Single-point chassis ground mandatory

Industry Applications

• Wind Turbines: Gearbox shaft alignment monitoring in nacelles
• Paper Manufacturing: Calendar roll vibration analysis
• Mining Conveyors: Oversized bearing health tracking

Package Details

• Included Components:
  • Pre-terminated 9m probe assembly
  • ClickLoc connector kit
  • ESD-safe storage tube

Custom Pressure Testing: Available upon request via sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
