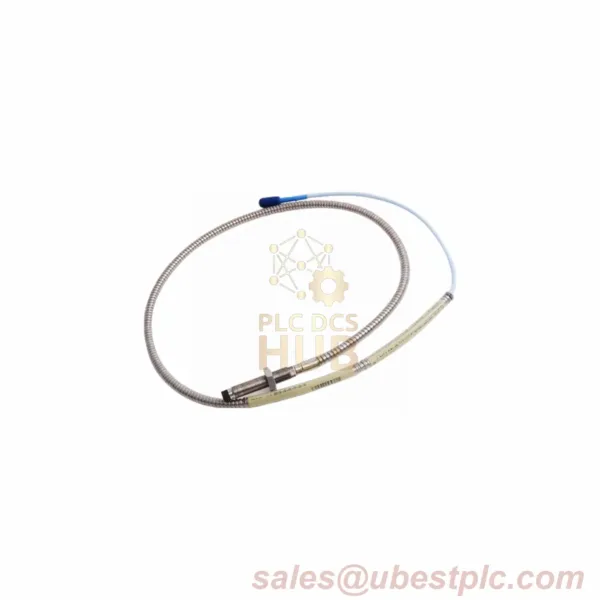

The Bently Nevada 330103-00-09-10-02-CN is a high-performance 8 mm proximity probe designed for industrial vibration monitoring. Featuring a PPS probe tip and stainless steel case, it ensures durability in harsh environments. Ideal for machinery health diagnostics, it supports linear ranges up to 2 mm and operates in extreme temperatures.
Model: 330103-00-09-10-02-CN
- 330103: 3300 XL 8 mm Probe, M10x1 Thread (Unarmored)
- 00: Unthreaded Length = 0 mm
- 09: Case Length = 90 mm
- 10: 1.0 Meter Cable
- 02: Miniature Coaxial ClickLoc Connector
- CN: Country-Specific Approvals
Technical Data
- Brand: Bently Nevada
- Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: ±0.50 Ω (DC Resistance: 7.59 Ω)
- Output Signal: -1 to -17 Vdc (Linear)
- Operating Temp: -52°C to +177°C (Standard); Up to +260°C (Cable)
- Cable: 1.0 m (3.3 ft), Max Wiring: 305 m (1,000 ft)
- Weight: 323 g/m (11.4 oz)
Installation & Compatibility
- Thread: M10x1 (Max Engagement: 15 mm)
- Wiring: 16–24 AWG shielded triad cable
- Compatible with intrinsically safe (ia) and non-incendive (nA/ec) systems per ATEX/IECEx standards.
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T5-T1 Ga, Class I/II/III
- Compliance: IEC 68-2-3 (Humidity)
Packaging & Warranty
- Includes: Probe, documentation, connector
- Warranty: 1-year limited
Applications
Used in turbines, pumps, and compressors for vibration monitoring. Example: Gas turbine shaft displacement measurement at -30°C to +200°C.
Contact: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
