Description
Product Overview

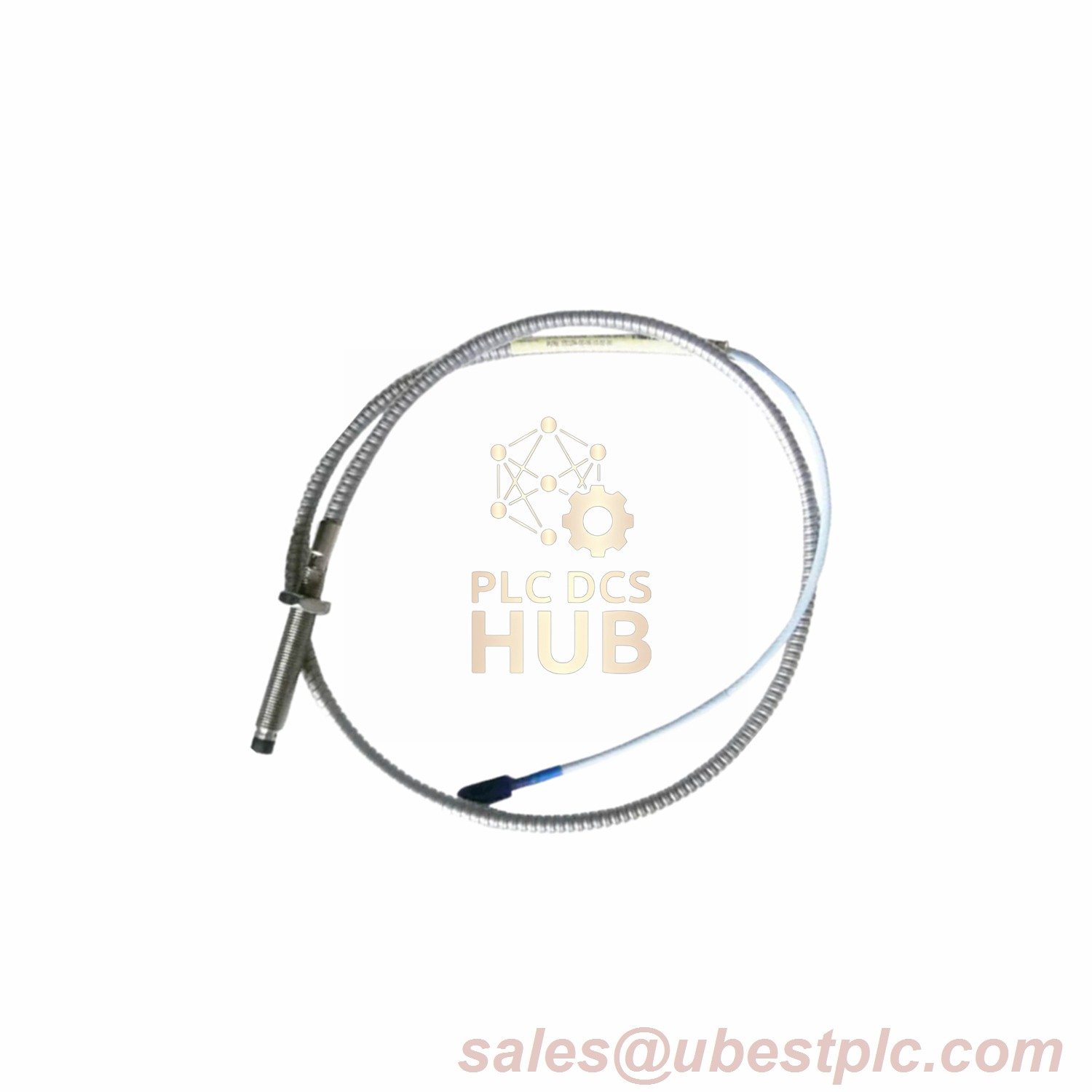

The Bently Nevada 330140-08-15-02-00 is a heavy-duty 8mm vibration probe with a 1.5m armored cable and 0.8″ stainless steel housing. Designed for industrial applications, it operates across -52°C to +260°C, delivering precision monitoring for rotating machinery in non-hazardous environments.
Technical Specifications
Manufacturer/Model: Bently Nevada 330140-08-15-02-00
Suffix Code Breakdown:
– 08: 20.3mm (0.8″) case length
– 15: 1.5m (4.9ft) total cable length
– 02: ClickLoc connector + standard cable
– 00: No agency certifications
Core Performance:
DC Resistance: 7.73Ω ±0.5 @ 1.5m
Linear Range: 0.25-1.75mm (±0.025mm)
Frequency Response: 0.5Hz-10kHz (±3dB)
Temperature Limits:
– Probe Tip: -52°C to +218°C
– Cable Assembly: -51°C to +260°C
Seal System: Dual Viton® O-rings (330N pull strength)
FAQ
Q: Is this probe explosion-proof certified?
A: No – Agency Approval Option 00 (non-hazardous use only)
Q: Can I upgrade to FluidLoc™ cable?
A: Yes – Optional FluidLoc™ available for oil environments
Contact Information
For technical support and COO requests:
Email: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
