Product Overview

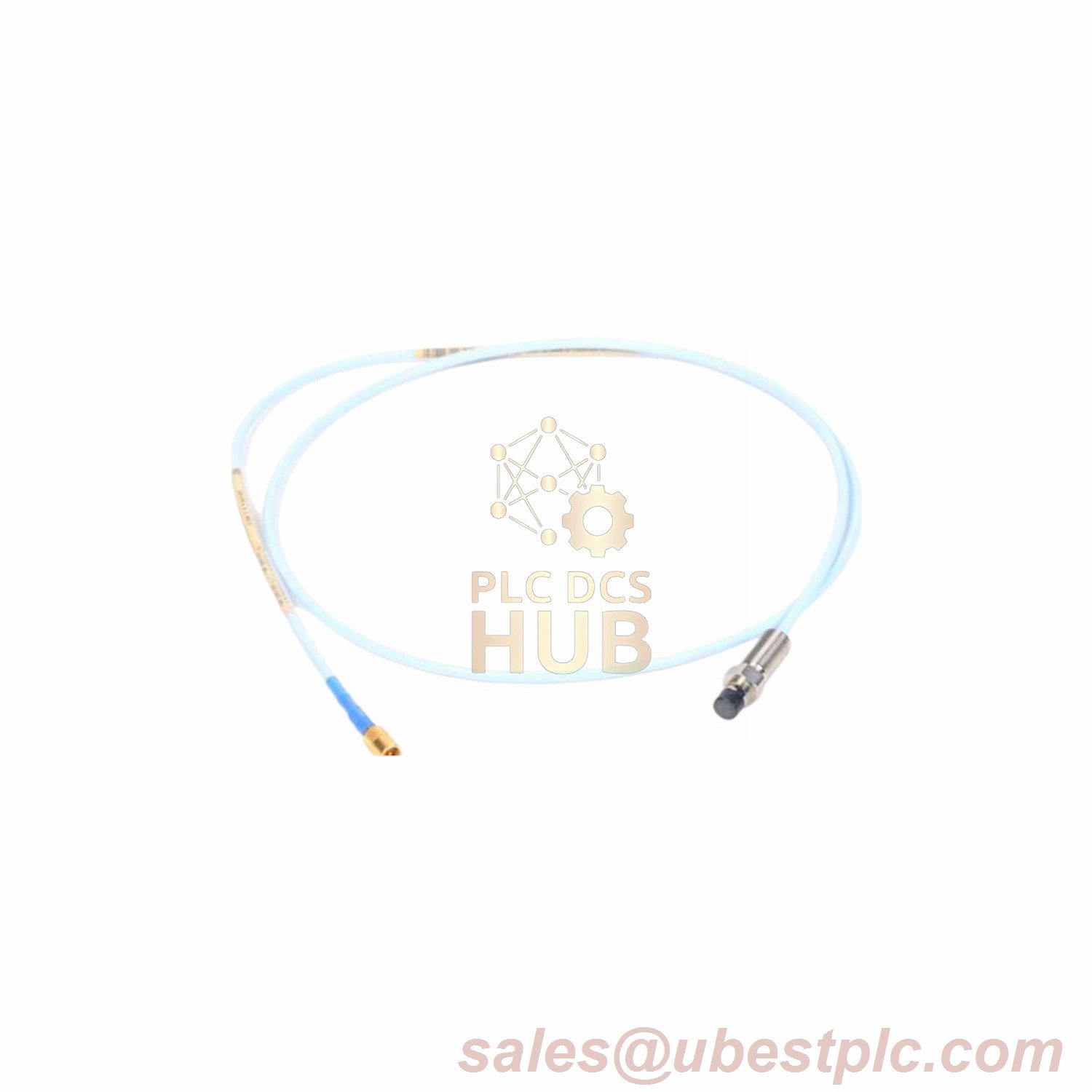

The Bently Nevada 330140-08-50-02-05 is an ATEX/CSA/IECEx-certified 8mm vibration probe with a 5.0m armored cable and 0.8″ stainless steel housing. Designed for hazardous environments, it operates from -52°C to +260°C, providing precision monitoring for critical equipment in oil/gas, power generation, and heavy industrial applications.
Technical Specifications
Manufacturer/Model: Bently Nevada 330140-08-50-02-05
Suffix Code Breakdown:
– 08: 20.3mm (0.8″) case length
– 50: 5.0m (16.4ft) total cable length
– 02: ClickLoc connector + standard cable
– 05: CSA/ATEX/IECEx certifications
Core Performance:
DC Resistance: 8.73Ω ±0.5 @ 5.0m
Linear Range: 0.25-1.75mm (±0.025mm)
Frequency Response: 0.5Hz-10kHz (±3dB)
Temperature Limits:
– Probe Tip: -52°C to +218°C
– Cable Assembly: -51°C to +260°C
Seal System: Dual Viton® O-rings (330N retention)
FAQ
Q: What certifications are included?
A: ATEX II 1/2G Ex d IIC T4, CSA Cl I Div 1, IECEx Ex d
Q: Can I use this with non-5m systems?
A: No – designed exclusively for 5m Proximitor sensors
Contact Information
For certification documents and technical support:
Email: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
