Bently Nevada – Proximity Probes Without Armor 330191-00-40-05-CN

Description

Overview

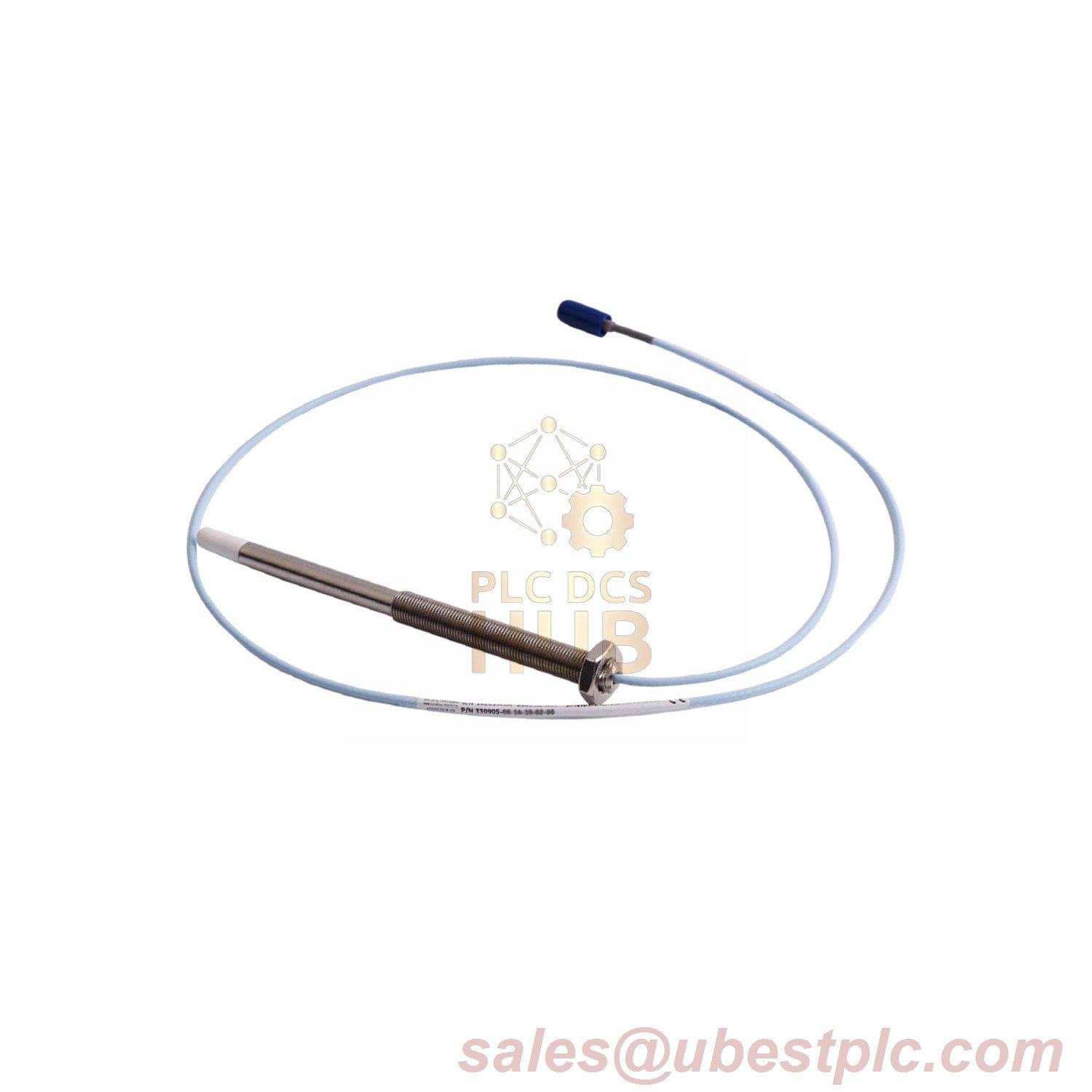

The Bently Nevada 330191 8mm ETR Probe (Part No. 330191-00-40-05-CN) is designed for precision vibration monitoring in hazardous industrial environments. Featuring a 0.5-meter cable and 3/8-24 UNF thread, this probe integrates patented TipLoc and CableLoc technologies for secure connections and enhanced durability. Certified for country-specific safety standards (CN), it is ideal for machinery requiring robust performance in explosive or high-temperature conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 330191 3300 XL 8mm ETR Probe (Unarmored)
• 330191-00-40-05-CN Breakdown:
  • 00: 0.0-inch unthreaded length
  • 40: 4.0-inch overall case length
  • 05: 0.5-meter cable (1.6 feet)
  • CN: Country-specific agency approval
• Electrical Parameters:
  • DC Resistance: 7.48 Ω ±0.48 (0.5m cable)
  • Power Supply: -23.5 Vdc to -26 Vdc (barrier-compatible)
  • Output Resistance: 52 Ω
  • Sensitivity: <1.8 mV/V input voltage fluctuation
• Mechanical Design:
  • Tip Material: Polyphenylene sulfide (PPS)
  • Case Material: AISI 304L stainless steel
  • Connector: Gold-plated beryllium copper
  • Max Connector Torque: 0.56 N•m (5 in•lbf)

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
