Description
Product Identity & Suffix Analysis

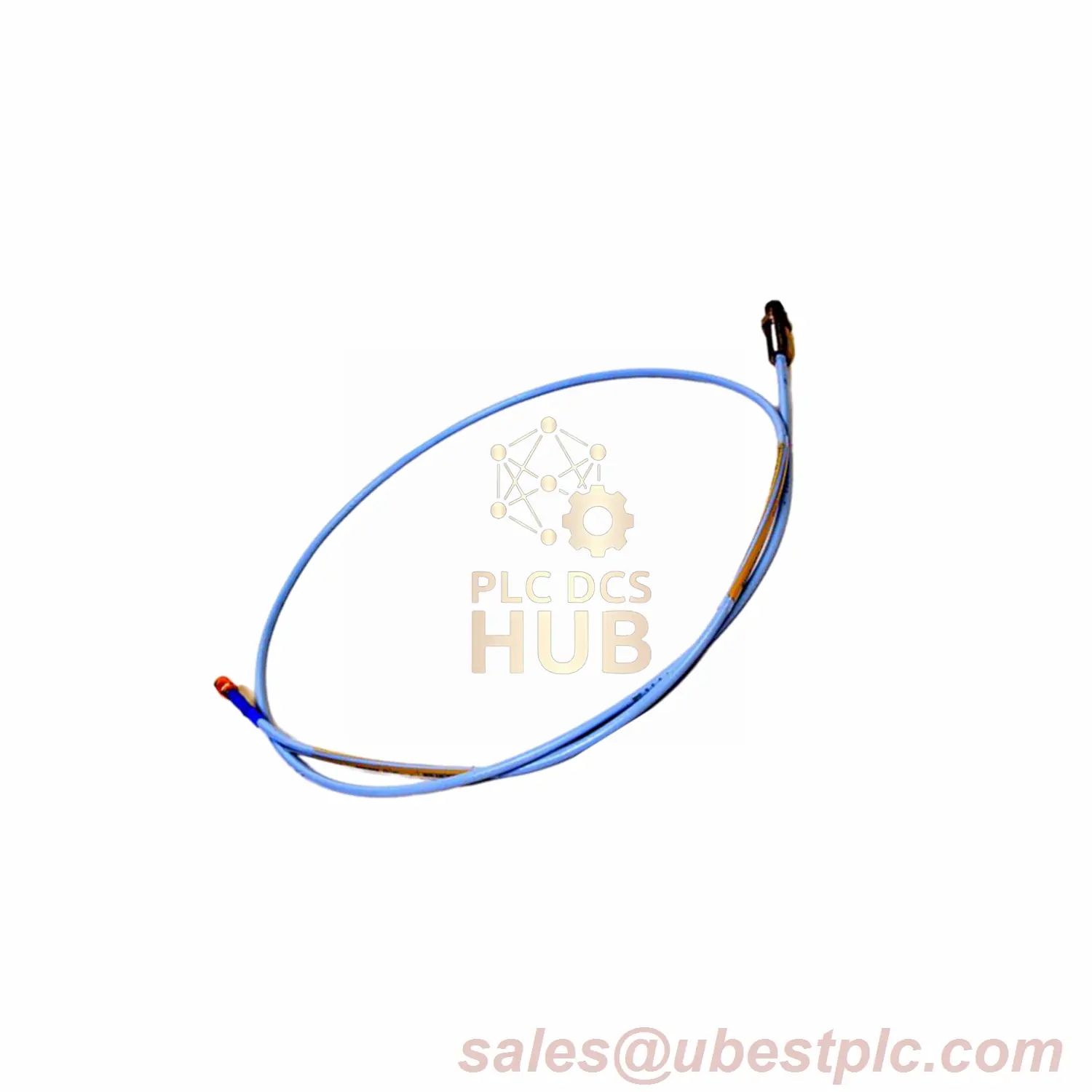

Bently Nevada 330905-00-11-05-02-00 is a factory-fresh 3300 NSv Proximity Probe with 12-month warranty. Equipped with M10X1 threading, 110mm case length, and 0.5m cable. Suffix decoded: -00- (0mm unthreaded), -11- (110mm case), -05- (0.5m/20″), -02- (ClickLoc connector), -00 (no approvals).
Precision Engineering Metrics for 330905-00-11-05-02-00
- Electrical Profile: DC resistance 4.0Ω±0.5, shield 0.066Ω/m, 69.9pF/m capacitance stability.
- Environmental Resilience: Operates at -52°C to +177°C, 25.4mm bend tolerance, Viton O-ring pressure sealing.
- Installation Precision: Max torque 0.56N·m, 15mm thread grip, optimized gap 1.0mm (40 mils).
Performance Mastery
Outclasses 3000-series 190 probes with 7.87V/mm output (±12.5% tolerance) and ±0.06mm linear precision. Direct upgrade for 3300 RAM systems. Features PPS tip (chemical-resistant) and 304 SST body for harsh environments.
Certified Operational Excellence
Guarantees 0-10kHz signal integrity over 305m wiring. Compatible with targets ≥8.9mm (13mm ideal). Thread torque range 7.5-22.6N·m. IP67-grade sealing (factory-validated).
