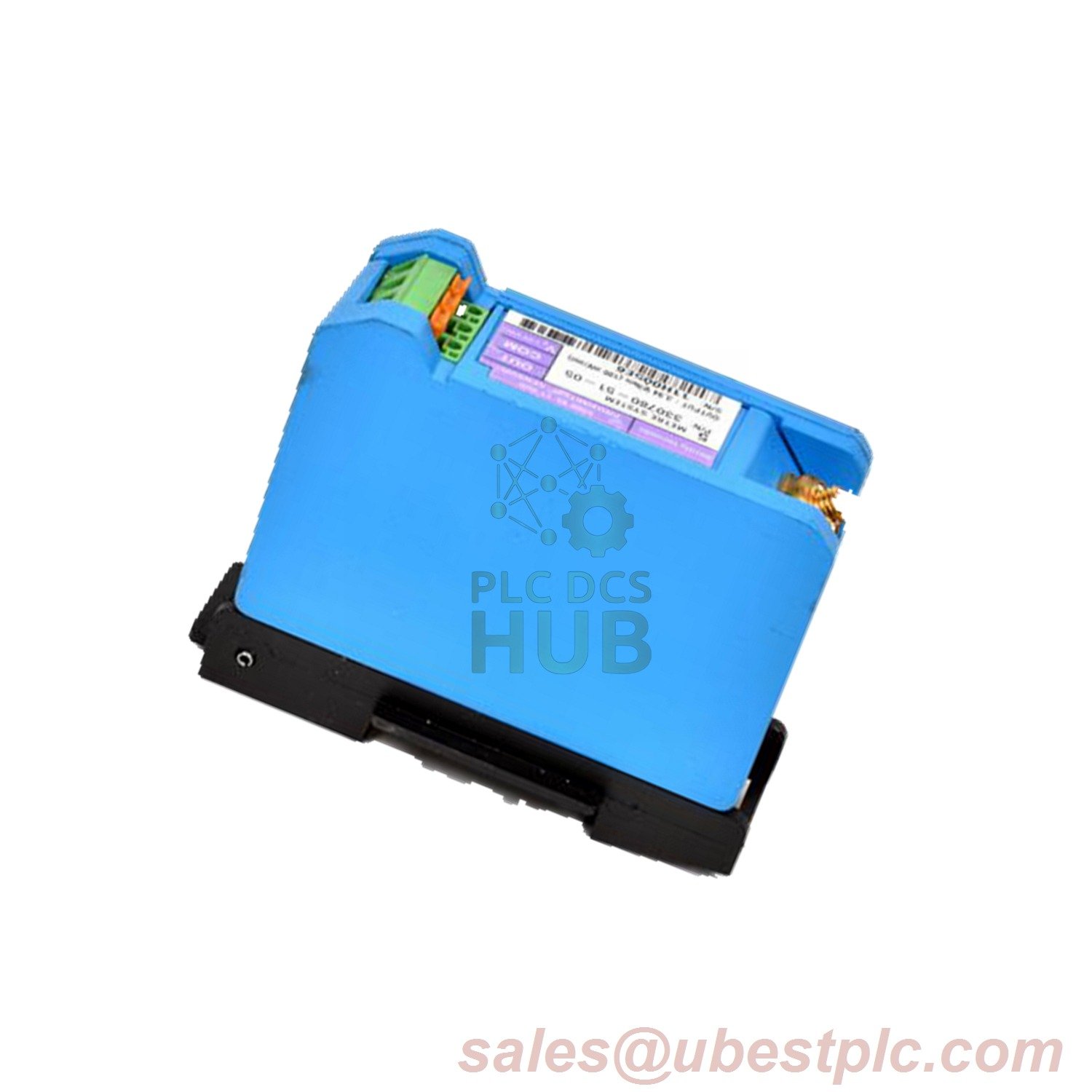

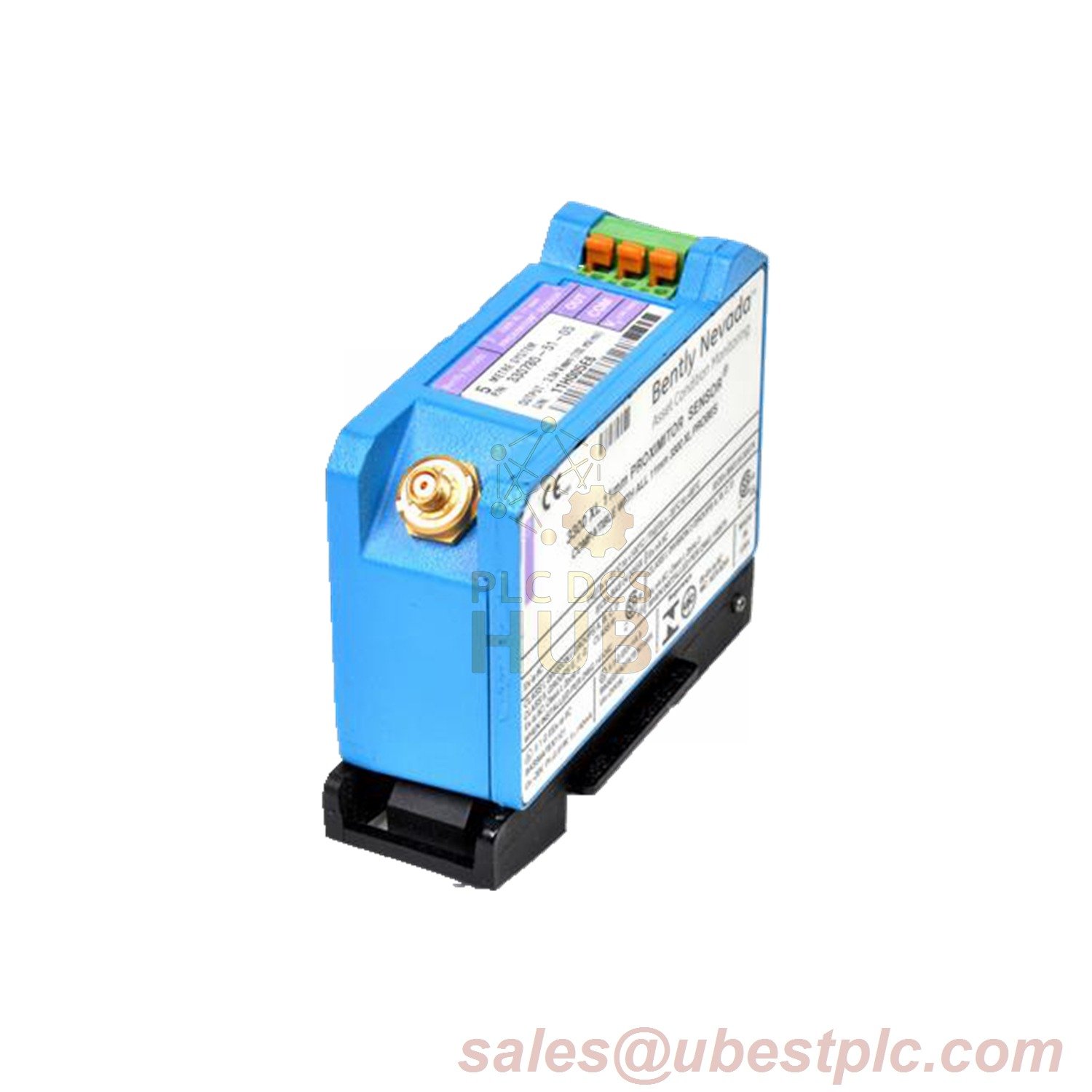

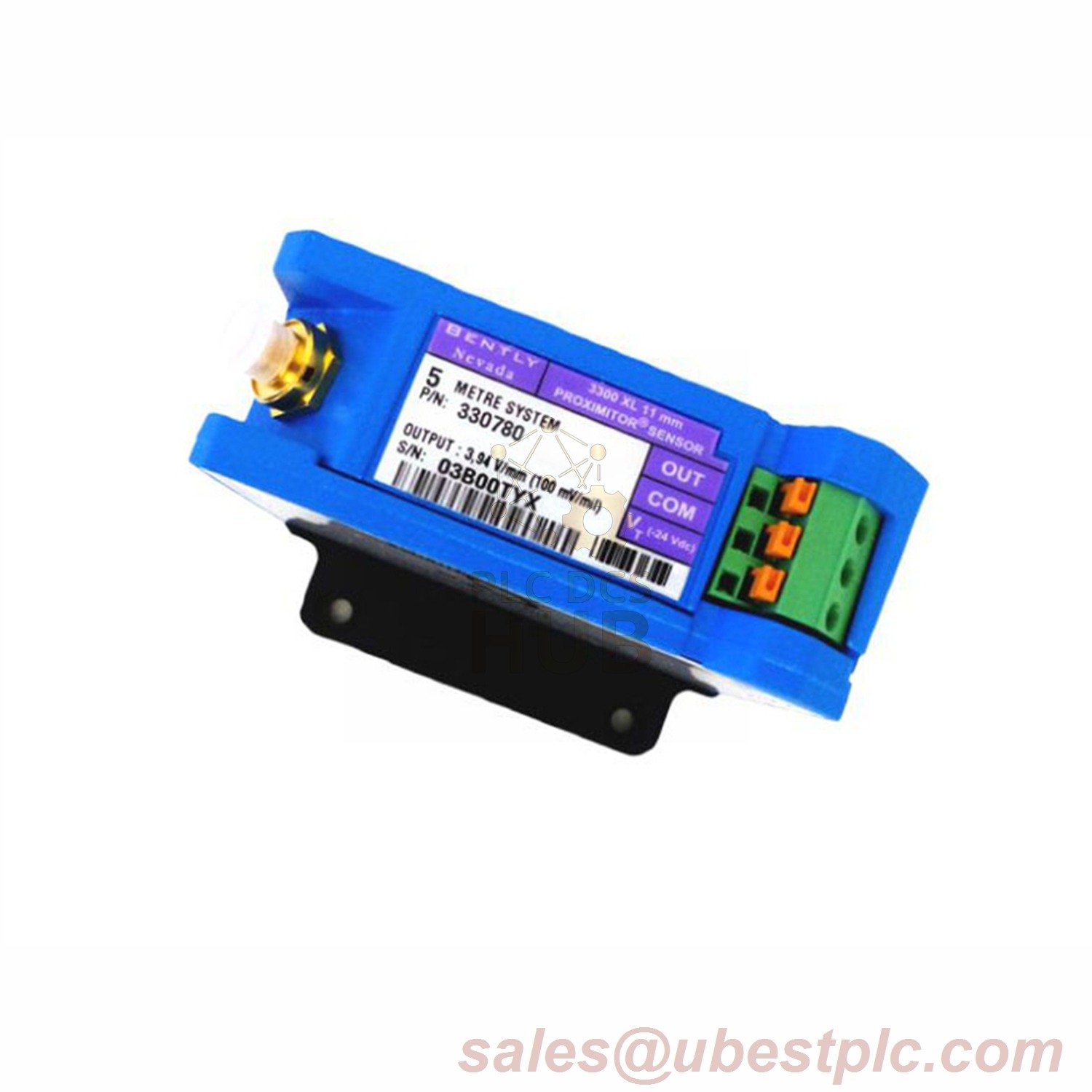

The Bently Nevada 330780-51-CN 3300 XL 11 mm Proximitor Sensor is a regionally certified solution for industrial monitoring. Designed with a slim profile for high-density DIN-rail or panel mounting, this 5.0-meter (16.4 ft) sensor features RFI/EMI immunity and SpringLoc terminals for CE compliance without shielded conduit. Pre-calibrated for AISI 4140 steel with optional material calibration.
Technical Specifications
- Model: 330780-51-CN
- Certifications: CN Country Specific
- Dimensions: 6.35cm (H) × 6.12cm (W) × 8.13cm (D)
- Mounting: DIN-rail (panel-mount compatible)
- System Length: 5.0 m (16.4 ft) incl. extension cable
- Electrical:
- Power: -17.5 Vdc to -26 Vdc (12 mA max)
- Output Resistance: 50 Ω
- Sensitivity: <2 mV/V
- Environmental:
- Operating Temp: -52°C to +100°C (-62°F to +212°F)
- Storage Temp: -52°C to +105°C (-62°F to +221°F)
- Humidity: 100% condensing (IEC 68-2-3 tested)
- Materials: A380 aluminum housing
