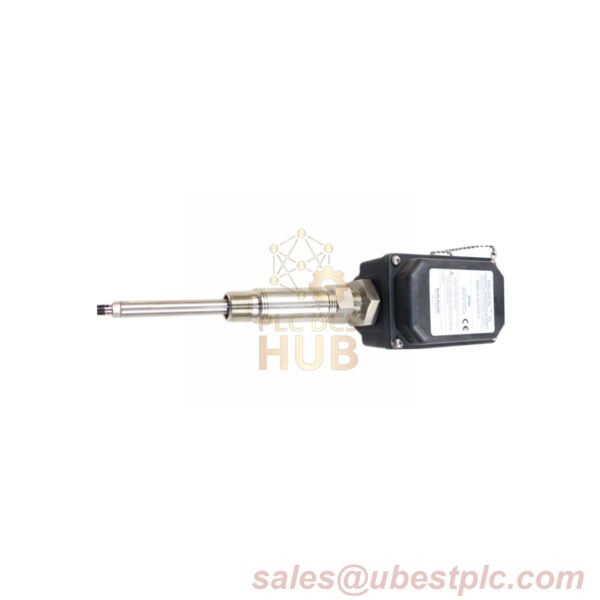

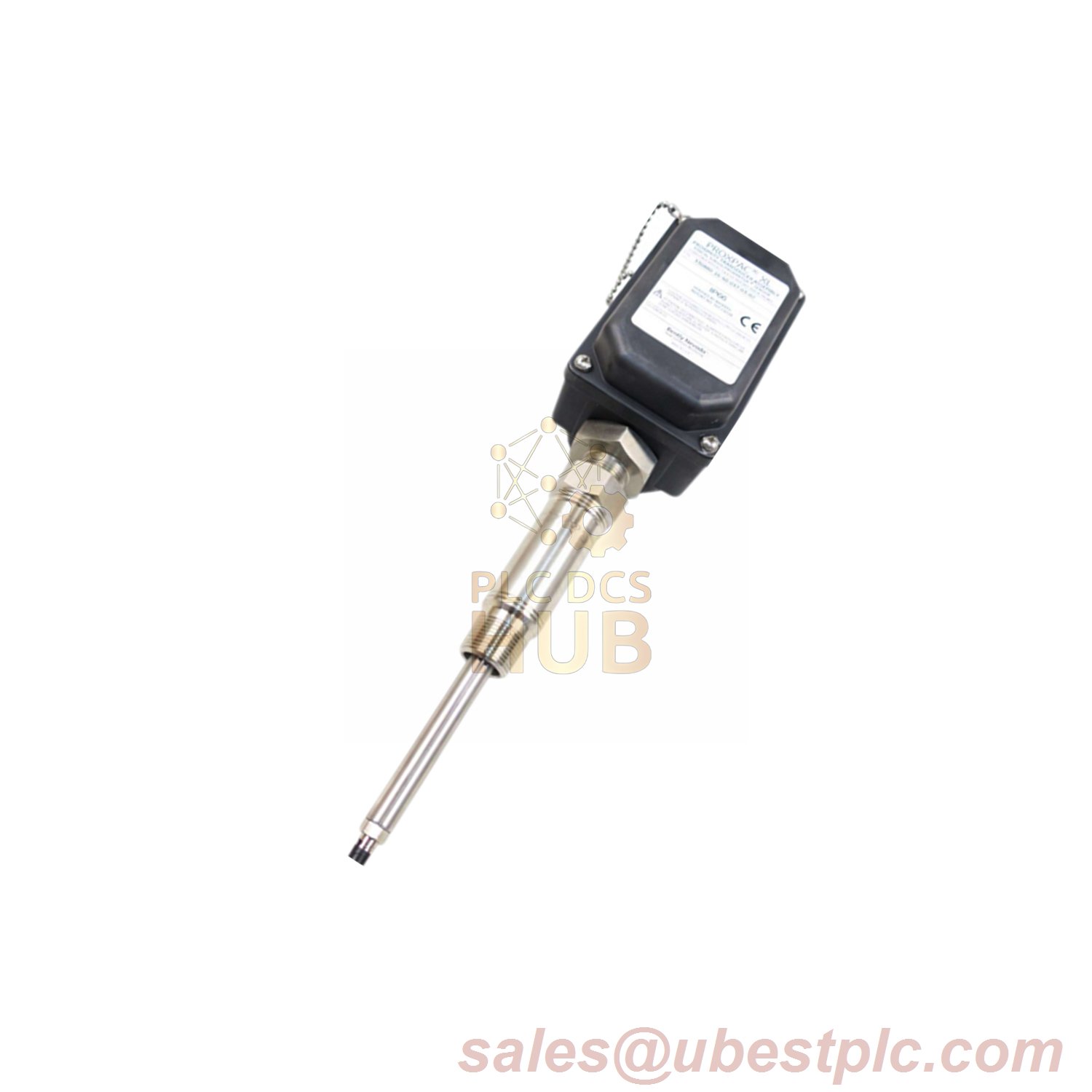

The Bently Nevada 330880-28-00-085-02-02 PROXPAC XL Proximity Transducer is a multi-certified industrial sensor manufactured in the U.S.A. Featuring a 3300 XL 8 mm probe with multiple hazardous area approvals, this unit includes two 3/4-14 NPT fittings and an 85 mm penetration depth. Built with UV-resistant PPS housing and AISI 304 stainless steel components, it meets IP66 and BASEEFA impact standards. COO available upon request.
Technical Data
- Manufacturer: Bently Nevada
- Model: 330880-28-00-085-02-02
- Suffix Configuration:
- A (Probe): 28 – 3300 XL 8 mm (multiple approvals)
- B (Standoff): 00 – No adapter
- C (Penetration): 085 – 85 mm (3.35 in)
- D (Fittings): 02 – Two 3/4-14 NPT fittings + plug
- E (Mounting): 02 – 3/4-14 NPT threads
- Weight: 1.44 kg (3.2 lb)
- Key Materials:
- Housing: Conductive PPS thermoplastic
- Probe Tip: Polyphenylene Sulfide (PPS)
- Sleeve: AISI 304 stainless steel
- Electrical Performance:
- Voltage Range: -17.5 Vdc to -26 Vdc
- Linear Output: 7.87 V/mm ±5%
- Frequency Response: 0-10 kHz (±3 dB)
- Environmental Ratings:
- Temperature: -51°C to +177°C (-60°F to +350°F)
- Impact Resistance: 7 J (9.5 ft·lb) at ambient
