Description

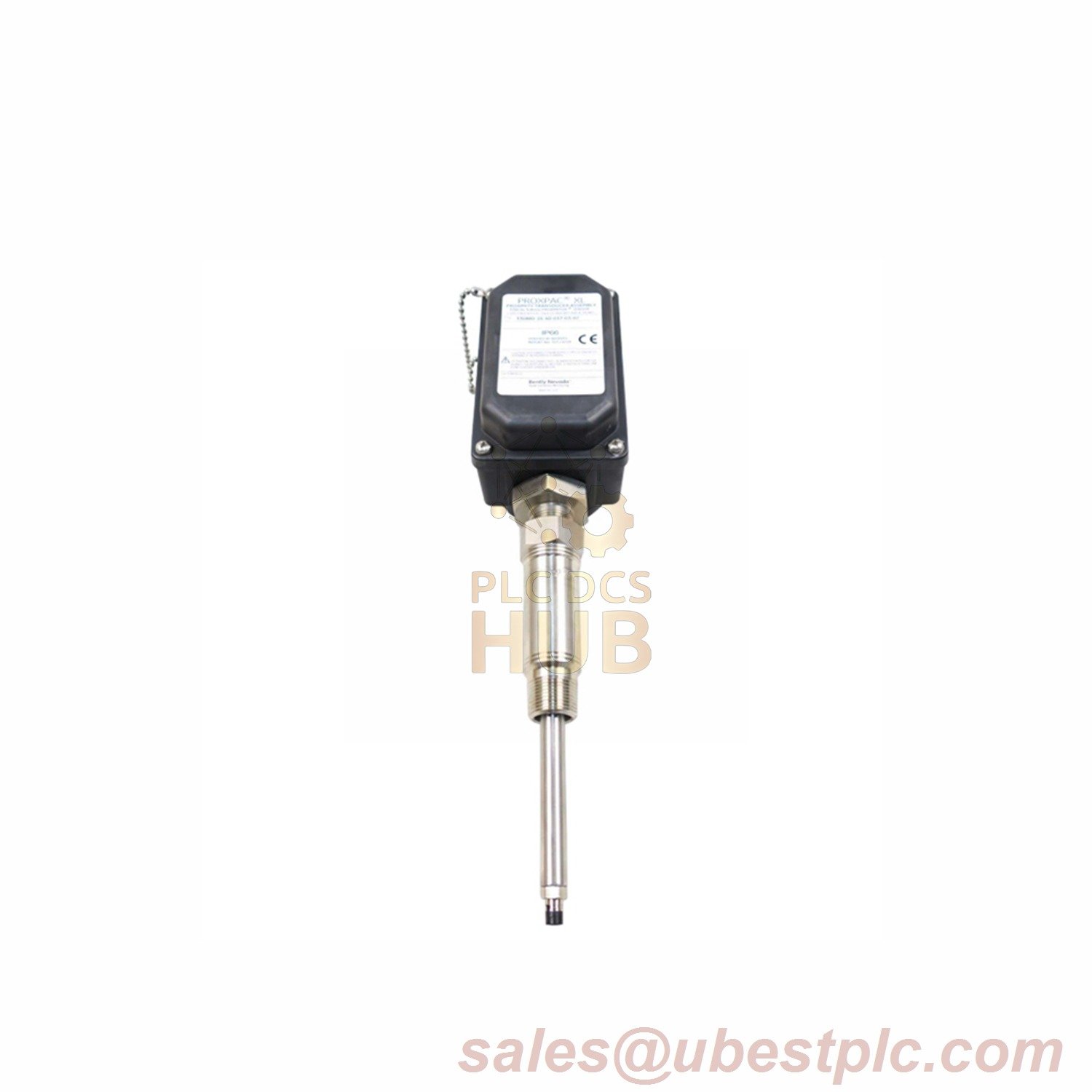

Bently Nevada PROXPAC XL Proximity Transducer
Optimized for precision shaft monitoring, the Bently Nevada 330881-28-00-100-06-02 features a 100mm penetration probe and 3/4-14 NPT to 1/2-14 NPT reducer fittings. With BASEEFA-certified IP66 housing and ultra-wide -51°C to +177°C operational range, this transducer delivers reliable vibration measurement in extreme conditions. Includes CSA/ATEX-compliant impact resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330881-28-00-100-06-02 (Suffix: 28=8mm Probe, 00=No Adapter, 100=100mm Penetration, 06=Reducer Fittings) |
| Electrical Isolation | 75Ω Triaxial FEP Cable |
| Mechanical Load | 912 N (205 lbf) housing support capacity |
| Sealing System | Neoprene O-ring + Extra Soft Silicone Vibration Isolation |
| Compliance | BASEEFA T07/0709, CSA 7J Impact Certified |
| Minimum Target | Ø15.2mm Flat Surface |
Key Advantages
- NPT reducer fittings package for flexible installation
- Gold-plated ClickLoc® connector with 330N pull-out resistance
- UV-stable PPS housing with conductive EMI shielding
- ±0.025mm linearity across 0°C to +45°C
Contact: For COO or technical support, email sales@ubestplc.com.
