Description
Description

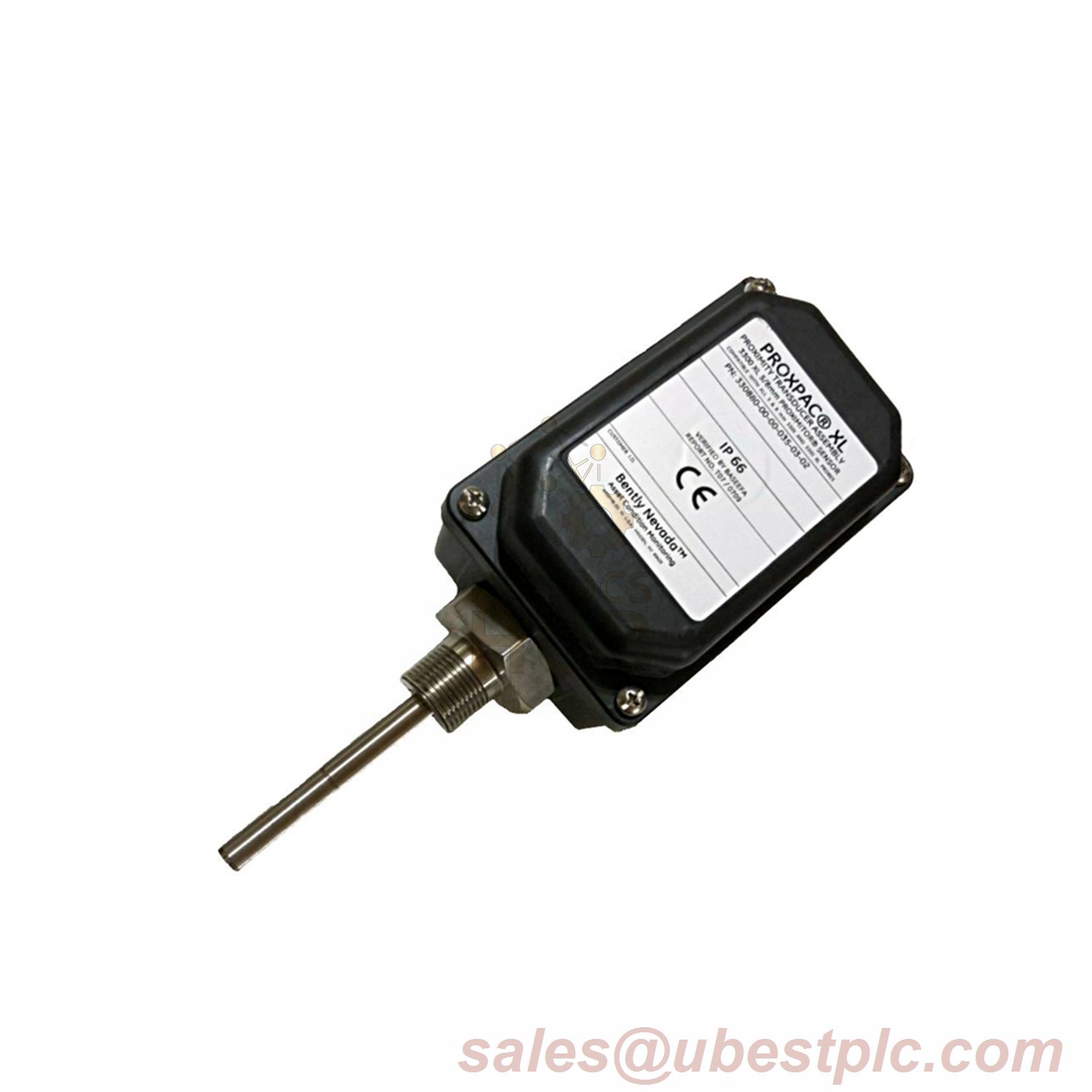

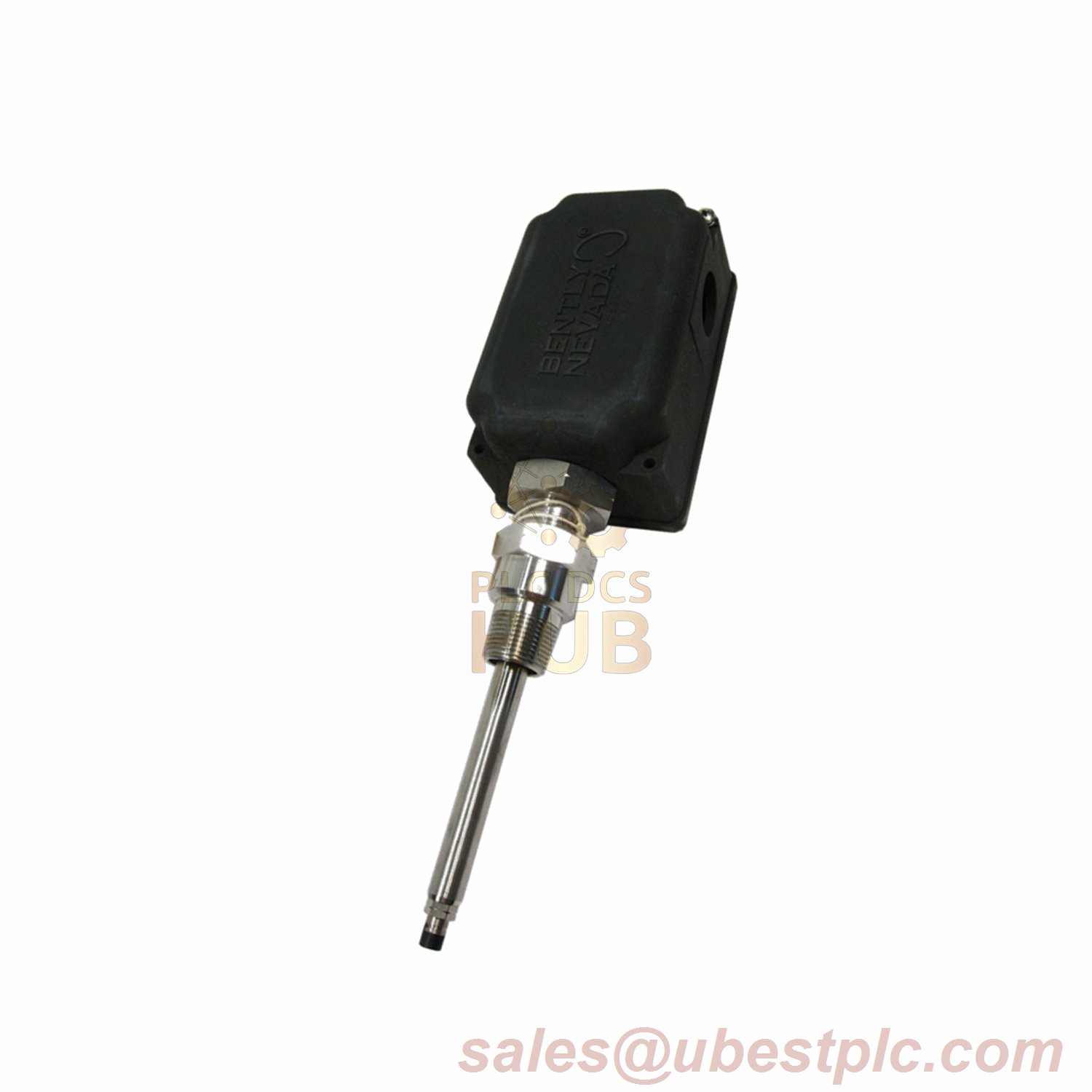

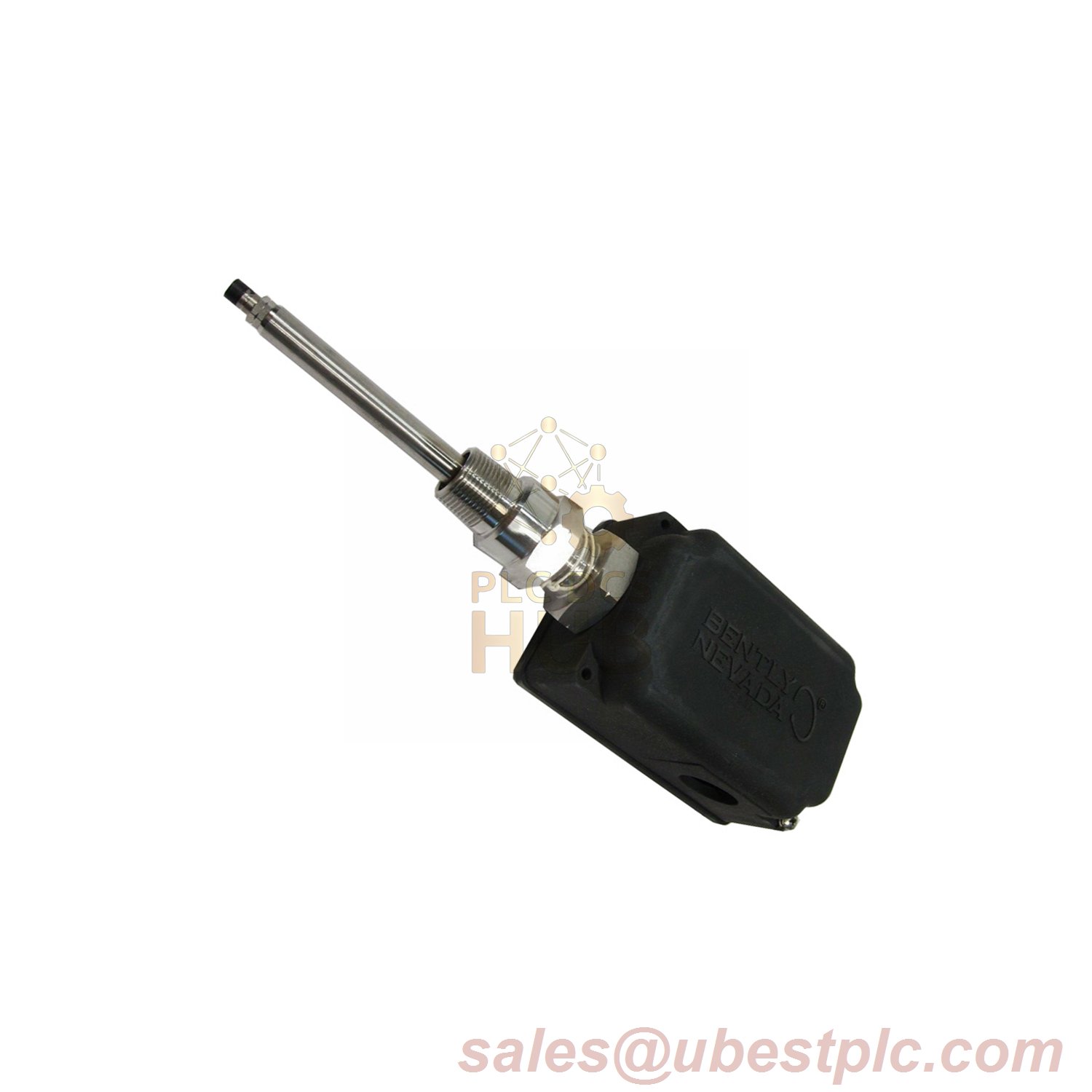

The 330881-28-04-050-06-02 is a rugged PROXPAC XL transducer designed for hazardous area vibration monitoring. Featuring a 50 mm probe penetration, 40 mm standoff adapter, and 3/4-14 NPT fittings, it operates in -51°C to +177°C extremes with BASEEFA/CSA certifications. Ideal for critical machinery in explosive environments requiring API 670 compliance.
Technical Specifications
| Model | 330881-28-04-050-06-02 |
|---|---|
| Probe Type | 3300 XL 8 mm (Multiple Approvals) |
| Standoff Adapter | 40 mm |
| Probe Penetration | 50 mm (1.97 in) |
| Fittings | 3/4-14 NPT fitting, reducer, two plugs |
| Housing Material | UV-resistant PPS with conductive fibers |
| Weight | 1.44 kg (3.2 lb) |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) |
| Linear Range | 2 mm (80 mils) | Gap Setting: 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (±3 dB) up to 305 m (1000 ft) cabling |
