Description
Description

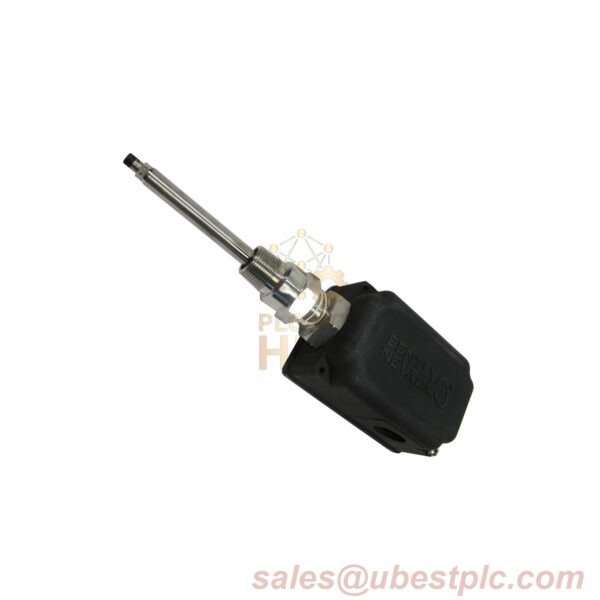

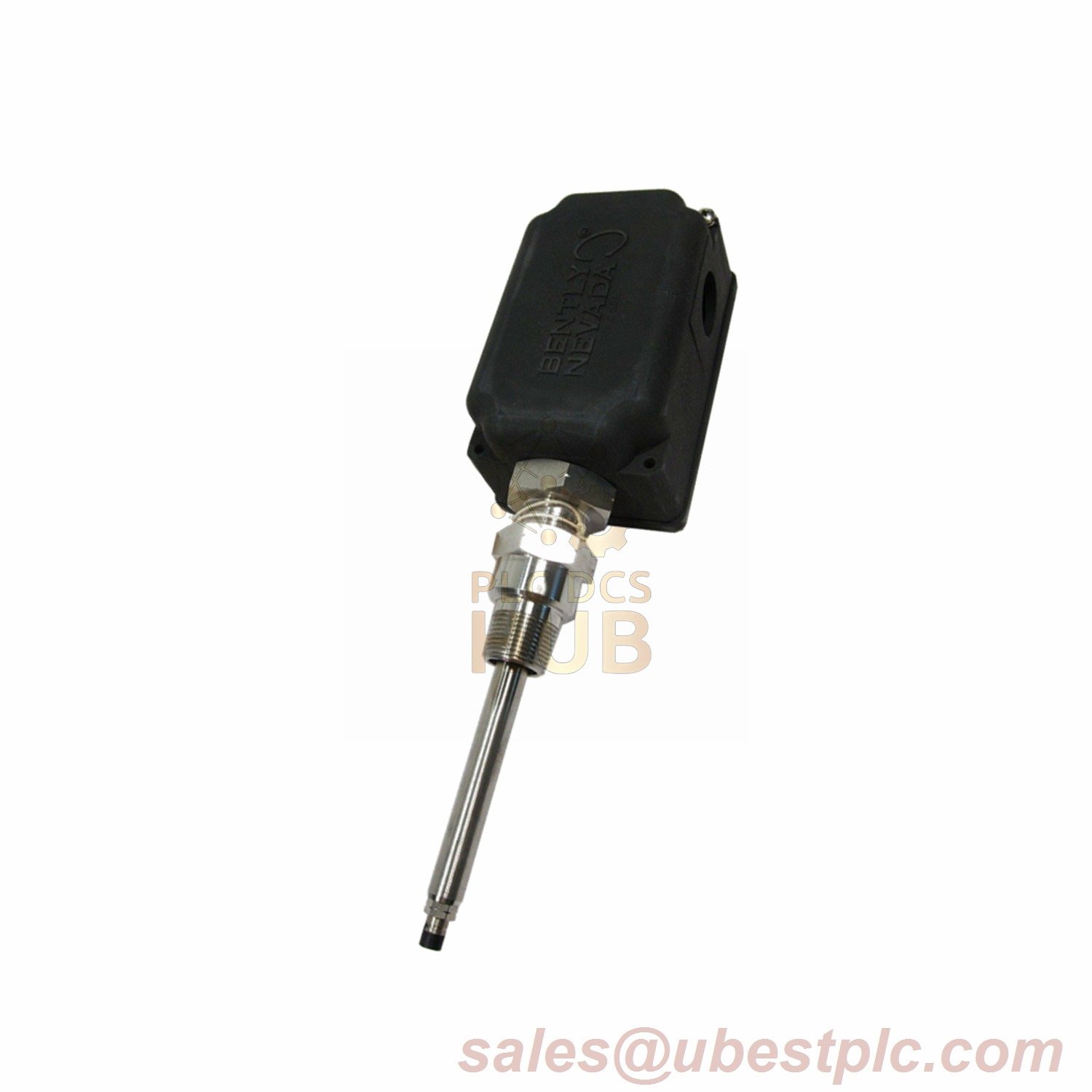

The Bently Nevada 330881-16-05-070-00-02 PROXPAC XL Proximity Transducer is a precision-engineered monitoring solution made in the U.S.A. Featuring a UV-resistant PPS housing and 304 stainless steel components, this transducer meets IP66 and BASEEFA impact certifications. Includes a 3300 XL 8 mm probe with gold-plated ClickLoc connector and 1-metre triaxial cable. Optional COO available upon request.
Technical Data
- Manufacturer: Bently Nevada
- Model: 330881-16-05-070-00-02
- Suffix Configuration:
- A (Probe): 16 – 3300 XL 8 mm probe (no approvals)
- B (Standoff): 05 – 50 mm adapter
- C (Penetration): 070 – 70 mm probe length
- D (Fittings): 00 – No fittings (includes two plugs/washers)
- E (Mounting): 02 – 3/4-14 NPT threads
- Weight: 1.44 kg (3.2 lb)
- Materials:
- Housing: Glass-reinforced PPS with conductive fibers
- Probe Tip: Polyphenylene Sulfide (PPS)
- Sleeve: AISI 304 stainless steel
- Electrical Specs:
- Power: -17.5 Vdc to -26 Vdc (12 mA max)
- Linear Range: 2 mm (80 mils)
- Frequency Response: 0-10 kHz (±3 dB)
- Environmental Limits:
- Operating Temp: -51°C to +177°C (-60°F to +350°F)
- Impact Resistance: 7 Joules (9.5 ft·lb) at ambient
Contact Information
For technical specifications or bulk orders:
Email:
sales@ubestplc.com,
Critical Notes:
- Avoid temperatures below -34°C (-29°F) to prevent seal failure
- Minimum target size: 15.2 mm (0.6″) diameter
- Torque requirements: 29.5 N·m (260 in·lb) retaining nut / 39.3 N·m (350 in·lb) locknut
