Description
Rugged Industrial Probe with Armor Protection

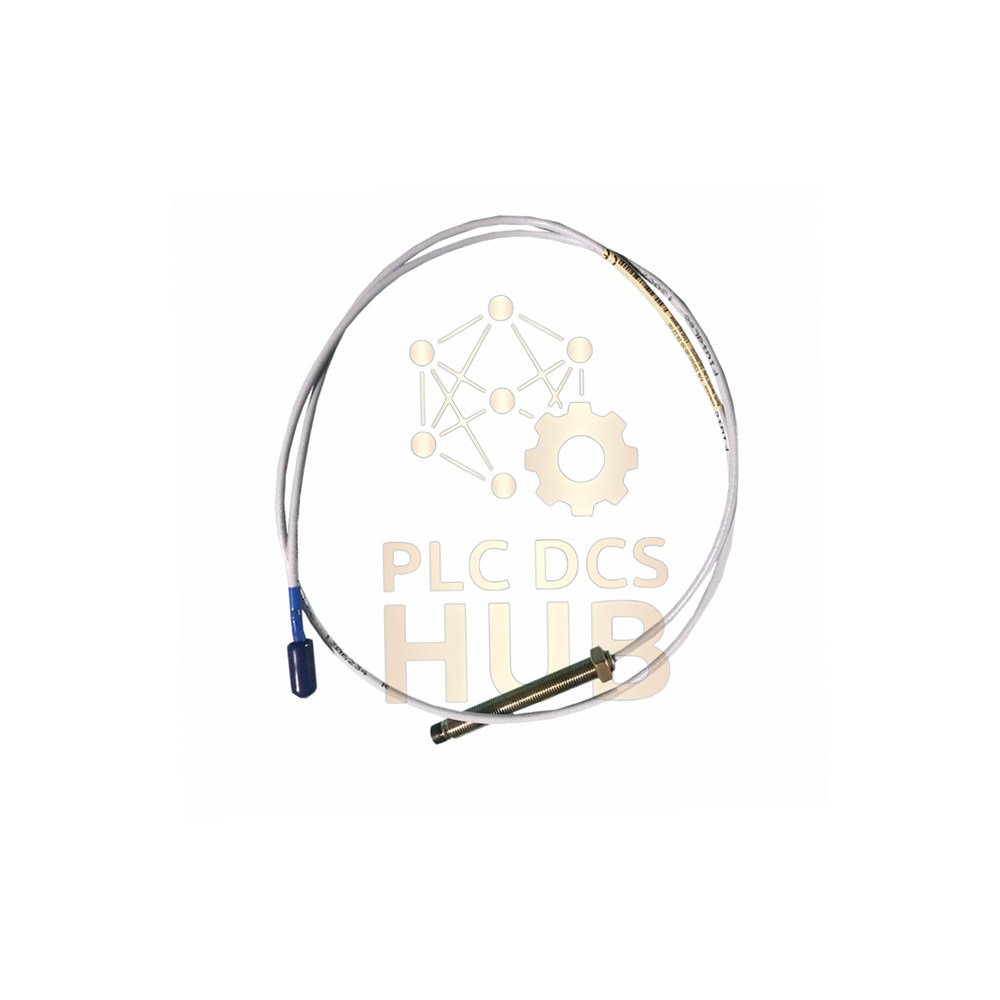

Meet the Bently Nevada 330702-00-40-10-01-00. This is a durable 11 mm Proximity Probe from the 3300 XL series. It features a protective stainless steel armor and a 1/2-20 UNF thread. The probe is new, original, and made in the USA. It comes with a standard 12-month warranty for reliable performance.
Part Number Configuration: What Each Segment Means
Complete Model: 330702-00-40-10-01-00
- ▻ 330702: Core Model (11mm Probe, 1/2-20 UNF, With Armor)
- ▻ 00: Unthreaded Length = 0.0 inch
- ▻ 40: Case Length = 4.0 inches
- ▻ 10: Cable Length = 1.0 metre
- ▻ 01: Connector = ClickLoc with Protector, Standard Cable
- ▻ 00: Agency Approval = Not Required
Key Specifications & Data
- Basic Info:
- Manufacturer: Bently Nevada
- Type: 3300 XL 11mm Proximity Probe
- Origin: Made in USA
- Electrical & Physical:
- Probe DC Resistance: 5.9 Ω ± 0.5 Ω (1.0m cable)
- Cable Type: 75 Ω Triaxial, FEP Insulated
- Thread Type: 1/2-20 UNF
- Max Thread Engagement: 0.750 inch
- Case Material: AISI 304 Stainless Steel with Armor
- Tip Material: Polyphenylene Sulfide (PPS)
- Installation & Environment:
- Recommended Torque: 15.2 N•m (133 in•lb)
- Operating Temperature: -51°C to +177°C
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Connector Torque: Finger tight (Max 0.565 N•m)
What’s Included & Warranty
- One (1) Bently Nevada Probe, part number 330702-00-40-10-01-00.
- All original factory packaging and materials.
- Comprehensive 12-month manufacturer’s warranty against defects.
Fast & Reliable Shipping
We ensure quick delivery. Your order ships via global carriers like FedEx, UPS, or DHL. You will get a tracking link to follow your shipment.
Expert Questions & Answers
Product Features & Use
- What is the benefit of the stainless steel armor on this probe?
- The armored cable provides extra mechanical protection. It guards against cuts, abrasion, and crush damage in tough plant environments.
- When should I choose a 1/2-20 UNF thread over an M14 metric thread?
- Choose the 1/2-20 UNF thread if your existing machinery or mounting holes are designed for imperial/UNC/UNF standards, common in North America.
Installation & Handling
- What does ‘finger tight’ torque for the connector mean?
- It means tighten the ClickLoc connector by hand until snug. Do not use tools, as over-tightening can damage the connector (max 0.565 N•m).
- The probe has a pressure seal. Is it tested before shipping?
- No, standard probes are not pressure tested. If your application involves specific pressure differentials, you must contact Bently Nevada’s custom department for a tested unit.
Ordering & Support
- How do I confirm this is the right model for my replacement needs?
- Match the full part number 330702-00-40-10-01-00 with your old probe. Check the thread (1/2-20), case length (4.0 in), and armor. For confirmation, message us on WhatsApp at +86 158 8020 0923 with a photo of your old part.
