Description

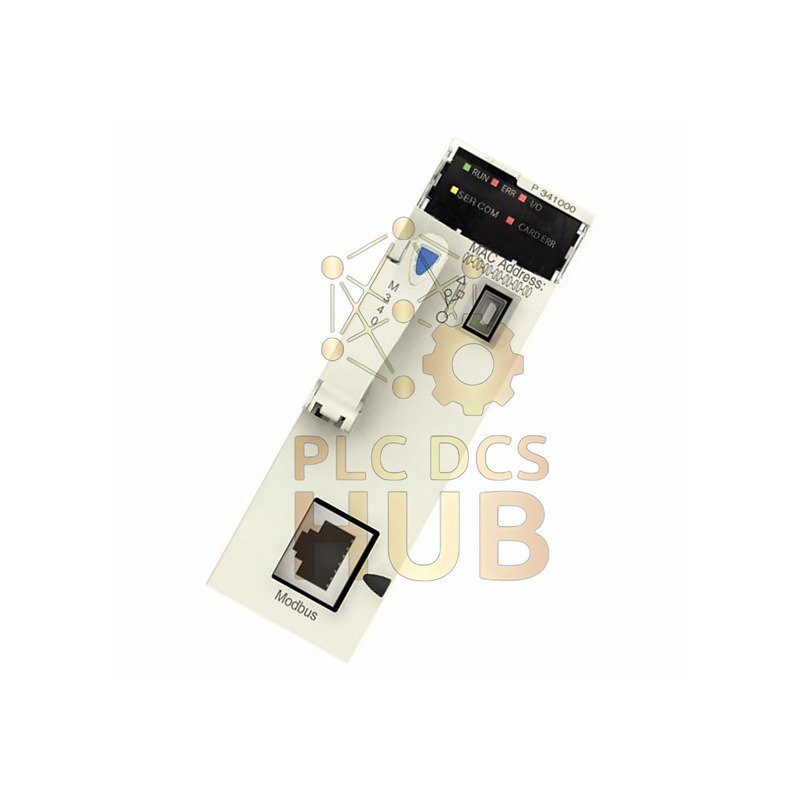

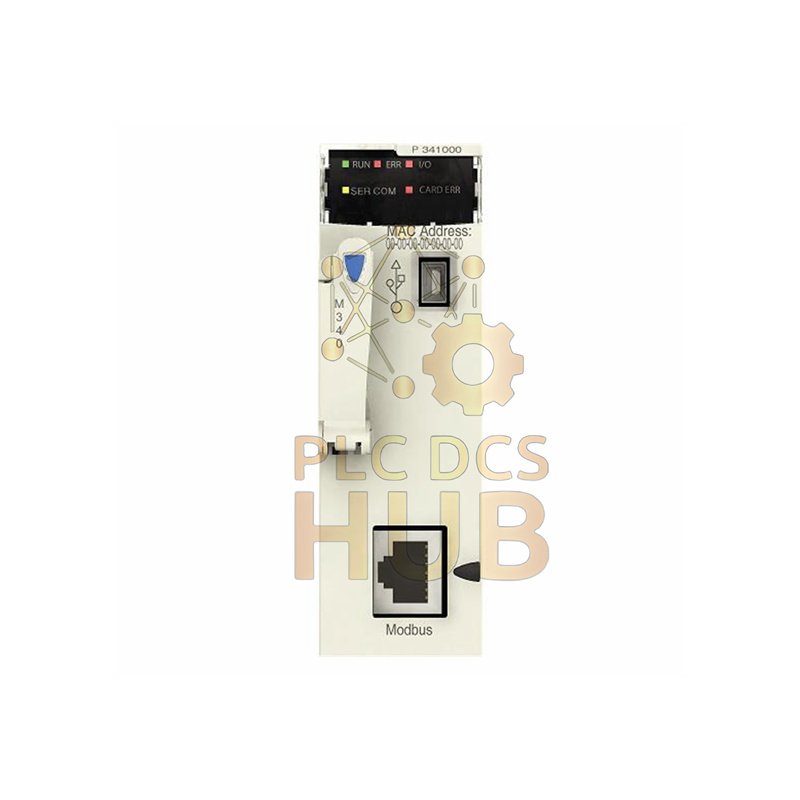

Rugged M340 Processor for Extreme Environments
The BMXP341000H delivers reliable performance in harsh industrial conditions. This robust processor handles demanding applications with extended temperature operation. It features conformal coating for extra environmental protection.
Technical Specifications
- Brand: Schneider Electric
- Model: Modicon M340 BMXP341000H
- I/O Capacity: 512 discrete + 128 analog maximum
- Processing Speed: 4.2-5.4K instructions/ms
- Operating Temperature: -13°F to 158°F (-25°C to 70°C)
- Memory Capacity: 2MB internal RAM total
- Power Consumption: 72mA at 24V DC
- Communication Ports: Serial, USB, Modbus
- Module Weight: 0.4 lb (0.2 kg)
Environmental Durability
- Extended temperature range: -25°C to 70°C operation
- Conformal coating for moisture protection
- Gas resistant class Gx industrial rating
- Dust and sand resistant class 3S4
- ATEX Zone 2/22 hazardous area certified
- Salt and mold resistance for harsh conditions
Communication Capabilities
- Serial Protocols: RS232 and RS485 support
- Modbus: RTU and ASCII modes available
- USB Port: 12 Mbit/s programming interface
- Network Modules: 2 Ethernet + 2 AS-Interface
- Device Support: 32 devices per segment maximum
Packaging & Delivery
- Unit Package: Individual protective box
- Package Dimensions: 4.72″ × 4.33″ × 2.17″
- Unit Weight: 8.7 oz (247g) packaged
- Bulk Package: 15 units per shipping carton
- Carrier Options: FedEx, UPS, DHL available
Installation Guidelines
- Install in Modicon M340 compatible racks
- Use internal backplane power connection
- Connect communication cables properly
- Monitor five status LEDs for system health
- Follow hazardous area installation codes
Frequently Asked Questions
- What makes this processor suitable for severe environments?It features extended temperature range and conformal coating for protection against harsh conditions.
- What communication protocols are supported?The processor supports Modbus RTU/ASCII, RS232, RS485, and USB connectivity.
- How much memory is included with the processor?It comes with 2MB internal RAM and includes an 8MB memory card for backup.
- What certifications does this processor have for hazardous areas?It carries ATEX Zone 2/22 and IECEx certifications for use in explosive atmospheres.
- What is the maximum number of I/O points supported?The processor handles up to 512 discrete and 128 analog I/O points maximum.
Documentation & Support
- Includes 12-month comprehensive product warranty
- For technical Support, Inquiry, Contact: +86 158 8020 0923
- Expert guidance for harsh environment installation
