Description

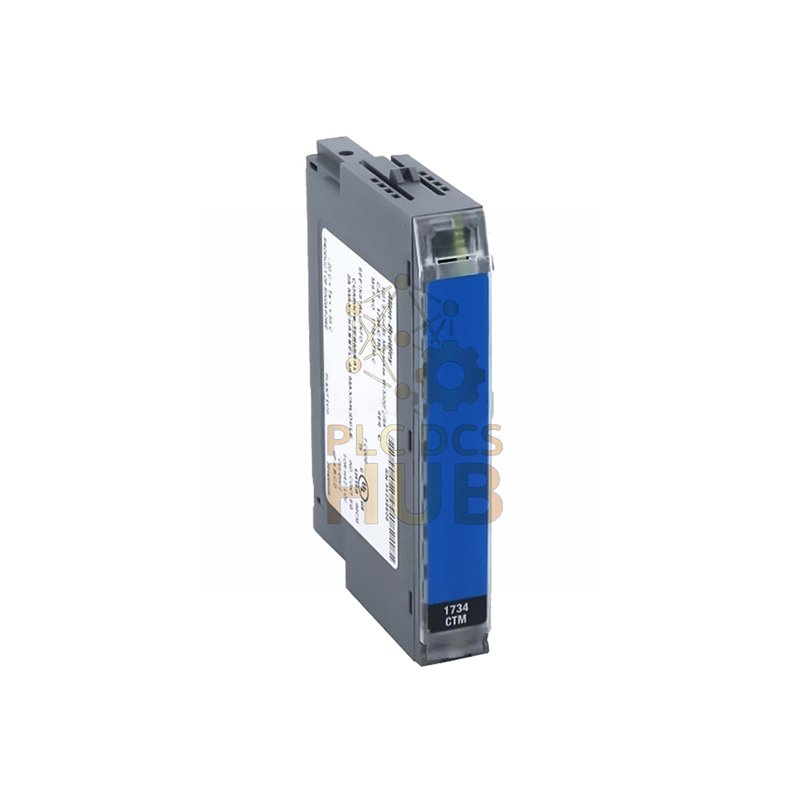

Expand Your Connectivity: Allen-Bradley 1734-CTM Terminal Module
The Allen-Bradley 1734-CTM Common Terminal Module extends the termination capabilities of your POINT I/O system. This versatile module from Rockwell Automation provides flexible wiring solutions for various field devices. Download the complete installation guide here.
Technical Specifications & Performance Data
- Isolation Rating: 250V continuous isolation with 1600Vrms withstand testing
- Power Supply Range: Flexible 1-28.8V DC or 12-240V AC input options
- Current Capacity: Handles up to 4 amps per module for field power supply
- Temperature Range: Operates from -20°C to 55°C in industrial environments
- Humidity Tolerance: 5-95% relative humidity non-condensing operation
- Compatibility: Works with 1734-TOP, 1734-TOPS, 1734-TB, and 1734-TBS base assemblies
- Safety Certification: UL Listed for Class I Division 2 hazardous locations
- Keyswitch Position: Uses position 5 for proper module identification
Package Contents
- One Allen-Bradley 1734-CTM Common Terminal Module
- Installation documentation and specification sheet
- Necessary mounting hardware for base assembly attachment
We ship globally via FedEx, UPS, and DHL for reliable delivery service.
Expert FAQs
What types of base units support the 1734-CTM module?
- The module works with 1734-TOP, 1734-TOPS, 1734-TB, and 1734-TBS terminal base assemblies.
Can this terminal module handle both AC and DC power?
- Yes, the module supports both DC (1-28.8V) and AC (12-240V) power input configurations.
What safety certifications does this module carry?
- The module is UL Listed for Class I, Division 2 hazardous locations with Groups A, B, C, D.
How many amps can each module handle for field devices?
- Each terminal module can supply up to 4 amps for connected field devices and sensors.
What is the continuous isolation voltage rating?
- The module provides 250 volts of continuous isolation between field and control circuits.
