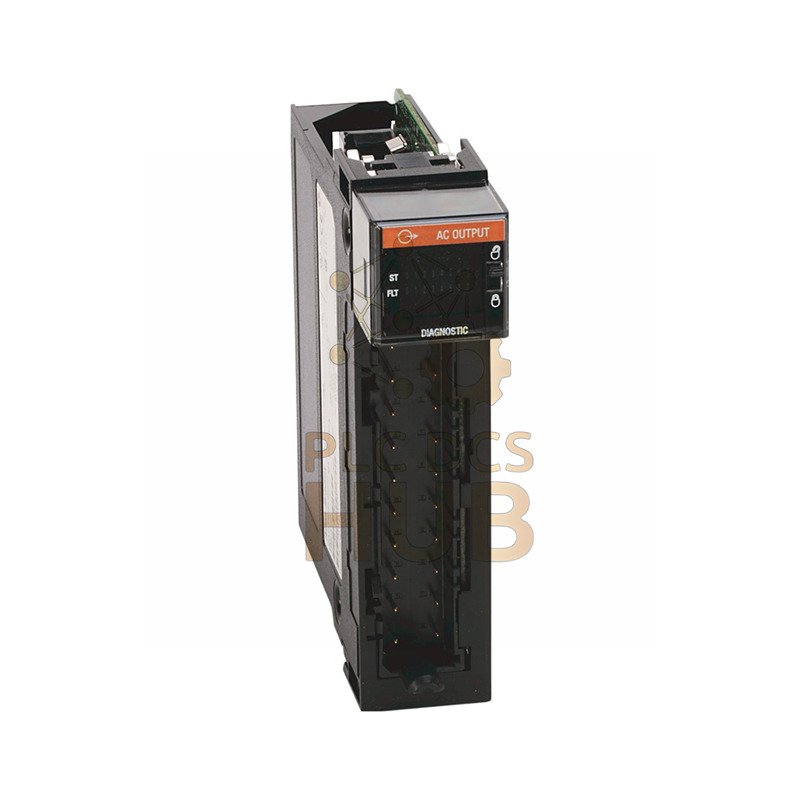

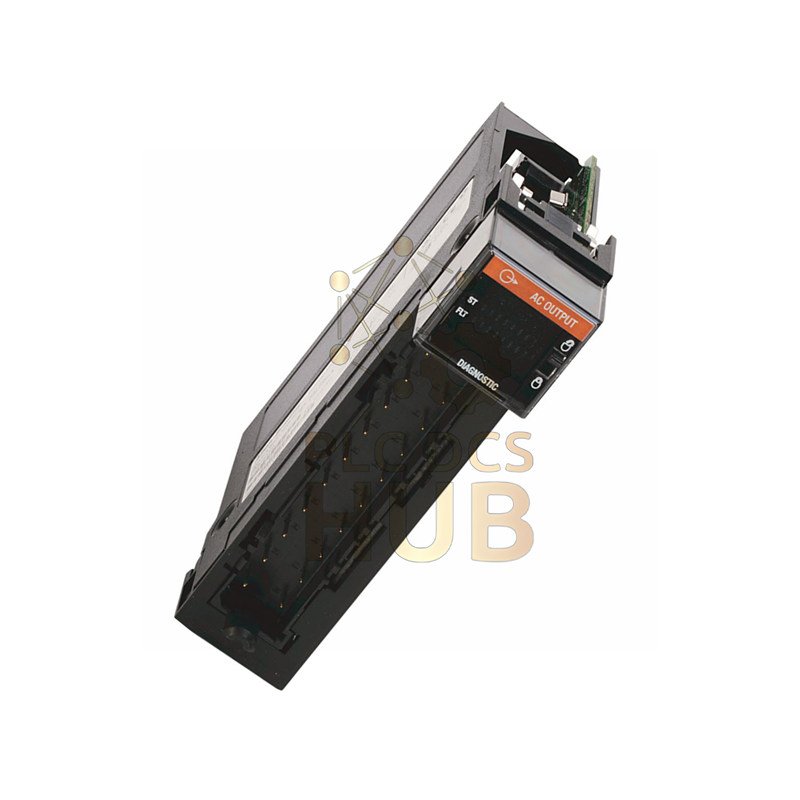

Allen-Bradley 1756-OA8D ControlLogix Diagnostic AC Output Module

Upgrade your system with the smart Allen-Bradley 1756-OA8D. This ControlLogix diagnostic module offers 8 output points with advanced fault detection. It works with 74-132V AC systems. The module provides real-time diagnostics for better control. It helps prevent downtime by finding problems early.

Download the full manual now: 1756 ControlLogix IO Modules Specifications.pdf

Key Features

• Brand: Allen-Bradley
• Series: ControlLogix
• Model: 1756-OA8D
• Special Feature: Diagnostic Outputs
• Output Type: 8-Channel AC
• Voltage Range: 74-132V AC
• Electronically Fused Outputs

Technical Specifications

• Output Current: 1.0A per point @ 30°C
• Output Current: 0.5A per point @ 60°C
• Total Module Current: 8A @ 30°C, 4A @ 60°C
• Operating Voltage: 74-132V AC
• Frequency: 47-63 Hz
• Backplane Current: 175mA @ 5V DC, 250mA @ 24V DC
• Power Dissipation: 5.3 Watts maximum
• Response Time: 9.3ms (ON), 11ms (OFF)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Terminal Blocks: 1756-TBSH, 1756-TBNH

What’s Included

• One (1) Allen-Bradley 1756-OA8D Output Module

Shipping Info

• We ship worldwide using FedEx, UPS, and DHL
• Fast delivery options available

Warranty

• 12-month quality guarantee
• Coverage for defects and malfunctions

FAQ

• What makes this module diagnostic?
  It monitors output health and detects faults in real-time.
• What voltage does it support?
  It works with 74-132V AC systems at 47-63 Hz.
• How many output points does it have?
  It provides 8 electronically fused output channels.
• Can it handle high surge currents?
  Yes, it handles 8A surge for 43ms every 2 seconds.
• What terminal blocks work with it?
  Use 1756-TBSH or 1756-TBNH removable terminal blocks.
