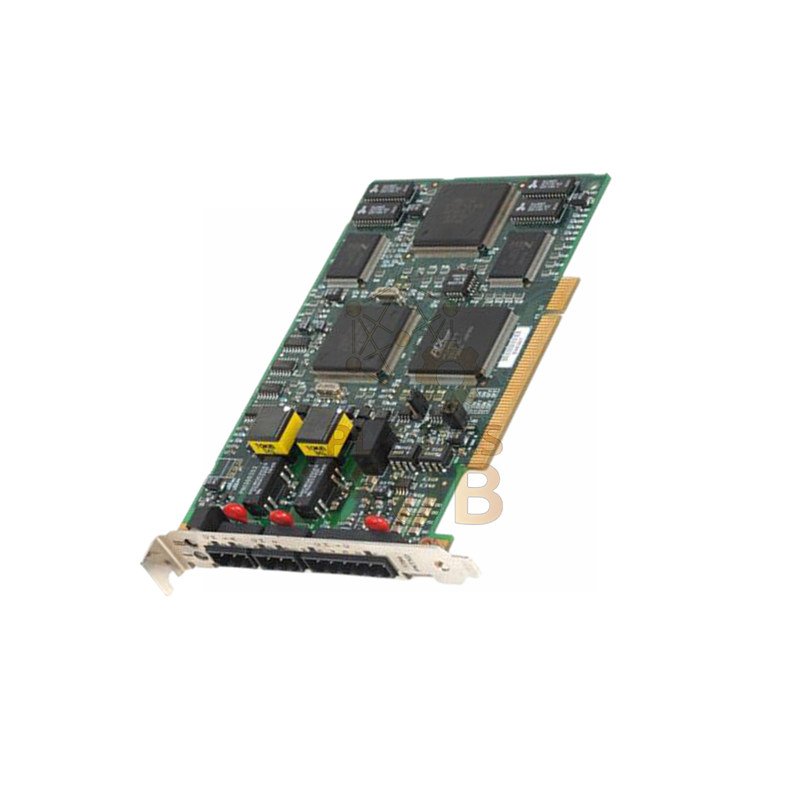

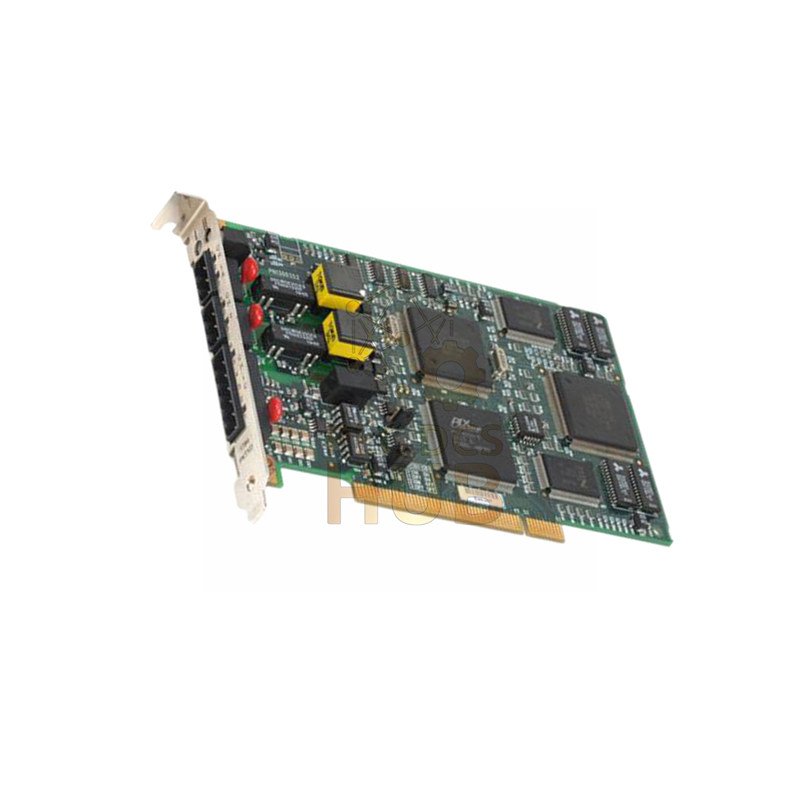

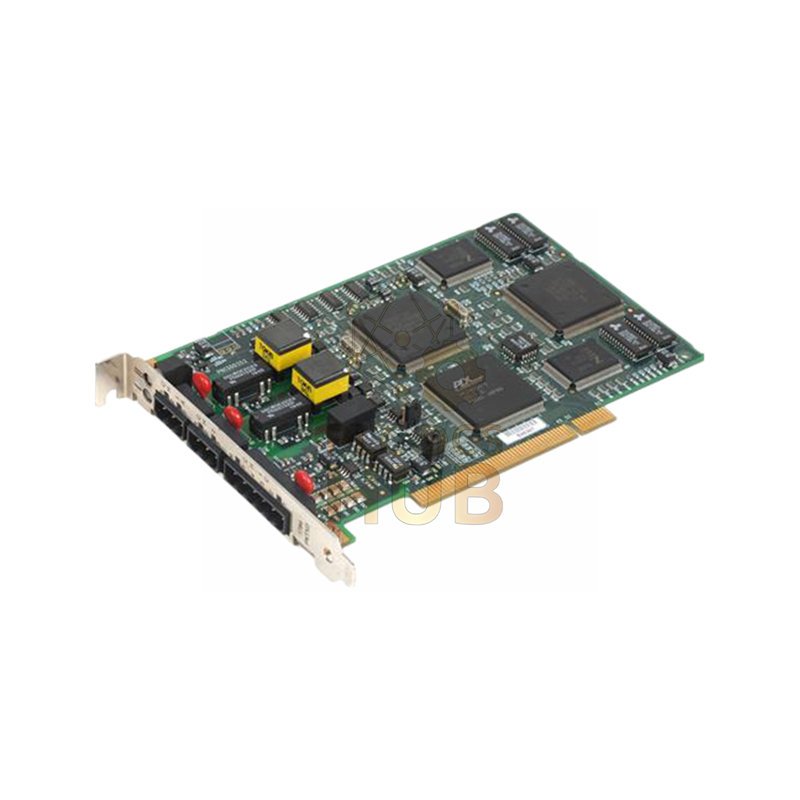

Allen-Bradley 1784-PKTX: DH+/RIO/DH-485 Network Interface Card

The Allen-Bradley 1784-PKTX connects your computer to industrial networks. This PCI card lets you communicate with PLC systems using DH+, RIO, and DH-485 protocols.

Technical Specifications

• Brand: Allen-Bradley/Rockwell Automation
• Model: 1784-PKTX
• Interface: PCI 2.3 compliant
• Channels: 1A (DH+/RIO), 1C (DH-485)
• DH+ Speed/Distance: 57.6Kbps/10,000ft, 115.2Kbps/5,000ft, 230.4Kbps/2,500ft
• DH-485 Speed/Distance: Up to 19.2Kbps/4,000ft
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Humidity: 5-95% non-condensing
• Shock Resistance: 30G operational
• Vibration: 2G @ 10-500Hz
• Dimensions: 4.5″ x 12.4″ x 6.3″ (115x317x160mm)
• Weight: 0.3 lbs (0.1 kg)
• Conformal Coating: Yes

Compatible Systems

• PLC-5, PLC-5/250 processors
• SLC 5/04, SLC 5/01, SLC 5/02, SLC 5/03
• Windows operating systems
• RSLinx software with PKTx driver

Connection Cables

• 1784-CP12: 3-pin Phoenix for DH+
• 1784-CP14: 6-pin Phoenix for DH-485
• 1771-WN wiring arm
• Switchable termination resistors

Package Information

• Single unit packaging
• Global shipping: FedEx, UPS, DHL
• Delivery time: 3-7 business days
• Warranty: 12 months
• RoHS compliant: Yes

Frequently Asked Questions

• What operating systems support this card? Windows with RSLinx software. Other systems need custom drivers.
• How many cards can I install in one computer? Maximum of four cards per system.
• What cables do I need for connection? 1784-CP12 for DH+, 1784-CP14 for DH-485 networks.
• Can I use this with modern computers? Yes, but requires PCI slot (not PCI Express).
• What is the maximum network speed? 230.4Kbps for DH+, 19.2Kbps for DH-485.
