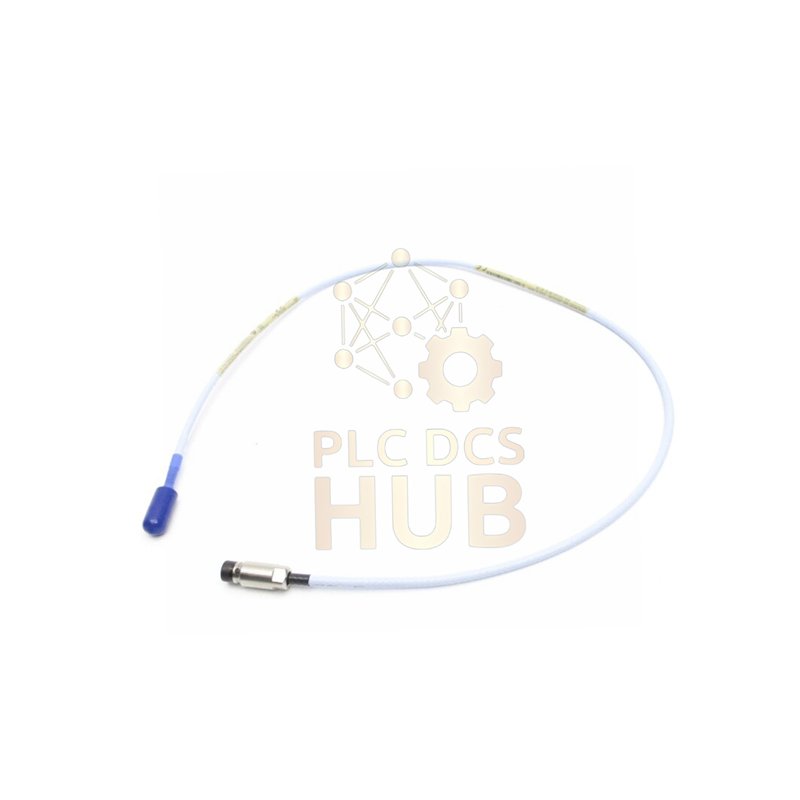

Product Overview: Bently Nevada 3300 XL 8mm Vibration Probe
This is a high-quality Bently Nevada 3300 XL 8mm proximity transducer. It provides accurate measurement of vibration and position in rotating machinery. Its robust design ensures reliable performance in tough industrial environments.
- Model: 330140-08-05-01-00
- Probe Type: 3300 XL 8mm, without armor
- Origin: Made in U.S.A.
Key Features & Benefits
- Patented Durability: Features TipLoc and CableLoc technology for superior tip and cable attachment.
- Exceptional Strength: Cable offers a high 330 N (75 lbf) pull-out resistance.
- Rugged 8mm Design: Thicker probe body provides enhanced physical protection. Recommended for optimal robustness.
- FluidLoc Option Available: Prevents oil migration through the cable interior (not included in this model).
Detailed Model Configuration
- 330140: Base Series (3300 XL 8 mm Probe)
- -08: Overall Case Length = 0.8 inch
- -05: Cable Length = 0.5 meter (1.6 feet)
- -01: Connector = Miniature Coaxial ClickLoc with protector
- -00: Agency Approval = Not Required
Technical Specifications
- Brand & Model: Bently Nevada 330140-08-05-01-00
- Measurement Range: Standard linear range up to 2.0 mm (80 mils).
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±5% (0.5m system).
- Linearity (DSL): Better than ±0.025 mm (±1 mil) (0.5m system).
- Probe DC Resistance: 7.73 Ω ± 0.50 Ω (for 0.5m length).
- Temperature Range:
- Operating/Storage: -52°C to +177°C (-62°F to +350°F).
- Note: Avoid below -34°C (-30°F) to protect pressure seal.
- Environmental Rating:
- Case: AISI 303/304 Stainless Steel.
- Tip: Molded PPS Plastic.
- Seal: Viton® O-ring (not pressure tested).
- Humidity: Less than 3% ASF change at 93% RH.
- Weight: Approximately 323 g/m (11.4 oz/ft).
Installation & Commissioning
Mounting: Install in a clean, properly sized mounting hole. Ensure correct gap to target. Use suitable brackets. Follow machine OEM guidelines.
Setup: Connect to compatible Bently Nevada monitoring systems (e.g., 3300, 3500). System calibration is straightforward.
Maintenance: Minimal maintenance required. Regularly inspect for physical damage. Verify cable integrity and connector tightness.
Compatibility & Ordering Info
- Compatible Systems: Bently Nevada 3300, 3500, and other systems using the standard proximity probe input.
- Connector: Miniature Coaxial ClickLoc (with protector).
- Agency Approval: This specific model (option 00) does not carry special approvals.
Package & Support
- What’s in the Box: One 8mm Probe (0.5m cable) with ClickLoc connector and protector.
- Warranty: Full 12-month warranty against defects in materials and workmanship.
- Global Shipping: Fast delivery via FedEx, UPS, or DHL.
Application Areas
- Critical vibration monitoring on turbines, compressors, and generators.
- Radial vibration and axial position measurement on pumps and motors.
- Essential for predictive maintenance programs to detect unbalance, misalignment, and bearing issues.
Frequently Asked Questions
Why choose an 8mm probe over a 5mm one?
The 8mm body is significantly stronger. It better resists bending and physical damage in harsh environments, leading to longer service life.
Is the cable connection really that strong?
Yes. The patented CableLoc design is tested to withstand 75 pounds of force. This prevents cable pull-out, a common failure point in less robust probes.
Can this probe handle high temperatures?
The standard version works up to 177°C (350°F). For hotspots up to 218°C (425°F), you must order the Extended Temperature Range (ETR) option at time of purchase.
How does it perform in oily or wet conditions?
It has a standard Viton seal. For applications where oil could wick along the cable interior, specify the FluidLoc cable option to completely block fluid ingress.
My previous probe had tip separation issues. Is this fixed?
Absolutely. The TipLoc molding process creates a superior bond between the coil and PPS tip. This specifically addresses the cracking and separation seen in older probe designs.
What’s the main cause of premature probe failure?
Aside from physical impact, exposure to temperatures below -34°C (-30°F) can damage the internal pressure seal. Always store and install within the specified temperature limits.
