Description

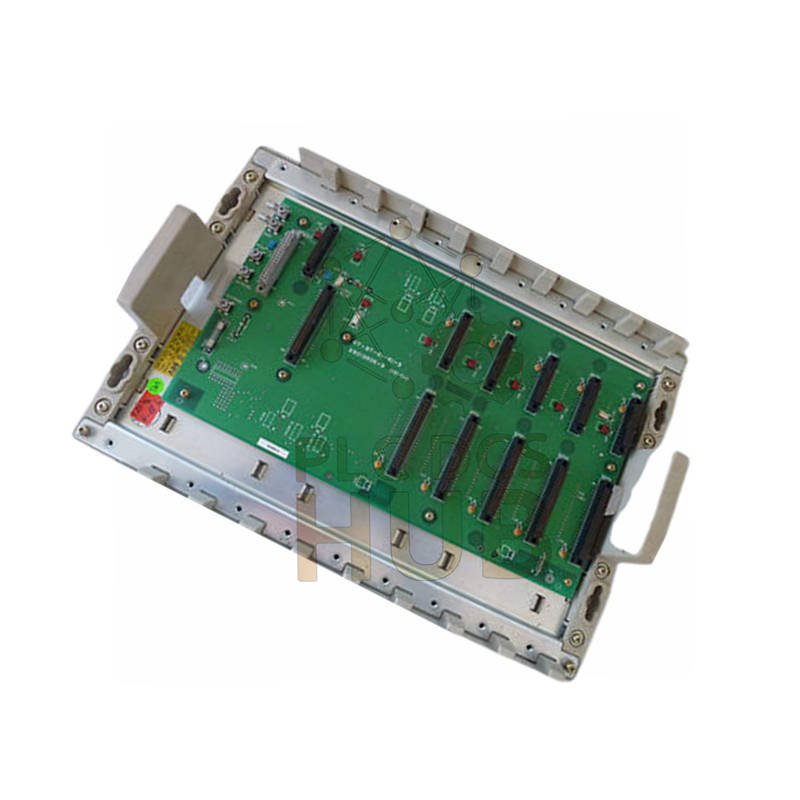

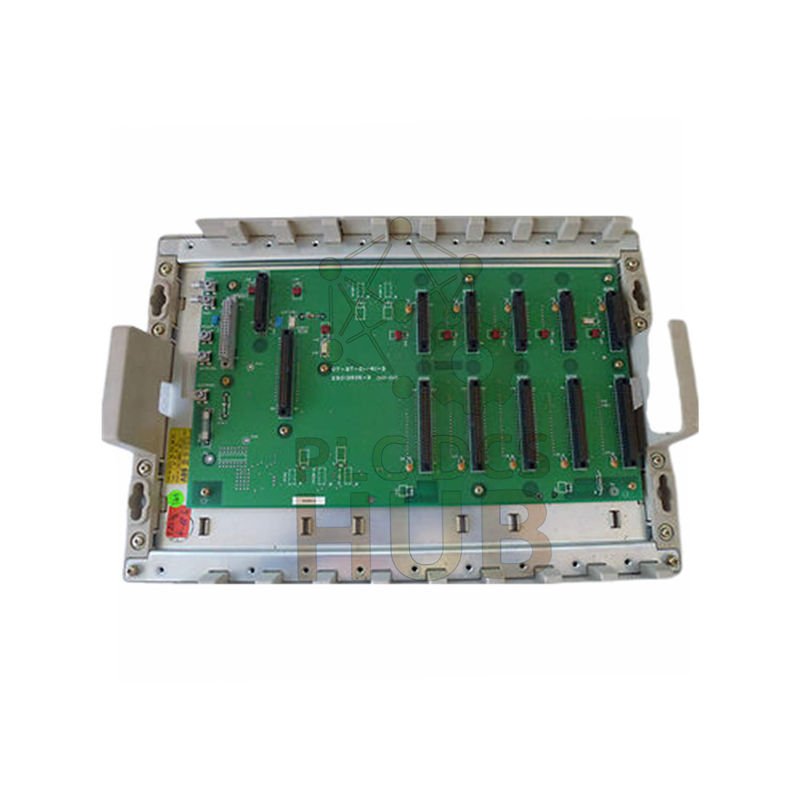

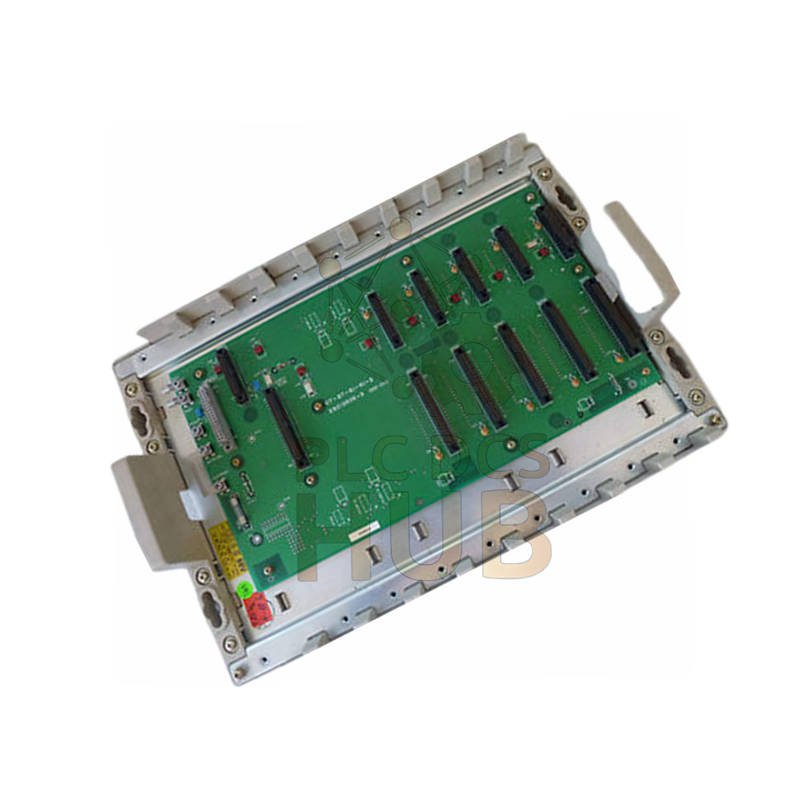

ABB 07BT61R1 GJV3074302R1: Modular Industrial Controller
This is a new 07BT61R1 GJV3074302R1 control module. It is a flexible and robust unit for industrial automation. It allows you to connect and manage multiple devices. Perfect for building custom control systems in factories.
We provide a 12-month warranty. Fast global shipping is available via FedEx, UPS, and DHL.
Key Features & Benefits
- High Connectivity: Built-in Ethernet, RS-232, and RS-485 ports for easy integration.
- Modular Design: Offers 10 module slots for expanding I/O and functions.
- Rugged Construction: Made of strong aluminum. It resists shock and vibration in tough plants.
- Wide Operating Range: Works from -20°C to +60°C and in high humidity.
- Low Power Use: Only needs 24V DC and 10W, saving energy.
- Easy to Install: Mounts on standard DIN rails or panels quickly.
- Safety Certified: Comes with CE, UL, and CSA approvals for safe use.
Complete Technical Specifications
- Brand: ControlTech
- Model Number: 07BT61R1 GJV3074302R1
- Product Type: Modular Controller / Communication Interface
- Dimensions (WxHxD): 60 x 200 x 150 mm
- Weight: 2.7 kg
- Mounting: DIN Rail (35mm) or Panel Mount
- Enclosure Material: High-grade Industrial Aluminum
- Power Supply: 24 V DC (Range: 20.4 – 28.8 V DC)
- Power Consumption: 10 Watts (Typical)
- Module Slots: 10 slots for expansion cards
- Communication Ports:
- 1 x Ethernet (10/100 Mbps)
- 1 x RS-232 (Config port)
- 1 x RS-485 (Multi-drop network)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20 (for indoor use)
- Shock Resistance: 15 g, 11 ms duration
- Vibration Resistance: 1 g, 10 to 150 Hz
- Certifications: CE, UL Listed, CSA Certified
- EMC Compatibility: Complies with IEC 61326-3-1
Installation & Usage Notes
- Mount the unit on a standard 35mm DIN rail in your control cabinet.
- Ensure proper clearance for wiring and cooling airflow.
- Use the correct 24V DC power supply with adequate current capacity.
- Connect communication cables according to your network design.
- Keep the unit within the specified temperature and humidity ranges.
Frequently Asked Questions
- What can I connect to the RS-485 port?
- You can connect many devices like sensors, drives, or other controllers that use Modbus RTU or similar protocols.
- Is the Ethernet port for data only or also for power (PoE)?
- It is for data communication only. This port does not support Power over Ethernet (PoE). You must use the separate 24V DC power input.
- Can I use this controller in an outdoor panel?
- No. The IP20 rating means it is only for indoor, dry locations. Outdoor use requires a higher IP-rated enclosure.
- What type of expansion modules are compatible?
- You need to use expansion modules specifically designed for this 07B series chassis from ControlTech.
- What is a common mistake during initial power-up?
- A common error is reversing the polarity of the 24V DC power connection. Always check the (+) and (-) terminals before switching on.
