Description

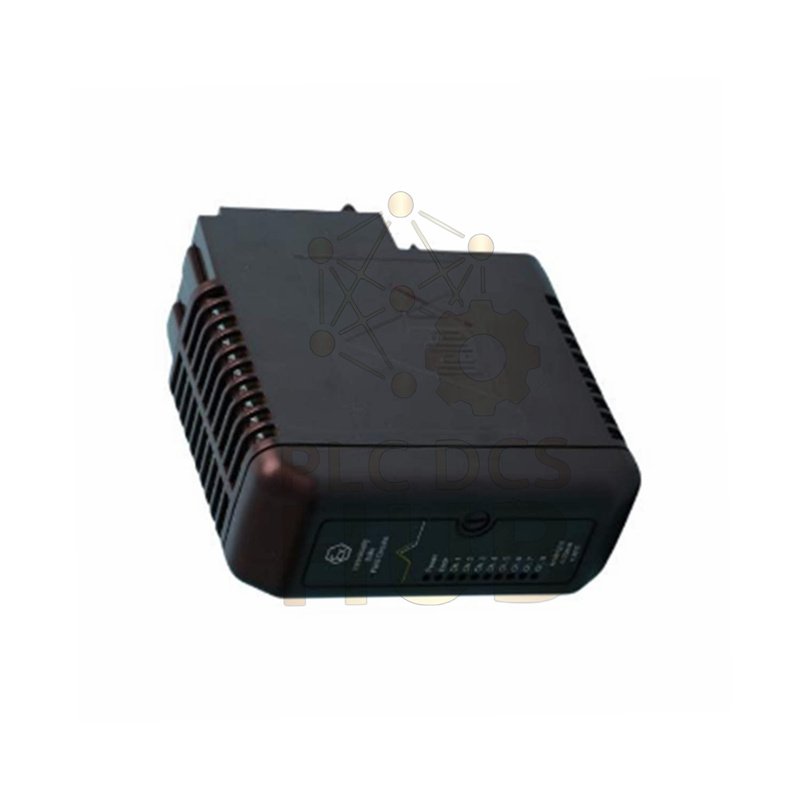

Emerson VE4012S2B1 I/O Module
The Emerson VE4012S2B1 is a flexible I/O module. It belongs to the VE4012 series for industrial control. This unit mixes digital and analog signals in one device. It works with 24V DC systems for easy integration. The module fits standard DIN rails for quick installation.
Detailed Technical Data
- Brand: Emerson
- Model: VE4012S2B1
- Series: VE4012
- Product Type: Mixed I/O Module
- Power Supply: 24 Volts DC
- Digital Channels: 6 fully isolated inputs/outputs
- Analog Channels: 6 channels, 16-bit resolution
- Current per Channel: Up to 10 Amps maximum
- Total I/O Count: 12 configurable terminals
- Module Dimensions: 120mm (H) x 75mm (W) x 50mm (D)
- Mounting Style: Standard 35mm DIN Rail
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Protection Rating: IP20 for basic dust protection
- Isolation Voltage: 1500 Vrms channel to logic
- Response Time: < 1ms for digital signals
- Analog Accuracy: ±0.1% of full scale
- Compliance: RoHS, CE, and cULus listed
- Warranty: Full 12-month replacement warranty
Key Product Benefits
- Space Saving Design: Combines 12 functions in one compact unit.
- Wide Temperature Range: Works in very cold or hot environments.
- Easy Installation: DIN rail mounting saves panel space.
- High Channel Density: More I/O points in less area.
- Mixed Signal Support: Handles both digital and analog devices.
- Reliable Performance: Built for 24/7 industrial operation.
Shipping & Service Info
- One Emerson VE4012S2B1 I/O module unit.
- Installation manual and datasheet included.
- Shipping: Fast worldwide delivery via FedEx, UPS, DHL.
- Warranty: 12 months from date of purchase.
- For technical questions, call +86 158 8020 0923.
Common Questions Answered
Can I use all 12 channels at the same time?
- Yes, all channels work independently. You can use digital and analog signals together without interference.
What is the main advantage of a mixed I/O module?
- It reduces the number of modules you need to buy. You save money, panel space, and wiring time in your control cabinet.
How do I configure the analog inputs?
- Use the software provided by Emerson. You can set each channel as voltage (0-10V) or current (4-20mA) input easily.
Is this module good for a harsh factory floor?
- The wide temperature range and DIN rail mounting make it sturdy. For very dirty areas, you should install it inside a protected cabinet.
What if I need more than 12 I/O points?
- You can connect multiple VE4012S2B1 modules together on the same rail. They work side by side for larger systems.
