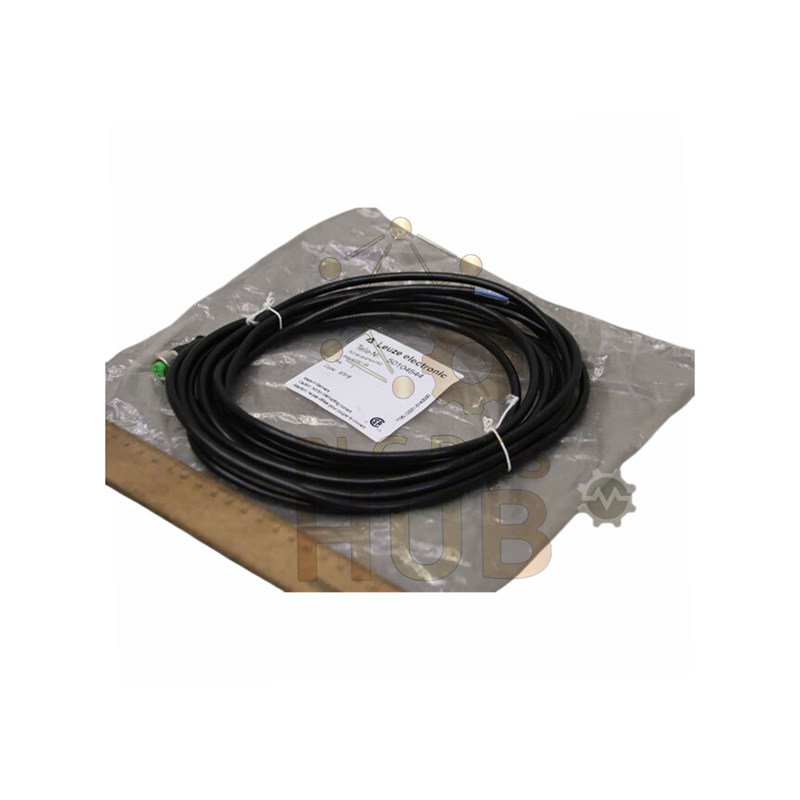

Leuze K-D M12W-3P-2M-PVC: Industrial Sensor Connection Cable
This is a new Leuze K-D M12W-3P-2M-PVC cable. It connects sensors and devices in factories. This cable is strong and reliable for automation systems. It ensures a secure signal connection.
We offer a 12-month warranty. We ship quickly with FedEx, UPS, and DHL.
Product Model Breakdown
- K-D: Connection cable with connector
- M12W: M12 connector, angular (90-degree) type
- -3P: 3 pins
- -2M: Cable length of 2 meters
- -PVC: Cable material is PVC
Complete Technical Specifications
- Brand: Leuze
- Model: K-D M12W-3P-2M-PVC
- Type: Sensor Connection Cable
- Connector Type: M12, 3-pin, male, angular
- Cable Length: 2 meters
- Cable Material: PVC (Polyvinyl Chloride) sheath
- Conductor Cross-Section: 0.34 mm²
- Cable Diameter: 4.7 to 5.7 mm
- Bending Radius: ≥ 10 x cable diameter
- Voltage Rating: ≤ 250V AC/DC (3-pin)
- Current Rating: ≤ 4A per contact
- Insulation Class: Category I according to IEC 60664-1
- Connector Housing: Die-cast zinc, nickel-plated
- Locking Mechanism: Screw fitting with self-locking
- Recommended Torque: 0.6 Nm
- Operating Temperature:
- Fixed wiring: -30°C to +70°C
- Flexible wiring: -5°C to +70°C
- Protection Class: IP67 (when mated)
- Shielded: Yes, for EMI protection
- Color: Cable: Black, Connector: Black
Installation Guide
- Ensure the connector is clean and dry before mating.
- Hand-tighten the screw lock, then use a torque screwdriver to 0.6 Nm.
- Route the cable to avoid sharp bends (minimum radius 5.7 cm).
- Do not expose the cable to temperatures above +70°C or below -30°C.
- Use cable ties to secure the cable, but do not overtighten.
Frequently Asked Questions
- What devices use this type of M12 cable?
- It is commonly used for photoelectric sensors, proximity switches, and some industrial encoders from Leuze and other brands.
- Can I use this cable for power supply connections?
- Yes, it can carry up to 4A per pin. But always check your device’s power requirements first.
- What is the advantage of a right-angle connector?
- It helps in tight spaces. The cable exits sideways, saving depth behind the sensor panel.
- Is the cable oil-resistant?
- The PVC sheath offers some resistance to oils and chemicals, but for constant exposure, check for specific oil-resistant variants.
- Why is my new cable connection intermittent?
- First, check the screw lock is fully tightened. Then, inspect the connector pins for damage or dirt. Ensure you are using the correct pinout.
