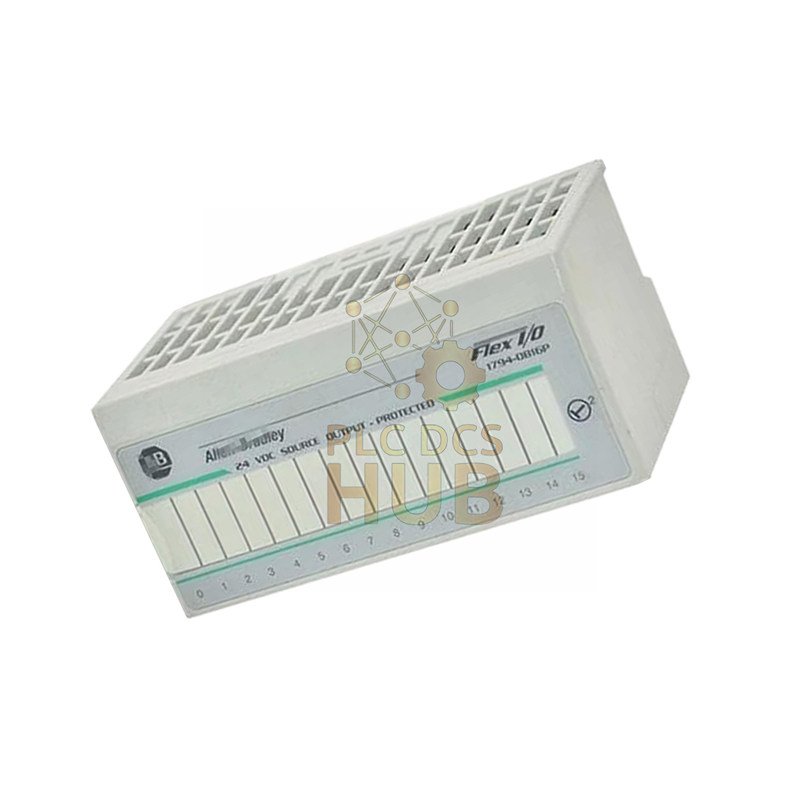

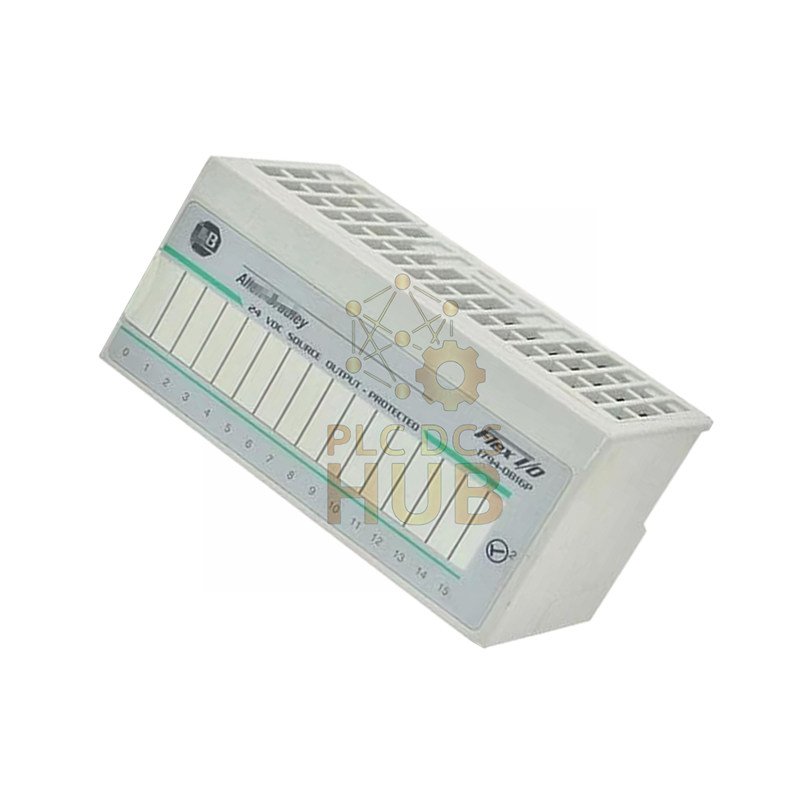

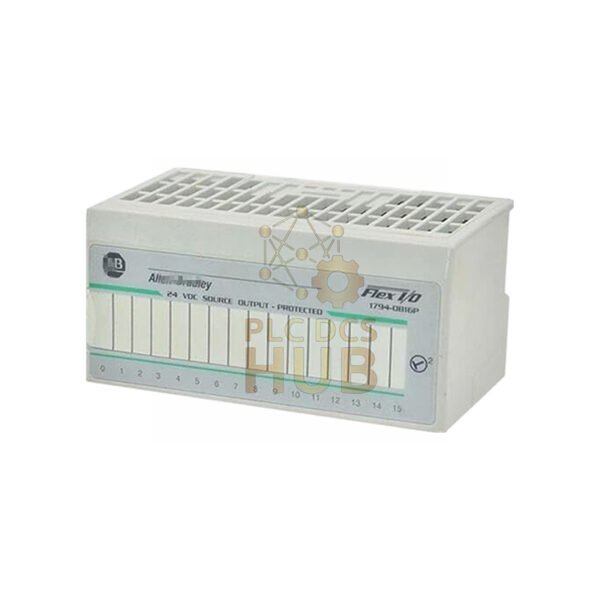

Allen-Bradley 1794-OB16P Flex I/O 24V DC Output Module
Control your automation devices with the Allen-Bradley 1794-OB16P digital output module. This Flex I/O module features 16 electronically protected outputs for 24V DC applications. It offers built-in protection and reliable performance for your industrial control systems.
Technical Specifications
Brand: Allen-Bradley
Model: 1794-OB16P
Series: Flex I/O
Module Type: DC Output Module
Number of Outputs: 16 Points, Sourcing
Output Voltage: 24V DC Nominal (10-31.2V DC Range)
Current per Channel: 500 mA max
Total Current: 8.0A max
Voltage Drop: 0.5V DC max
Leakage Current: 0.5 mA max
Surge Current: 2A for 50ms (repeatable every 2s)
Response Time: 0.5ms OFF to ON, 1ms ON to OFF
Power Dissipation: 5.0W @ 31.2V DC
Operating Temperature: 0 to 55°C (32 to 131°F)
Compatible Terminal Bases
This 1794-OB16P module works with 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, and 1794-TB3SK terminal bases.
Warranty & Shipping
We provide a 12-month warranty on this module. We ship worldwide using FedEx, UPS, and DHL for fast delivery.
Frequently Asked Questions
- What devices can this module control?
It can control 24V DC devices like indicator lights, solenoid valves, relay coils, and other field instruments. - Does it have built-in protection?
Yes, each channel has electronic fusing for protection against overloads and short circuits. - What controllers is it compatible with?
It works with ControlLogix, CompactLogix, PLC5, SLC500, and other Allen-Bradley controllers. - What communication networks does it support?
It supports EtherNet/IP, ControlNet, DeviceNet, and PROFIBUS communication adapters. - What is the surge current capability?
Each channel can handle 2A surge current for 50 milliseconds, repeatable every 2 seconds.
