Description

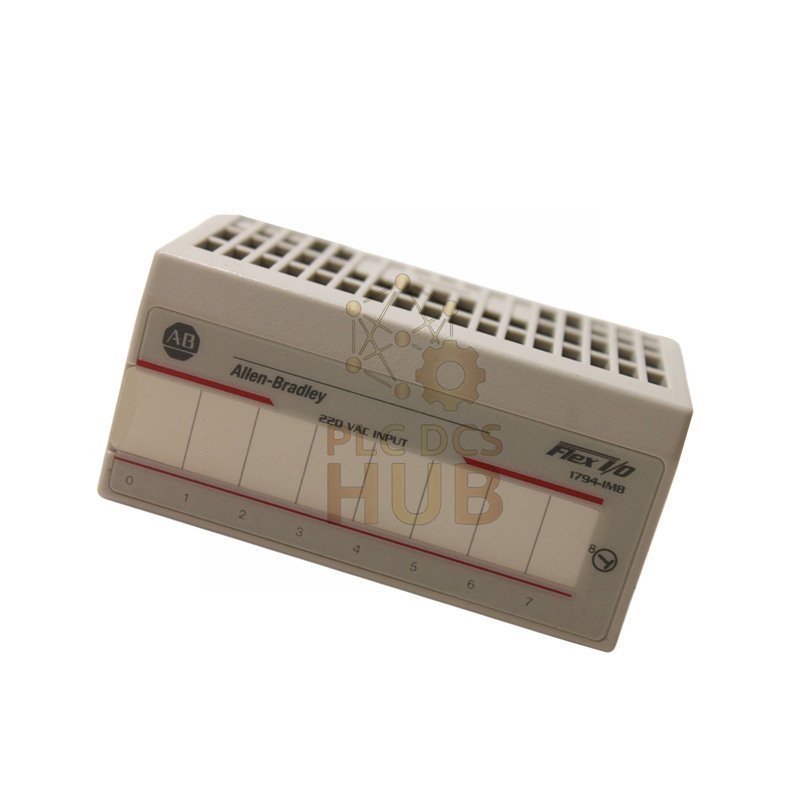

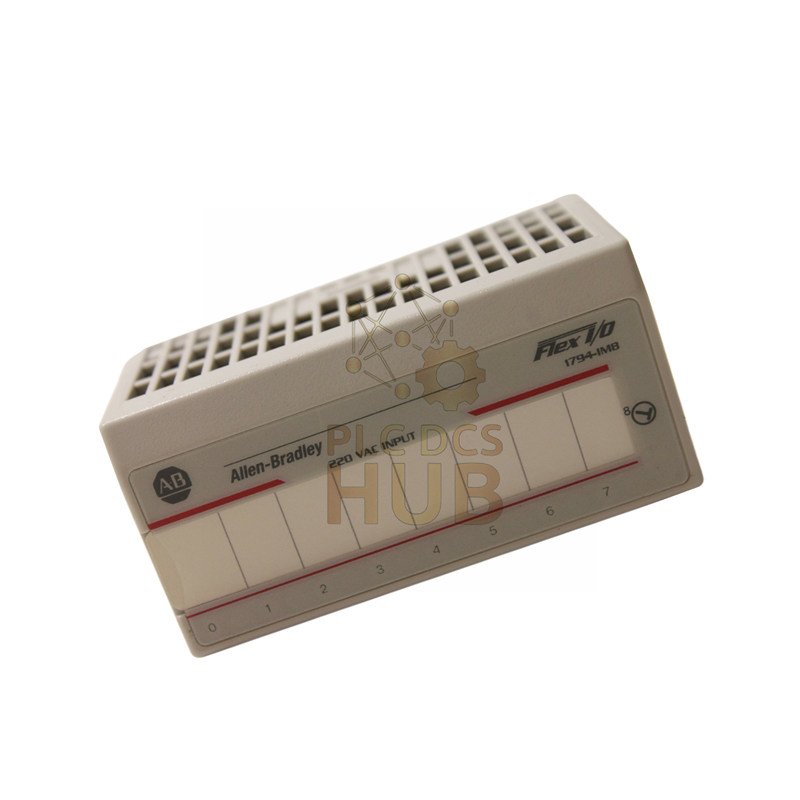

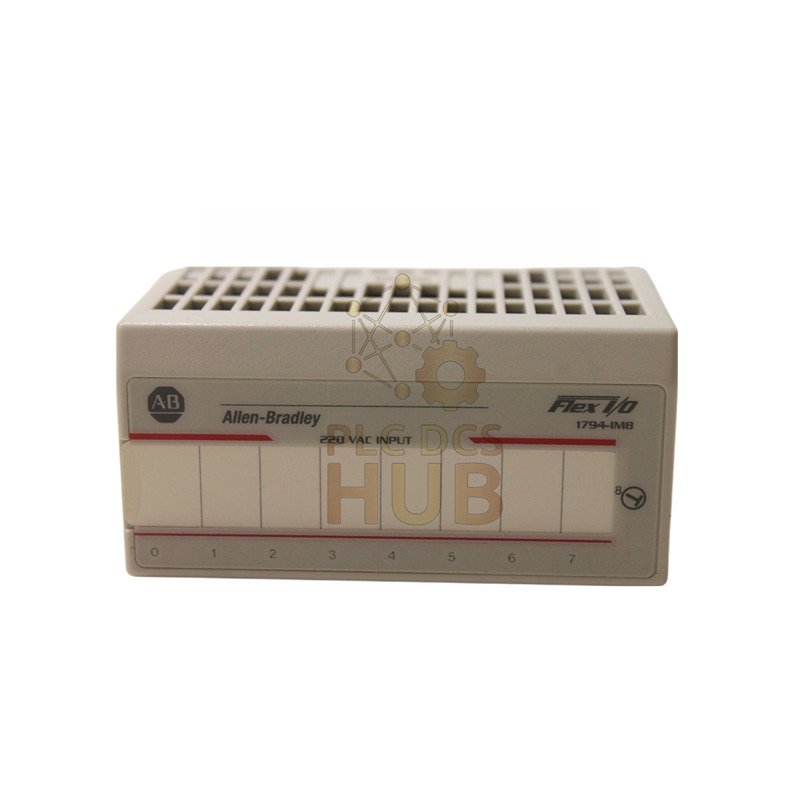

Allen-Bradley 1794-IM8 Flex I/O 240V AC Input Module
Monitor high voltage AC systems with the Allen-Bradley 1794-IM8 digital input module. This Flex I/O module offers 8 non-isolated inputs for 240V AC applications. It is built for industrial environments and provides reliable performance for your automation control needs.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1794-IM8
- Series: Flex I/O
- Module Type: AC Digital Input
- Number of Inputs: 8 Points, Non-isolated
- Input Voltage: 240V AC Nominal
- On-state Current: 13.21 mA max
- Off-state Current: 2.6 mA max
- Input Impedance: 22.3 kΩ
- Isolation Voltage: 250V Continuous
- Thermal Dissipation: 16.2 BTU/hour
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Dimensions: 94 x 94 x 91 mm
Compatible Terminal Base
This 1794-IM8 module works with the 1794-TBN terminal base unit for easy installation.
Warranty & Shipping
We provide a 12-month warranty on this module. We ship worldwide using FedEx, UPS, and DHL for fast delivery.
Frequently Asked Questions
- What voltage does this module support?
It supports 240V AC nominal voltage for high voltage AC input applications. - How many input points does it have?
It provides 8 non-isolated digital input points for AC voltage monitoring. - Is this module suitable for hazardous locations?
Yes, it is approved for operation in hazardous industrial environments. - What mounting options are available?
It supports both DIN rail mounting and screw mounting for flexible installation. - What is the operating temperature range?
It operates reliably in temperatures from 0 to 55 degrees Celsius.
Compare With Similar Products
See how it compares to other Flex I/O modules:
• Allen-Bradley 1794-IT8 Thermocouple Input Module
• Allen-Bradley 1794-OB16P Output Module
