Product Overview: Reliable Digital Input for Critical Systems

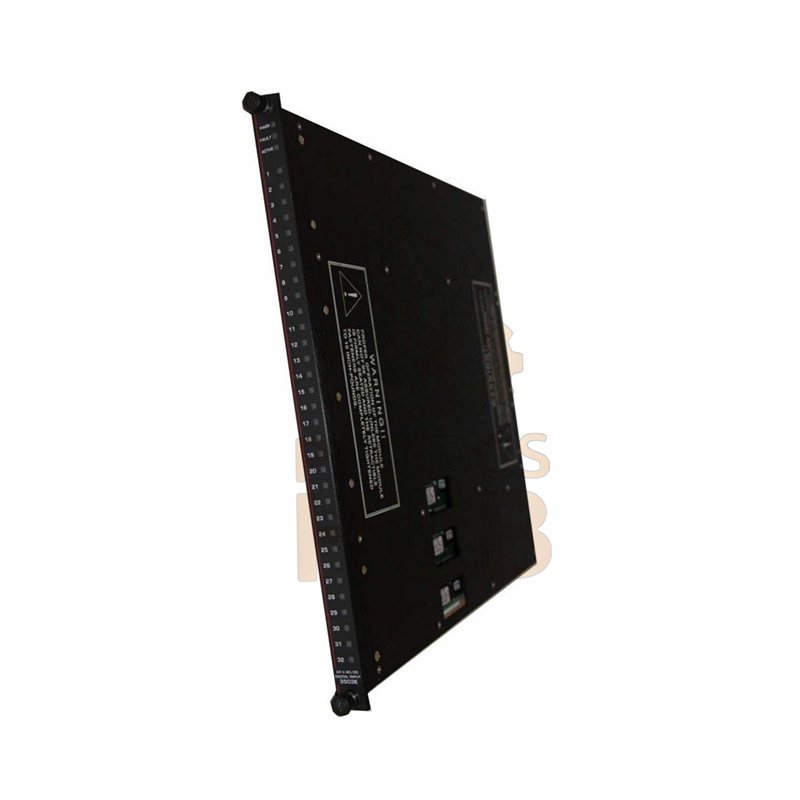

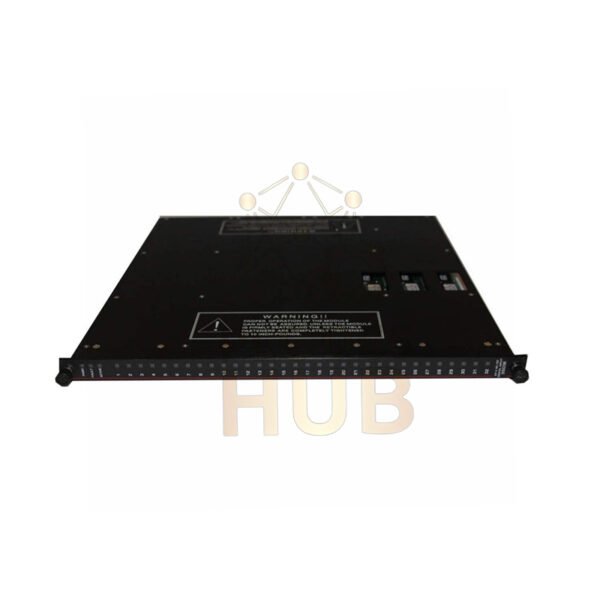

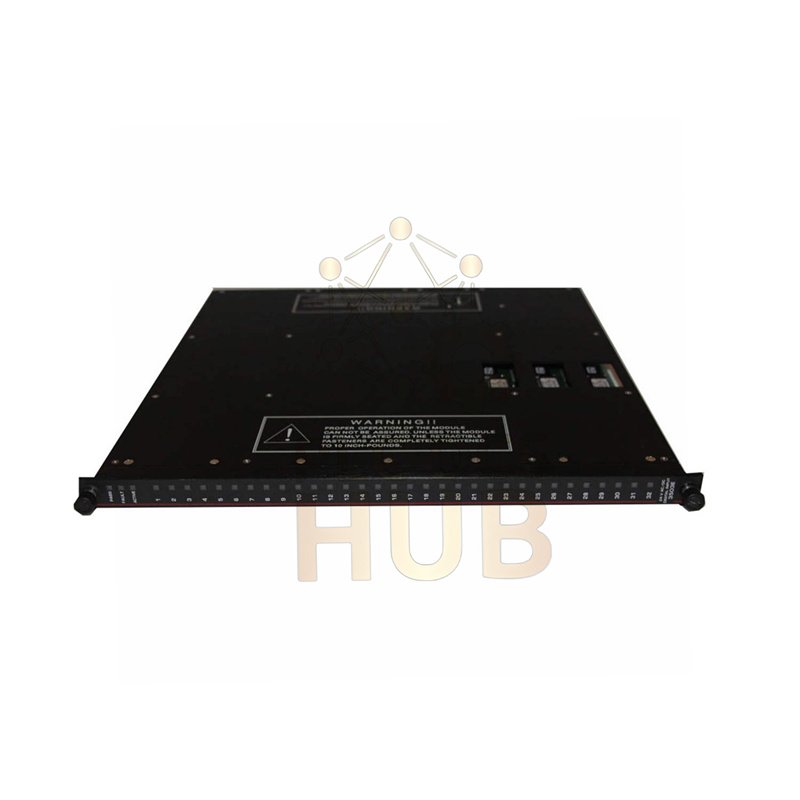

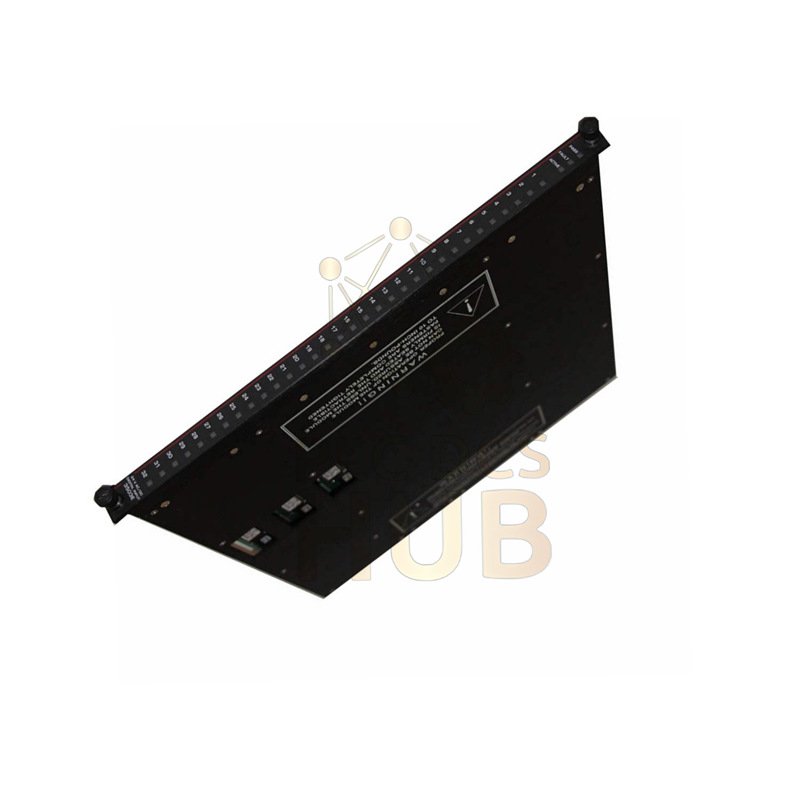

The Triconex 3502E is a high-density digital input module. It provides 32 isolated channels for safety systems. This module accepts a wide range of industrial control signals. It ensures reliable operation in demanding environments. Perfect for turbine control and fire & gas systems.
Key Technical Data & Specifications
- Brand & Model: Triconex 3502E
- Module Type: Digital Input (DI)
- Input Channels: 32 channels
- Operating Voltage: 48V AC/DC
- Input Range: 40V to 52V AC/DC
- Input Current: 5 mA (typical)
- Isolation Voltage: 1500V AC (channel to logic)
- Input Impedance: 10 kΩ (typical)
- Temperature Range: Standard industrial rating
- Environmental Durability: Robust design for harsh conditions
- Noise Immunity: High抗干扰能力 for stable signals
Installation & Integration
- Follow the Triconex system chassis manual.
- Ensure proper voltage levels before powering.
- Module slides easily into the designated slot.
- Secure the module with the chassis screws.
- Connection is simple with labeled terminal points.
Certifications & Quality Assurance
This product meets strict industrial safety standards. It is designed and manufactured in the USA.
Package Contents & Warranty
- One (1) Triconex 3502E Digital Input Module.
- We provide a 12-month warranty from shipment date.
Shipping & Delivery Options
We ship worldwide using reliable carriers. You can choose FedEx, UPS, or DHL. Tracking information is provided immediately.
Typical Applications
- Emergency Shutdown (ESD) Systems
- Fire and Gas Detection Systems
- Turbine and Machinery Control
- Critical Process Shutdown Logic
Advanced Diagnostics & Health Monitoring
The module continuously checks input circuit health. It reports channel faults to the main controller. LED indicators show power and communication status. This enables fast troubleshooting and reduces downtime.
Frequently Asked Questions (FAQ)
What is the main use for this module?
It reads on/off signals from field devices into a Triconex safety controller.
Can I use it with a 24V DC signal?
No. The module needs a voltage between 40V and 52V AC/DC to register correctly.
How do I know if a channel fails?
The system software will show a fault. You can then check the field device and wiring.
Is hot-swapping supported?
Yes, you can replace the module while the system is running. Follow proper procedures.
From experience, what is a common wiring mistake?
Using wire that is too thin for long distances. This can cause voltage drop and false readings.
Any tips for handling noise in the plant?
Always use shielded cable. Ground the shield at one end only, usually at the system cabinet.
