Description
Product Overview

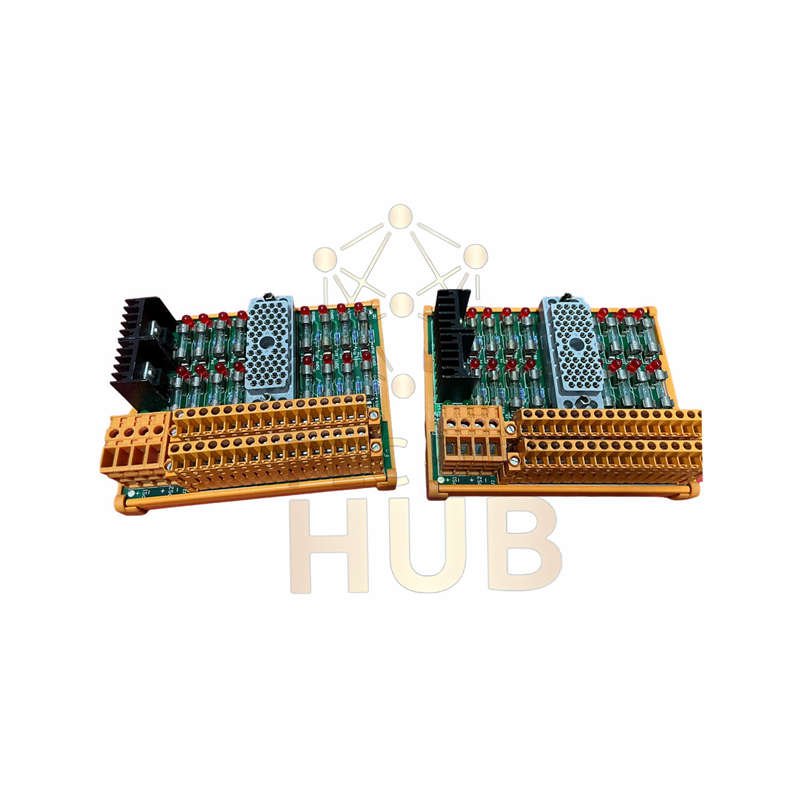

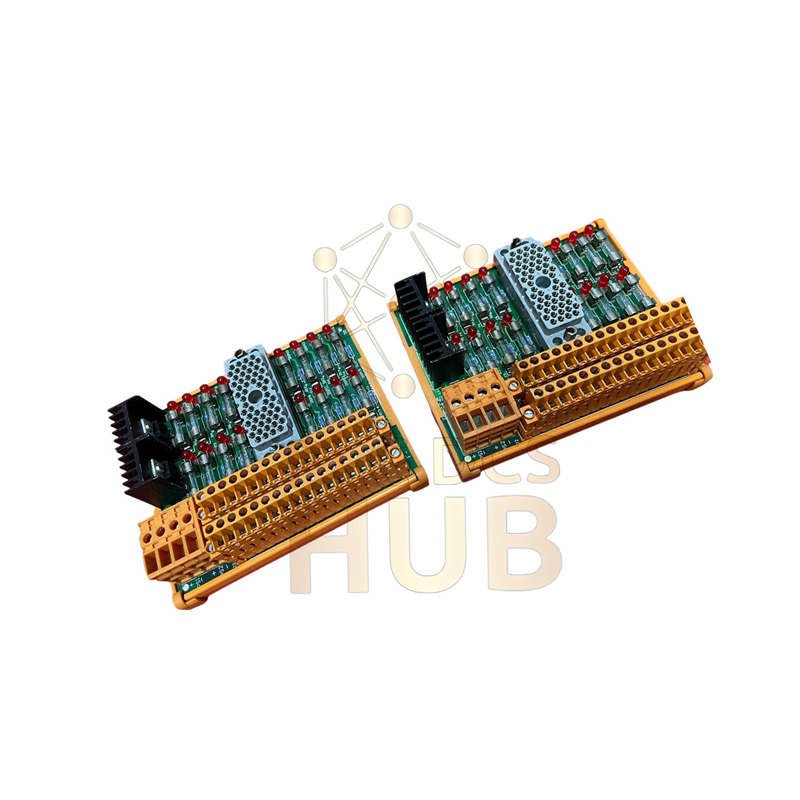

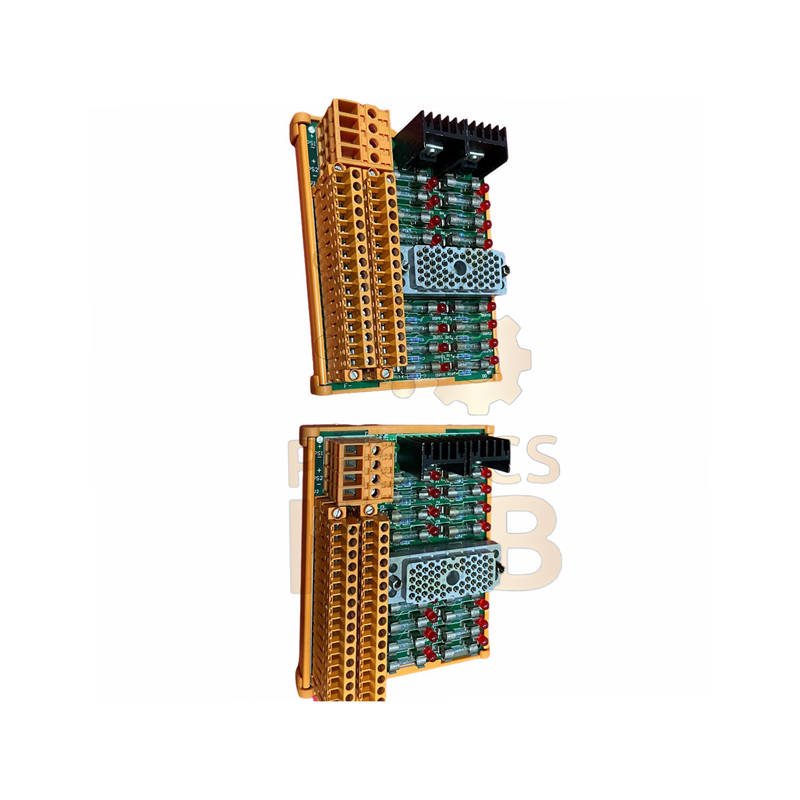

The Triconex 9662-810 external termination panel organizes and protects your control system wiring. This unit provides 16 commoned connection points for 24VDC signals. Integrated fuse protection ensures safety and reliability.
Complete Technical Data
- Brand: Triconex
- Model: 9662-810
- Type: External Termination Panel
- Voltage: 24 VDC
- Configuration: Commoned
- Points: 16
- Fuse Protection: Yes
- Temperature Range: Standard industrial
- Environmental Rating: Harsh duty
- Noise Immunity: High
Key Features & Benefits
- Easy Installation with clear terminal markings
- Quick Maintenance via accessible fuse holders
- Wide Compatibility with industrial control systems
- Simple Diagnostics through visual indicators
- Industrial Certifications for safety compliance
Package & Support
- Triconex 9662-810 Termination Panel
- Installation documentation
- 12-Month Warranty included
- Global shipping via FedEx, UPS, DHL
Typical Applications
- Safety Instrumented Systems (SIS) interfacing
- Turbine and compressor control wiring
- Fire and gas system connections
- Maintenance and test point panels
Frequently Asked Questions
General Questions
What does this panel do?
It provides protected terminal points for 24VDC field device connections.
How many connections are available?
The panel supports 16 individual signal connections.
Technical Questions
Is this panel only for Triconex systems?
No, it works with any system using 24VDC signals.
What’s a good installation practice?
Label all wires at both ends before connecting them.
How do I troubleshoot a faulty channel?
First check the fuse, then verify field device power.
Purchasing Guide
When should I choose this model?
Select this for 24VDC commoned applications needing 16 points with fuses.
What else do I need to order?
Purchase appropriate fuses and signal cables for your specific devices.
