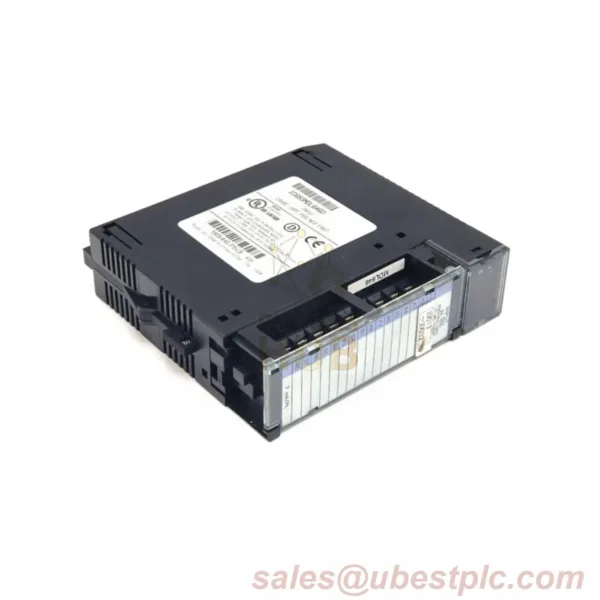

Digital I/O Module IC693MDL732 GE Fanuc Series 90-30

Description

GE Fanuc IC693MDL732 – High-Speed DC Output Module

Core Specifications for IC693MDL732

• ⚡ Outputs: 8 channels (0.5A/point max)
• ⏱️ Speed: 2ms ON/OFF response time
• ???? Power: 12-24V DC field supply

Technical Data

MODEL: IC693MDL732
├─ Voltage Range: 12-24V DC
├─ Inrush Current: 4.78A (10ms pulse)
├─ Backplane Power: 50mA @5V DC
└─ Status: Discontinued (Legacy systems only)

Industrial Applications

• ???? Factory Automation: Control conveyor belt motors
• ???? Machinery: Activate hydraulic solenoids
• ???? Safety Systems: Emergency stop indicator control

Critical Notes

• ⚠️ Requires:
  • External 12-24V DC power supply
  • Overcurrent protection (no internal fuses)
• ???? Installation:
  • Use Series 90-30 5/10-slot baseplates
  • Allow 25mm clearance for heat dissipation
