Description

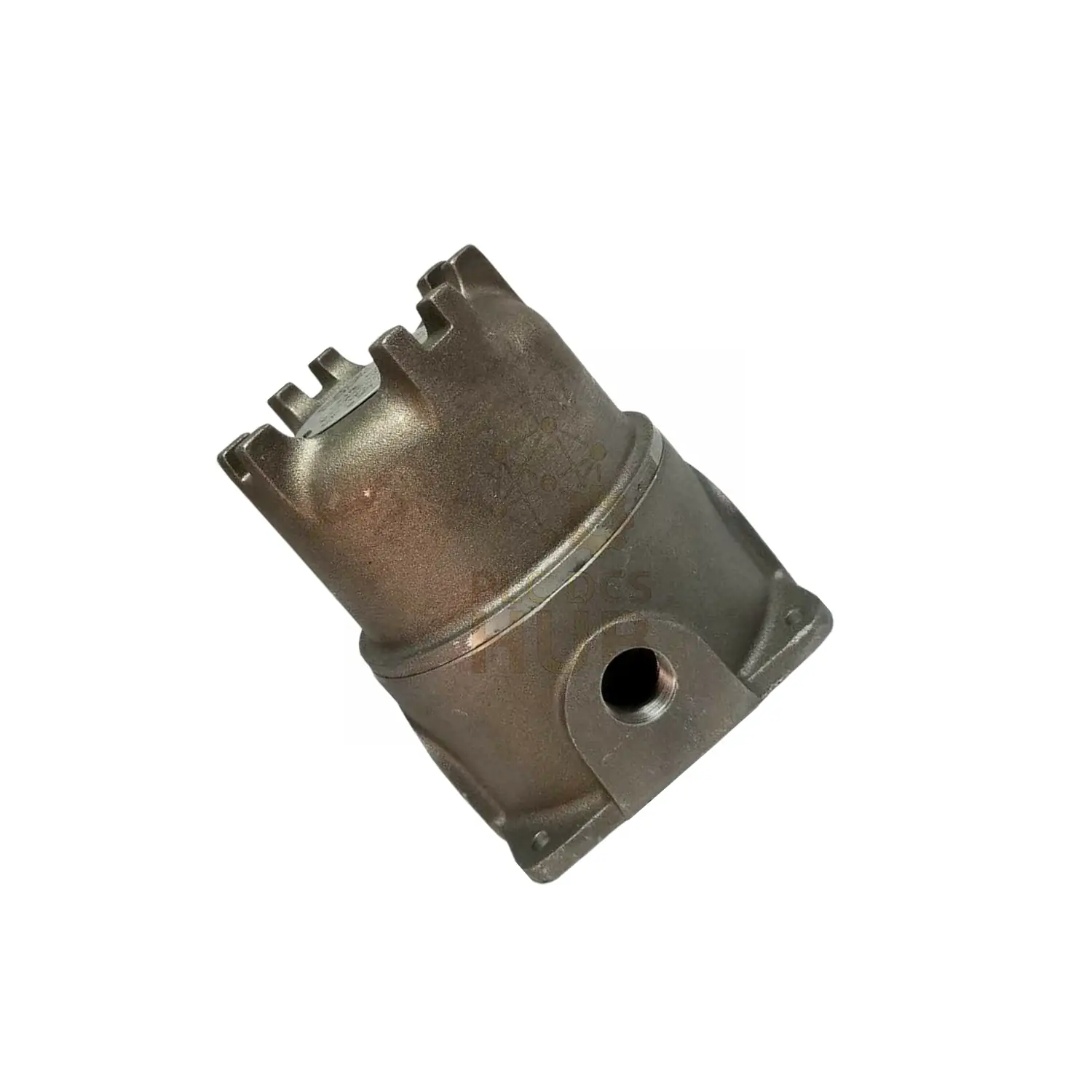

Dual Axial Probe Housing Assembly for Precision Thrust Monitoring
Industrial-grade protection for axial position measurement near thrust bearings. This external housing safeguards probes from dust, liquids, and harsh environments while allowing external adjustments. Fully compliant with API 670 standards.
Technical Specifications
| Brand | Bently Nevada |
| Model | 21022-30-10-017-03 |
| Probe Type | Dual 3300 XL 11mm with connector |
| Cable Length | 1.0 meter (39 in) |
| Penetration Depth | 1.7 inches |
| Housing Material | Copper-free aluminum alloy |
| Sleeve Material | 304 stainless steel |
| Weight | 3.6 kg (8 lb) |
Fittings Kit Includes
Two cable seal grips (for 1/8-3/16 in and 1/4-5/16 in cables) + two 3/4-14 to 1/2-14 NPT reducers. Note: Fittings require field installation.
Shipping & Warranty
Global delivery via FedEx, UPS, or DHL. 12-month manufacturer warranty included.
FAQ
Q: Can I use 0.5m cables?
A: No, 3300 XL 11mm probes require 1.0m cables minimum
Q: Is probe calibration needed?
A: Probes come pre-installed; gap adjustment only required
Q: Mounting requirements?
A: Uses four machine screws + two 3/4-in NPT threaded holes
Q: Works with existing monitoring systems?
A: Yes, compatible with standard Bently Nevada interfaces
