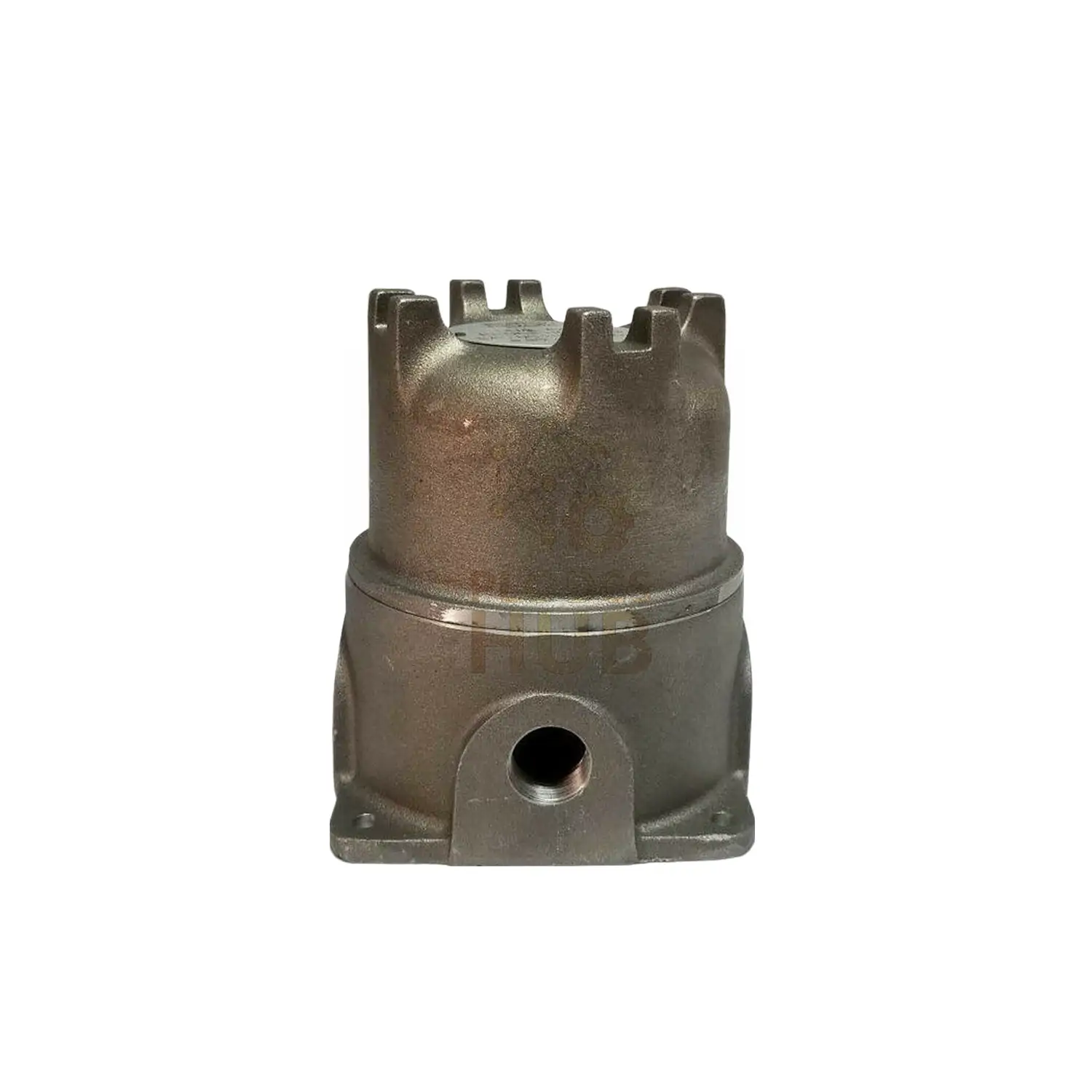

Bently Nevada Dual Axial Probe Housing Assembly – Precision Thrust Monitoring Made Easy
Description
Monitor axial thrust position with industrial-grade reliability using our 21022-29-10-120-02 assembly. Designed for external mounting near thrust bearings, this dual-probe system protects against dust, liquids, and harsh environments. Features API 670 compliance and field-adjustable probes through removable covers.
Technical Data
- Brand: Bently Nevada
- Model: 21022-29-10-120-02 (Full suffix details below)
- Probe: 3300 XL 11mm with connector
- Cable: 1.0 meter (39 in)
- Penetration: 12-inch depth
- Fittings: Two 3/4-14 NPT fittings + plugs
- Housing: Copper-free aluminum alloy
- Sleeves: 304 stainless steel
- Weight: 3.6 kg (8 lb)
Installation Guide
- Mount enclosure using four machine screws
- Install sleeve adapters into 3/4-in NPT ports
- Adjust probe gaps via access cover
- Secure all weatherproof fittings
Compatibility
Works with all 3300 XL monitoring systems. Not compatible with 0.5m probe cables.
Package Contents
- Pre-assembled dual probe housing
- NPT fitting/plug kit (uninstalled)
- Mounting hardware
Warranty & Shipping
12-month warranty. Ships worldwide via FedEx, UPS, DHL from US stock.
FAQ
Q: Is probe calibration included?
A: Probes are pre-installed but require field gap setting.
Q: Minimum cable length available?
A: 1.0m minimum – 0.5m not compatible with 11mm probes.
Q: API 670 compliant?
A: Yes, meets all standard requirements.
